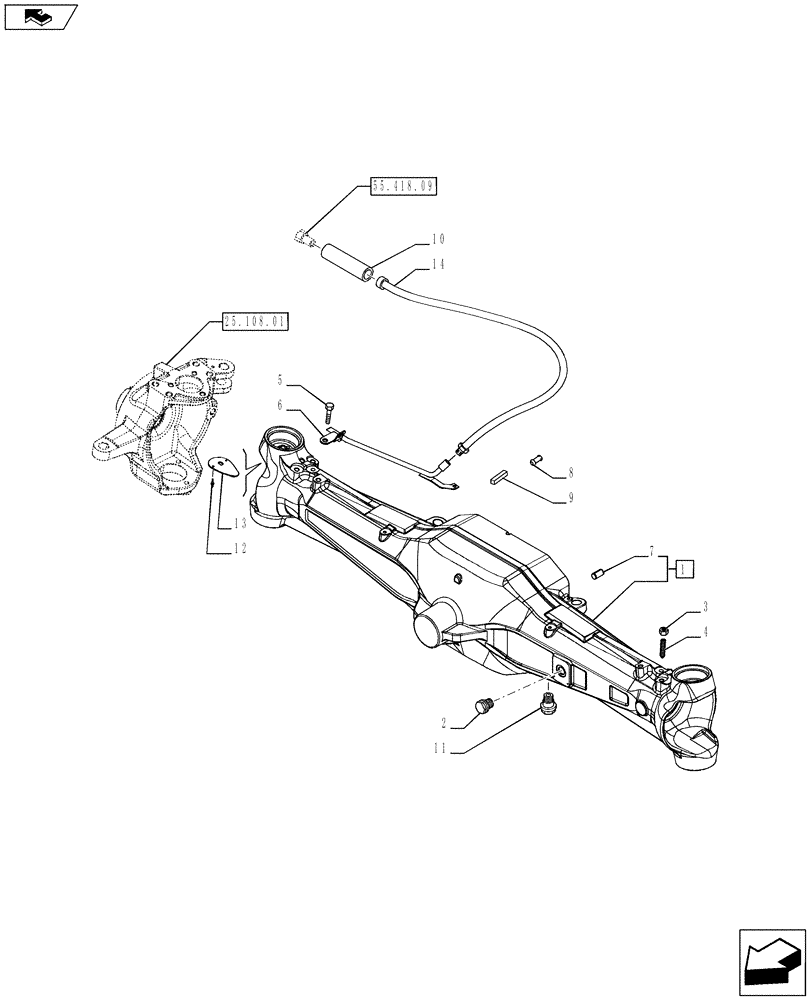

Запчасти Case IH PUMA 170 (25.100.0801[01A]) - 4WD FRONT AXLE WITH ACTIVE SUSPENSIONS - AXLE HOUSING - D7090 (VAR.720463-743963-743964) (25) - FRONT AXLE SYSTEM

1

87633093

AXLE HOUSING

ASSY, Contains Ref. 7

1шт.

2

14324411

MAGNETIC PLUG,M22 x 1.50, Cl 5.8, ZND

1шт.

3

16101511

NUT,M12 x 1.25, Cl 8

2шт.

4

87316865

SET SCREW,M12 x 1.25 x 53mm

2шт.

5

15540324

SCREW,Hex, M12 x 1.25 x 25mm, Cl 8.8, Full Thd

1шт.

6

87717578

HYD TUBE,12 mm OD x 408, 51.7 mm L

1шт.

7

5174376

DOWEL,M16 x 30

2шт.

8

82918419

PLUG

1шт.

9

82918451

SPACER

1шт.

10

87619627

HOSE PROTECTION

1шт.

11

14326211

PLUG,M22 x 1.50, R50, ZND

M22 x 1

1шт.

12

14641591

RIVET,Pop, Truss Hd, M3.20 x 12mm, AL, PLN

2шт.

13

87315098

SHIELD

1шт.

14

87619680

FLEXIBLE SHEATH

1шт.
