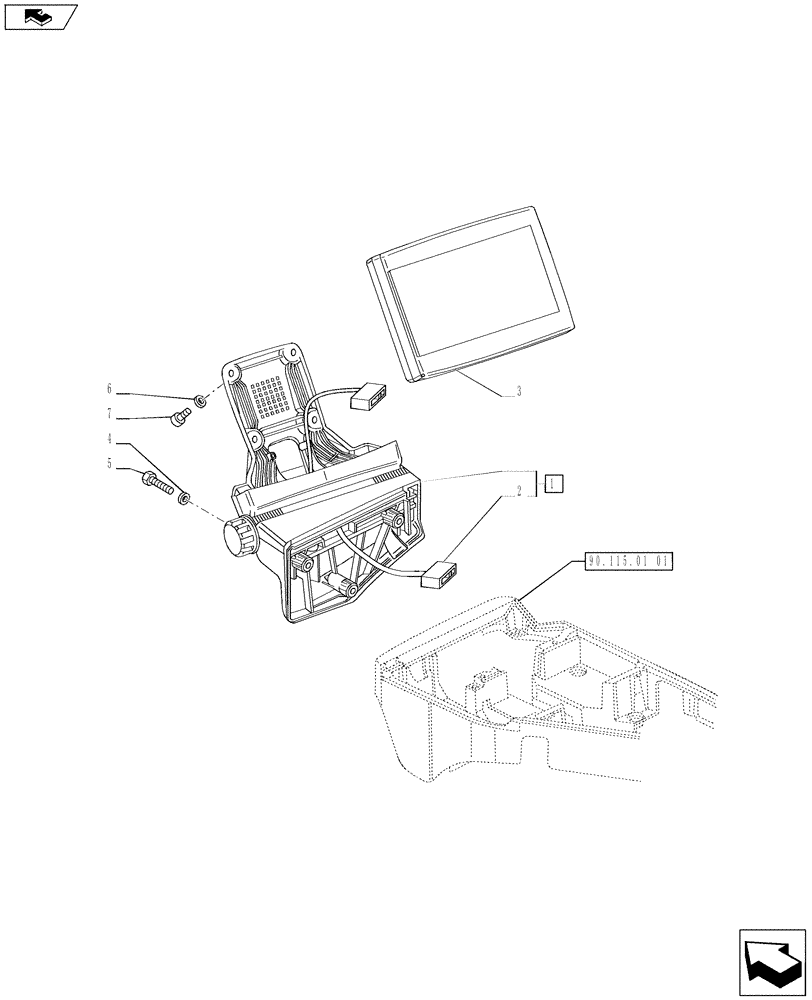

Запчасти Case IH PUMA 170 (55.440.03) - AFS PRO 300 TOUCHSCREEN DISPLAY MOUNTED ON ARMREST - CONTROL DISPLAY (VAR.743445; VAR.728613-743332 / 743609; VAR.743348 / 743610) (55) - ELECTRICAL SYSTEMS

1

87725500

HOLDER

Contains Ref. 2,8

1шт.

2

84228344

HARNESS

1шт.

3

84296834

CONTROL MONITOR

1шт.

4

120104

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

3шт.

5

12647121

WASHER,8.15mm ID x 20mm OD x 3mm Thk

3шт.

6

13276017

SCREW,Pozidriv Pan Hd, M6 x 12mm, Cl 5.8, Full Thd

4шт.

7

10519404

WASHER,6.4mm ID x 11.95mm OD x 1.6mm Thk

4шт.
