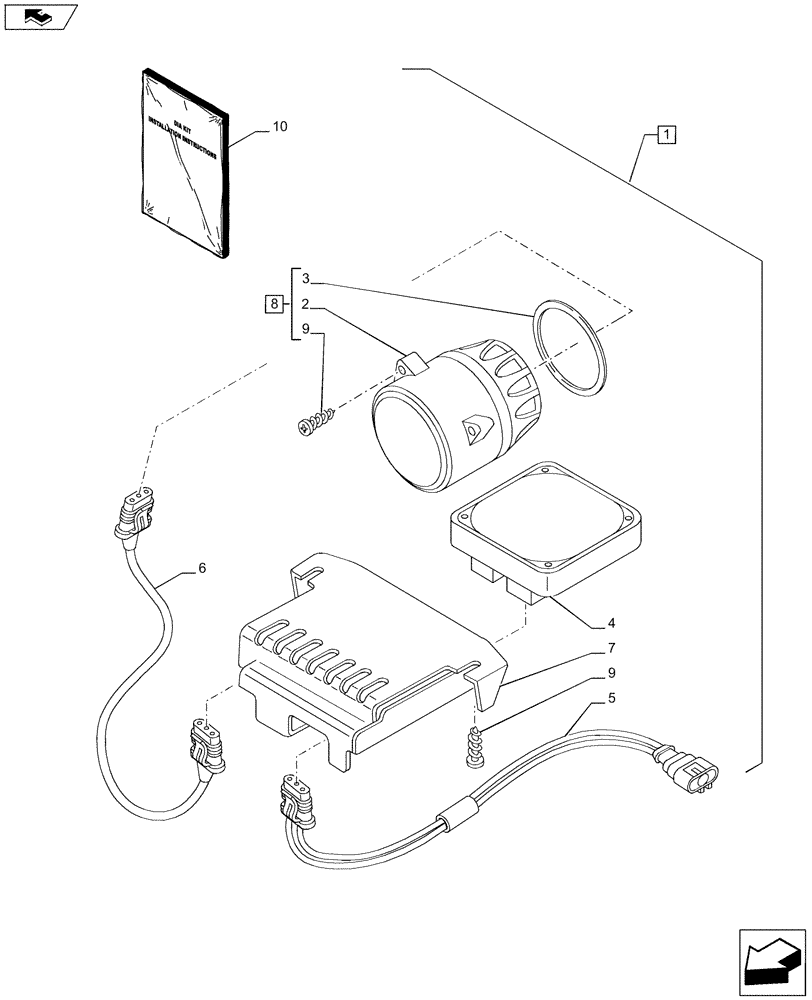

Запчасти Case IH PUMA 200 (88.055.12) - DIA KIT - HOOD HID XENON WORKLIGHTS - WORKLIGHTS (88) - ACCESSORIES

1

718623024

DIA KIT, TRACTOR

Hid Headlamp Kit for Front Hood Mounting, Contains Ref. 2-10 & Installation Instructions

1шт.

Refer to Installation Instructions for Correct Assembly Procedure

1шт.

2

NSS

NOT SOLD SEPARAT

Work Light

1шт.

3

87539118

GASKET

1шт.

4

87539116

TRANSFORMER

Type DSI

1шт.

5

87539120

ELECTRIC CABLE

1шт.

Cable Connection Ballast to GEN 5

1шт.

6

87539119

ELECTRIC CABLE

1шт.

Cable Connection Ballast to Worklamp

1шт.

7

87539117

CONNECTING BLOCK

1шт.

8

87539115

HEADLAMP

HID, Contains Ref. 2,3,9

1шт.

9

87539121

SELF-TAP SCREW

3.5 x 16 INOX

3шт.

10

84138244

INSTRUCTION

1шт.
