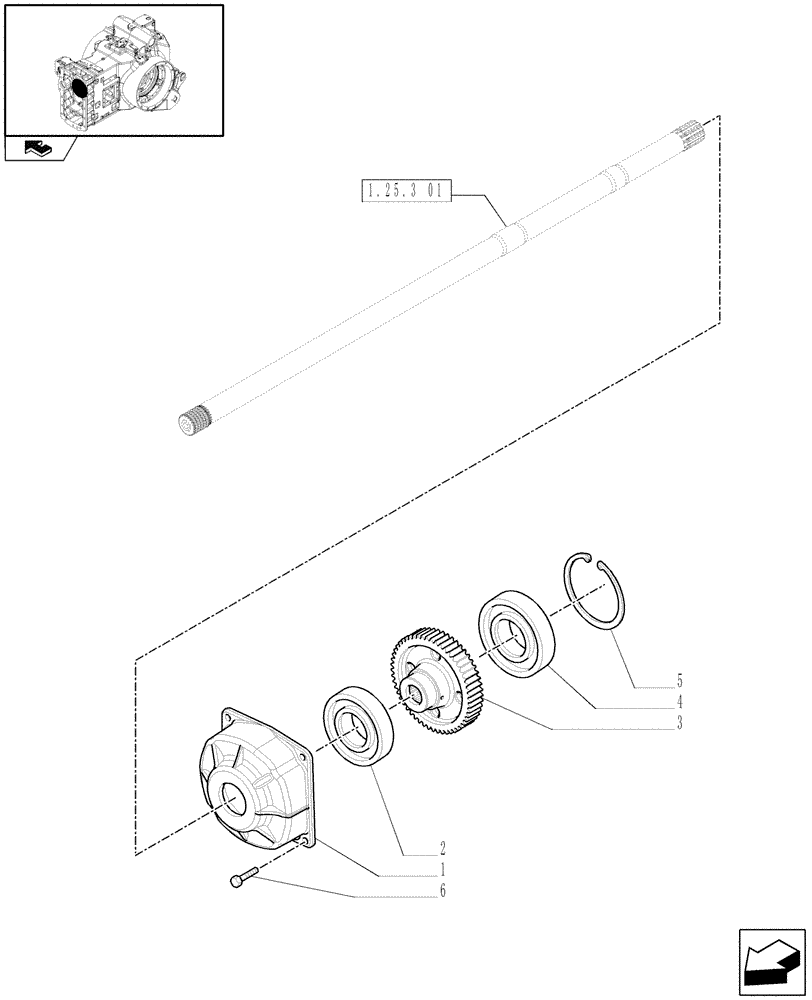

(1.25.3[02]) - TRANSMISSION/PTO INPUT SHAFT - COVER AND GEARS

Запчасти Case IH PUMA 210 (1.25.3[02]) - TRANSMISSION/PTO INPUT SHAFT - COVER AND GEARS (03) - TRANSMISSION

Схема запчастей Case IH PUMA 210 - (1.25.3[02]) - TRANSMISSION/PTO INPUT SHAFT - COVER AND GEARS (03) - TRANSMISSION
5
4
2
6
1
home
1.25.3 01
3
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

87541710

COVER

1шт.

2

87591960

BALL BEARING,50mm ID x 90mm OD x 20mm W

1шт.

3

84185602

DRIVING GEAR

1шт.

4

87591955

BALL BEARING,55mm ID x 100mm OD x 21mm W

1шт.

5

11062976

SNAP RING,Int, M100 x 3

1шт.

6

16043524

SCREW,Hex, M8 x 1.25 x 22mm, Cl 8.8, Full Thd

4шт.

Выбрано товаров: 6
