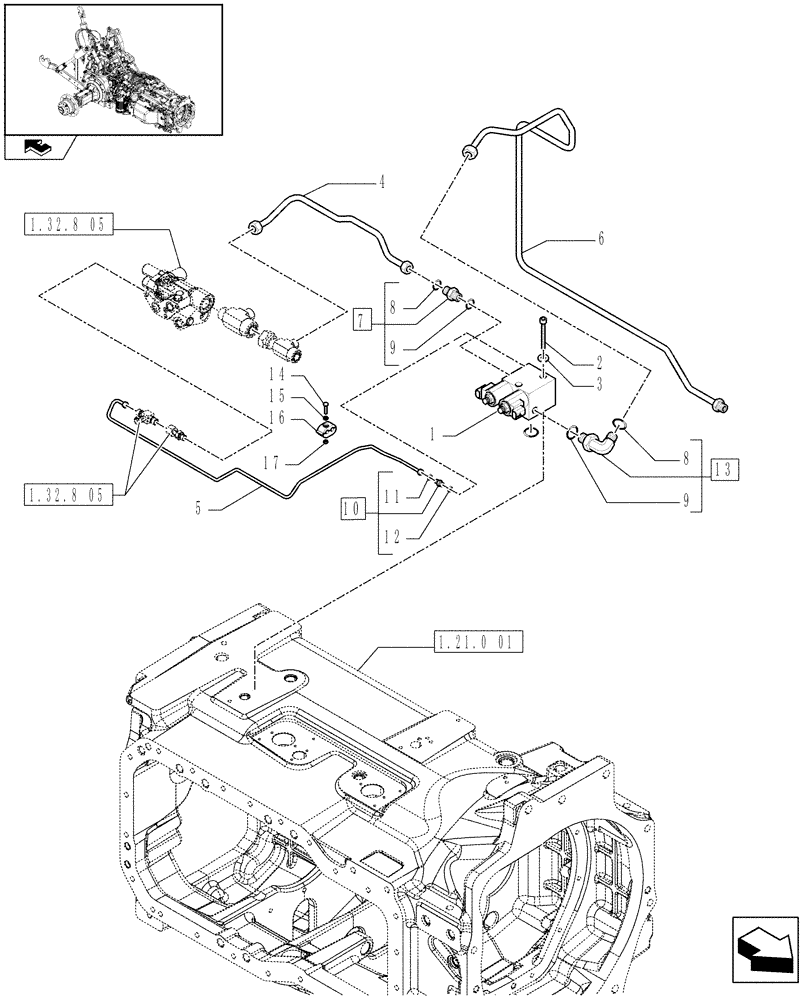

1
87707744
MANIFOLD VALVE
1шт.
2
14309020
HEX SOC SCREW,M8 x 1 x 70mm, Cl 8.8
M8 x 1 x 170
2шт.
3
14499407
WASHER,8.4mm ID x 14mm OD x 1.6mm Thk
8 x 4
2шт.
4
87724324
HYD TUBE
Supplyto Load Levelling
1шт.
5
87718484
HYD TUBE
LS Load Levelling, Serial Range: -C6802
1шт.
5
84326327
HYD TUBE
, Start Serial: D6802
1шт.
6
87676091
PIPE
to Axle Suspension
1шт.
7
86579675
HYD CONNECTOR,13/16"-16 ORFS x M16 x 1.5 ORB
M16 x 1.5
1шт.
8
9992298
O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro
.07 X .489 14 6
2шт.
9
86598100
O-RING,2.2mm Thk x 13.3mm ID, Cl 6, 90 Duro
2.2W x 13.3ID Green
2шт.
10
86593173
HYD CONNECTOR,9/16"-18 ORFS x M12 x 1.5 ORB
M12 x 1.5
1шт.
11
9825770
O-RING,0.07" Thk x 0.301" ID, -11, Cl 6, 90 Duro
.07 x 301 11 6
1шт.
12
86598098
O-RING,2.2mm Thk x 9.3mm ID, Cl 6, 90 Duro
2.2W x 9.3ID Green
1шт.
13
86579690
ELBOW,90 Degree, 13/16"-18 ORFS x M16 x 1.5 ORB
90° M16 x 1.5
1шт.
14
120098
BOLT,Hex, M5 x 20, 8.8, Full Thd
, Start Serial: D6802
1шт.
15
12638101
WASHER,5.2mm ID x 14mm OD x 1mm Thk
, Start Serial: D6802
1шт.
16
87738904
CLAMP BRACKET
, Start Serial: D6802
1шт.
17
12574115
NUT
, Start Serial: D6802
1шт.
