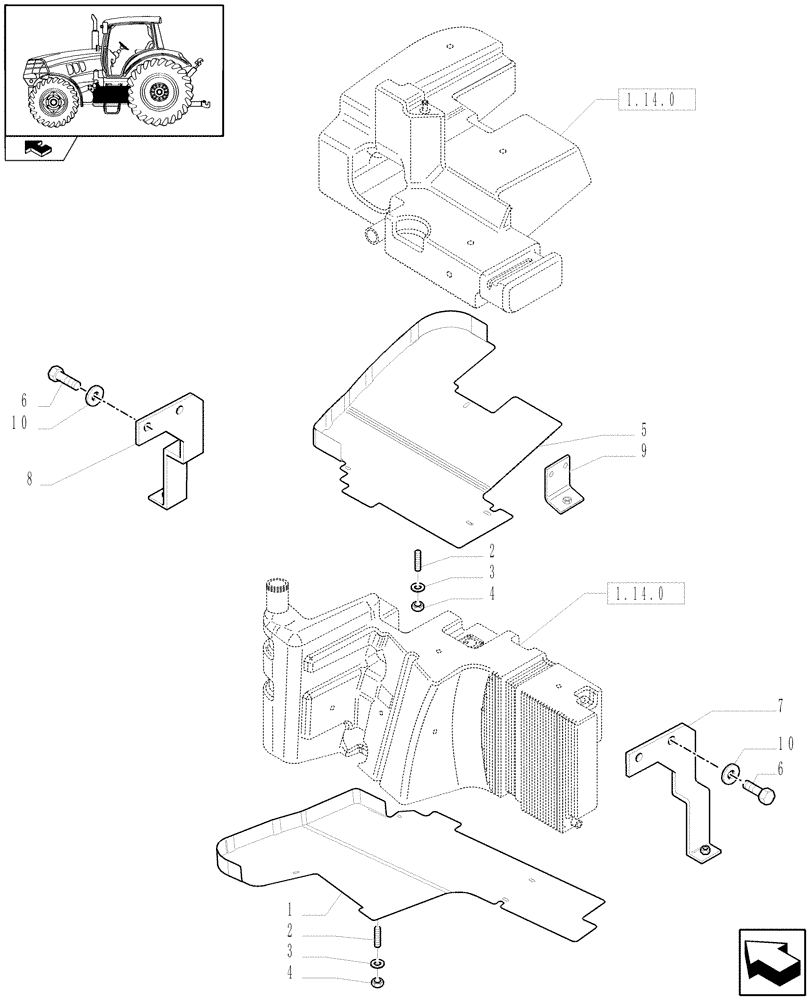

Запчасти Case IH PUMA 210 (1.14.7/01) - (VAR.131) FUEL TANK GUARDS (02) - ENGINE EQUIPMENT

1

87543112

SHIELD

1шт.

2

82008683

STUD,M10 x 1.25 x 40mm L

8шт.

3

12626201

WASHER,10.2mm ID x 25mm OD x 3mm Thk

8шт.

4

12577211

LOCK NUT,M10 x 1.5mm Pitch, 12.30mm High, Cl 8, ZND

8шт.

5

87543114

SHIELD

1шт.

6

15540324

SCREW,Hex, M12 x 1.25 x 25mm, Cl 8.8, Full Thd

4шт.

7

87549490

SUPPORT

LH

1шт.

8

87549488

SUPPORT

RH

1шт.

9

87307464

BRACKET

1шт.

10

14496704

WASHER,13mm ID x 24mm OD x 2.5mm Thk

4шт.
