(21.506.BC) - VAR - 391138, 758022 - TRANSMISSION, OIL FILTER

Запчасти Case IH PUMA 165 CVT (21.506.BC) - VAR - 391138, 758022 - TRANSMISSION, OIL FILTER (21) - TRANSMISSION

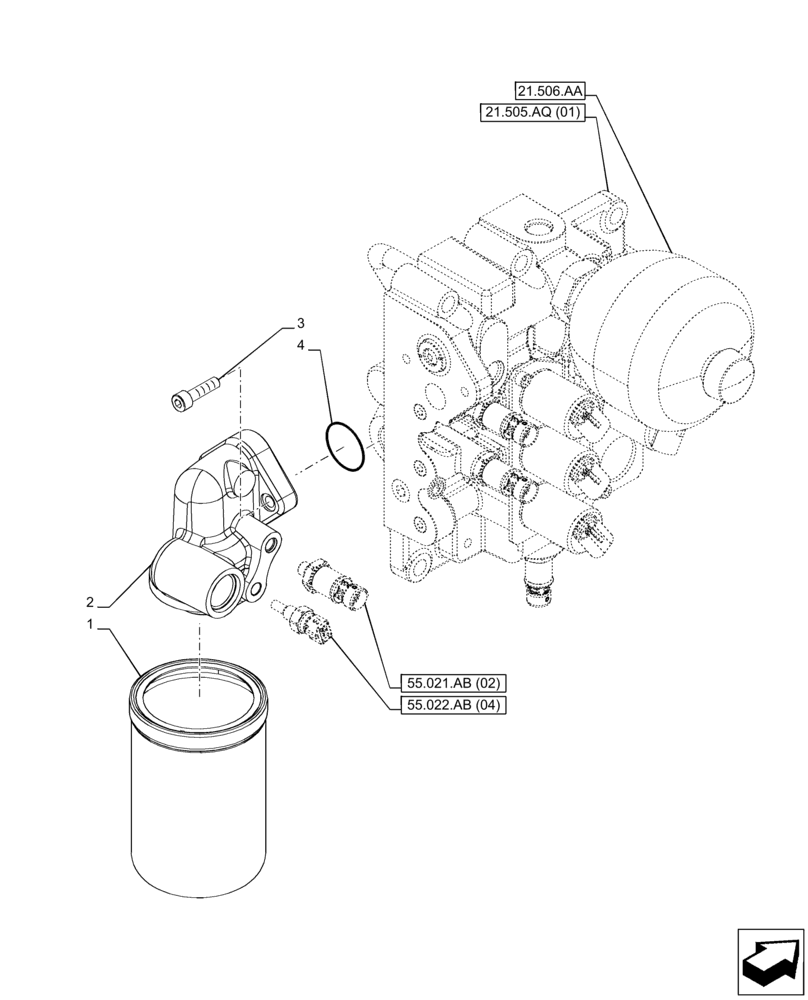

Схема запчастей Case IH PUMA 165 CVT - (21.506.BC) - VAR - 391138, 758022 - TRANSMISSION, OIL FILTER (21) - TRANSMISSION
1
3
4
21.505.aq (01)
55.022.ab (04)
55.021.ab (02)
21.506.aa
2
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

87588814

HYDRAULIC OIL FILTER,151mm L

on Transmission Contro Valve, 151mm

1шт.

2

84423350

FILTER HEAD

1шт.

3

14306520

HEX SOC SCREW,M8 x 1.25 x 30mm, Cl 8.8, Full Thd

2шт.

4

86629540

O-RING,0.139" Thk x 0.984" ID, -214, Cl 5, 75 Duro

2шт.
