(37.120.AX[01]) - VAR - 391170, 758075 - 3 HITCH POINT, SUPPORT (CAT 2/3, QUICK ATTACH ENDS)

Запчасти Case IH PUMA 165 CVT (37.120.AX[01]) - VAR - 391170, 758075 - 3 HITCH POINT, SUPPORT (CAT 2/3, QUICK ATTACH ENDS) (37) - HITCHES, DRAWBARS & IMPLEMENT COUPLINGS

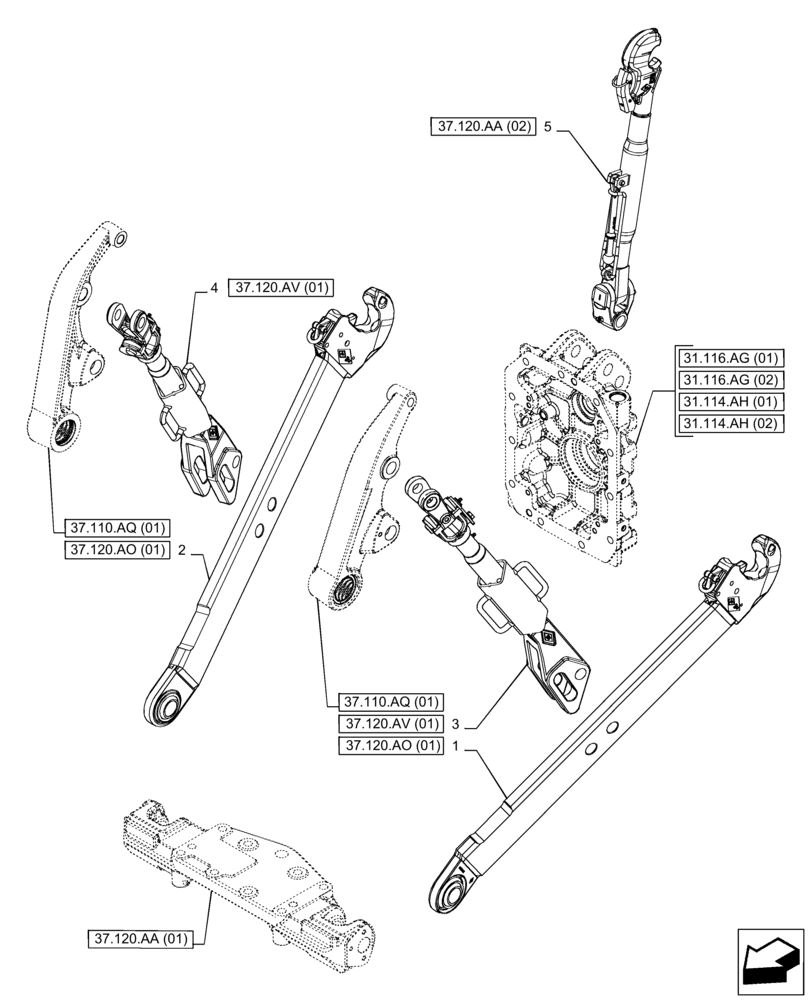

Схема запчастей Case IH PUMA 165 CVT - (37.120.AX[01]) - VAR - 391170, 758075 - 3 HITCH POINT, SUPPORT (CAT 2/3, QUICK ATTACH ENDS) (37) - HITCHES, DRAWBARS & IMPLEMENT COUPLINGS
5
31.114.ah (01)
4
37.120.av (01)
37.120.aa (02)
31.116.ag (02)
37.120.ao (01)
37.120.aa (01)
37.110.aq (01)
31.114.ah (02)
3
37.120.av (01)
1
37.120.ao (01)
2
37.110.aq (01)
31.116.ag (01)
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

87377617

LOWER LINK

LH

1шт.

2

87377616

LOWER LINK

RH

1шт.

3

87377623

LIFT LINK

LH

1шт.

4

87377622

LIFT LINK

RH

1шт.

5

84517031

UPPER LINK

1шт.
