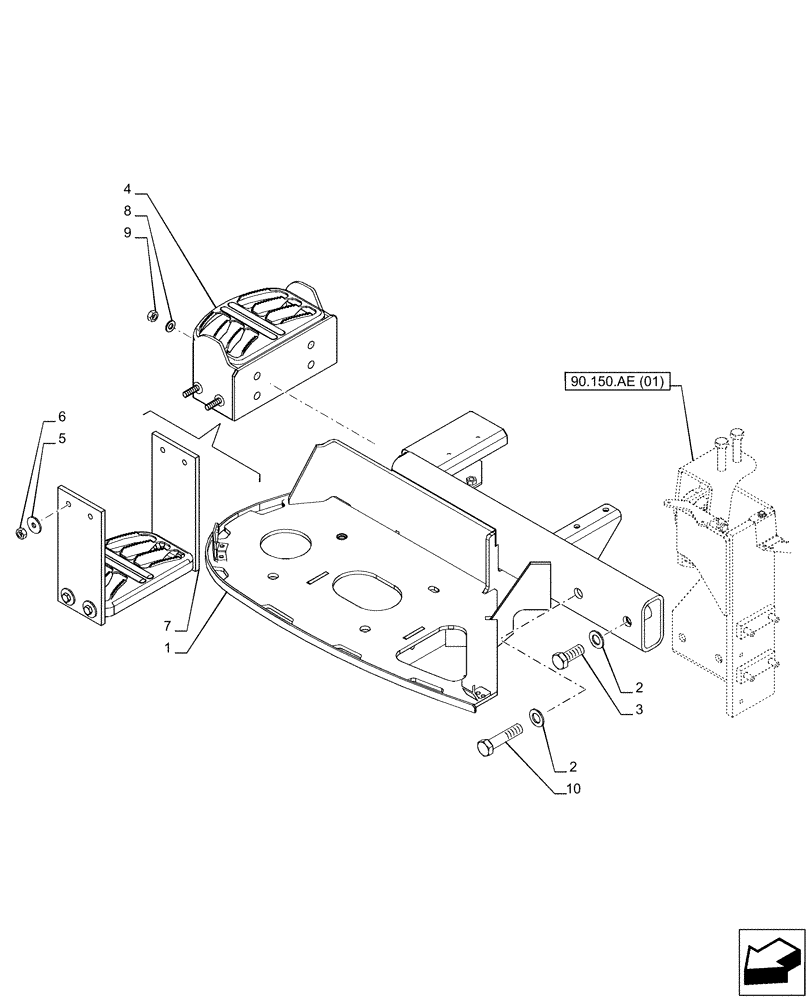

Запчасти Case IH PUMA 165 CVT (90.118.BX[02]) - LADDER, RH (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

47575619

BEAM

RH

1шт.

2

14497101

WASHER,M20 x 37 x 3

2шт.

3

9847023

BOLT,Hex, M20 x 2.5 x 50mm, Cl 8.8, Full Thd

1шт.

4

84370539

STEP

RH, Lower

1шт.

5

12644304

WASHER,10.2mm ID x 35mm OD x 3mm Thk

4шт.

6

11701711

NUT,Hex, M10, Cl 8, ZND

4шт.

7

84380978

FOOT BOARD

RH, Lower

1шт.

8

12646704

WASHER,8.15mm ID x 20mm OD x 2mm Thk

4шт.

9

9706690

NUT,M8 x 1.25, Cl 8

4шт.

10

395528

BOLT,Hex, M20 x 2.5 x 100mm, Cl 8.8

1шт.
