(25.102.AT[04]) - VAR - 758045, 758046 - SUSPENDED FRONT AXLE, DIFFERENTIAL LOCK, LINE

Запчасти Case IH PUMA 165 CVT (25.102.AT[04]) - VAR - 758045, 758046 - SUSPENDED FRONT AXLE, DIFFERENTIAL LOCK, LINE (25) - FRONT AXLE SYSTEM

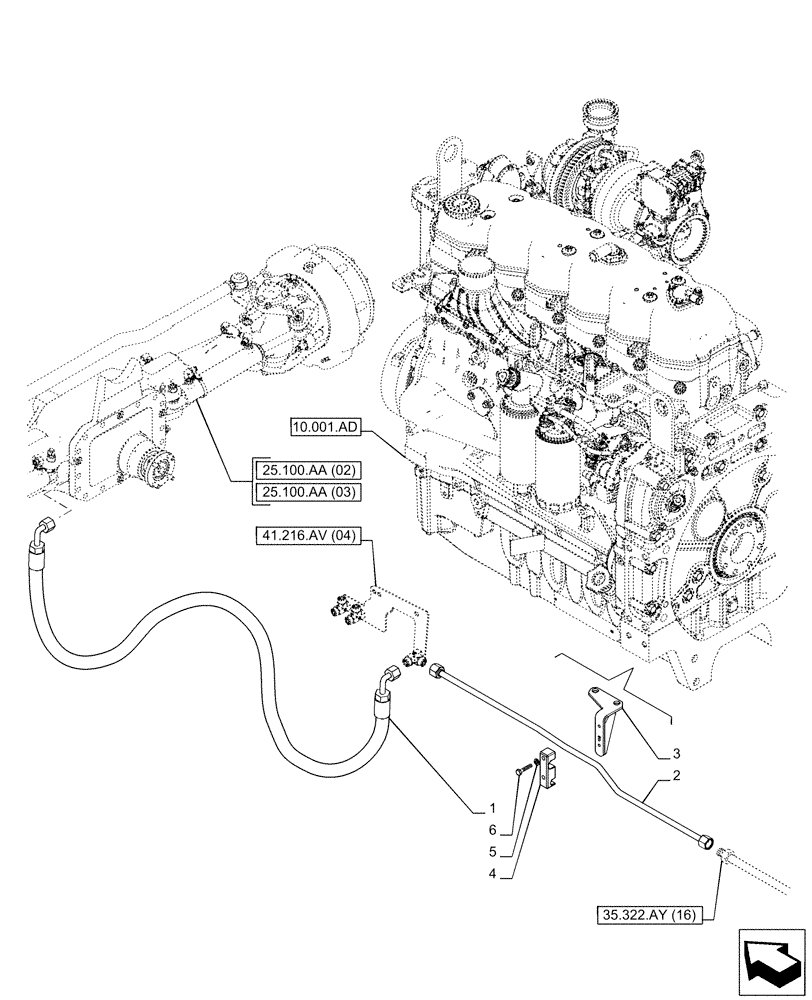

Схема запчастей Case IH PUMA 165 CVT - (25.102.AT[04]) - VAR - 758045, 758046 - SUSPENDED FRONT AXLE, DIFFERENTIAL LOCK, LINE (25) - FRONT AXLE SYSTEM
25.100.aa (03)
6
3
1
2
5
4
25.100.aa (02)
10.001.ad
41.216.av (04)
35.322.ay (16)
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

82036783

FLEXIBLE HOSE,9.53mm ID x 580mm L, SAE 100R2

Differential Lock Suspended Axle

1шт.

2

87702717

TUBE

1шт.

3

47475527

BRACKET

1шт.

4

82029228

CLAMP,2 Hoses

1шт.

5

14496401

WASHER,M6.4 x 12.00mm x 1.60mm

2шт.

6

16050621

SCREW,Hex, M6 x 30mm, Cl 8.8, Full Thd

2шт.
