(90.124.AM[01]) - VAR - 391176, 758255, 758256 - DRIVER SEAT, FRAME

Запчасти Case IH PUMA 185 CVT (90.124.AM[01]) - VAR - 391176, 758255, 758256 - DRIVER SEAT, FRAME (90) - PLATFORM, CAB, BODYWORK AND DECALS

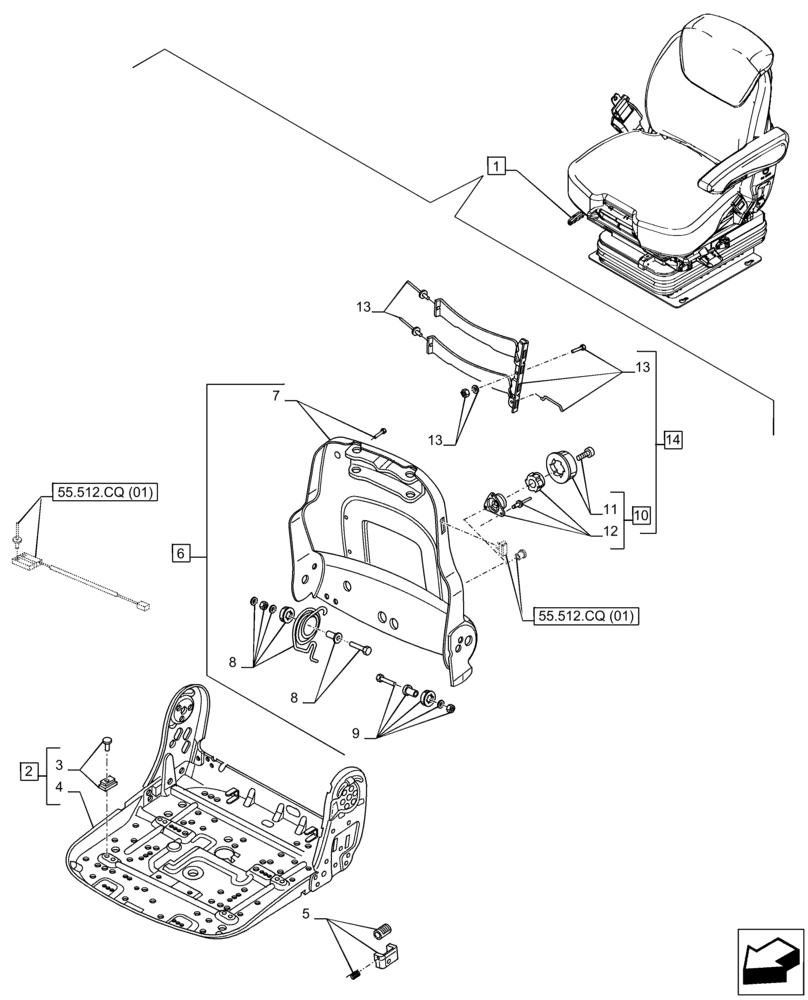

Схема запчастей Case IH PUMA 185 CVT - (90.124.AM[01]) - VAR - 391176, 758255, 758256 - DRIVER SEAT, FRAME (90) - PLATFORM, CAB, BODYWORK AND DECALS
3
6
4
55.512.cq (01)
10
55.512.cq (01)
13
8
14
8
11
13
7
13
5
2
9
12
1
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

84215889

DRIVER SEAT

W/Air Suspension, ASSY, Incl 2 - 14

1шт.

See Driver Seat Components also in Figure 55.512.CQ (01), 90.124.AD (01), 90.124.AE (01), 90.124.AH (01)

1шт.

See Driver Seat Components also in Figure 90.124.AK (01) (02) (03), 90.124.AL (01), 90.151.AD (01)

1шт.

2

84191188

REPAIR KIT

Assy, Incl 3, 4

1шт.

3

84191178

SET OF PARTS

Glide Seat

1шт.

4

NSS

NOT SOLD SEPARAT

Support, Incl in 2

1шт.

5

82034946

SERVICE KIT

1шт.

6

84191121

BACKREST

ASSY, Incl 7 - 9

1шт.

7

NSS

NOT SOLD SEPARAT

Backrest, Incl in 6

1шт.

8

84191131

SET OF PARTS

Scissor

1шт.

9

84191196

SET OF PARTS

Scissor

1шт.

10

84191199

ACTUATOR

ASSY, Incl 11, 12

1шт.

11

82034964

HANDLE

1шт.

12

NSS

NOT SOLD SEPARAT

Actuator, Incl in 10

1шт.

13

NSS

NOT SOLD SEPARAT

Lumbar Support, Incl in 14

1шт.

14

345767A1

SUPPORT

ASSY, Incl 10 - 13

1шт.
