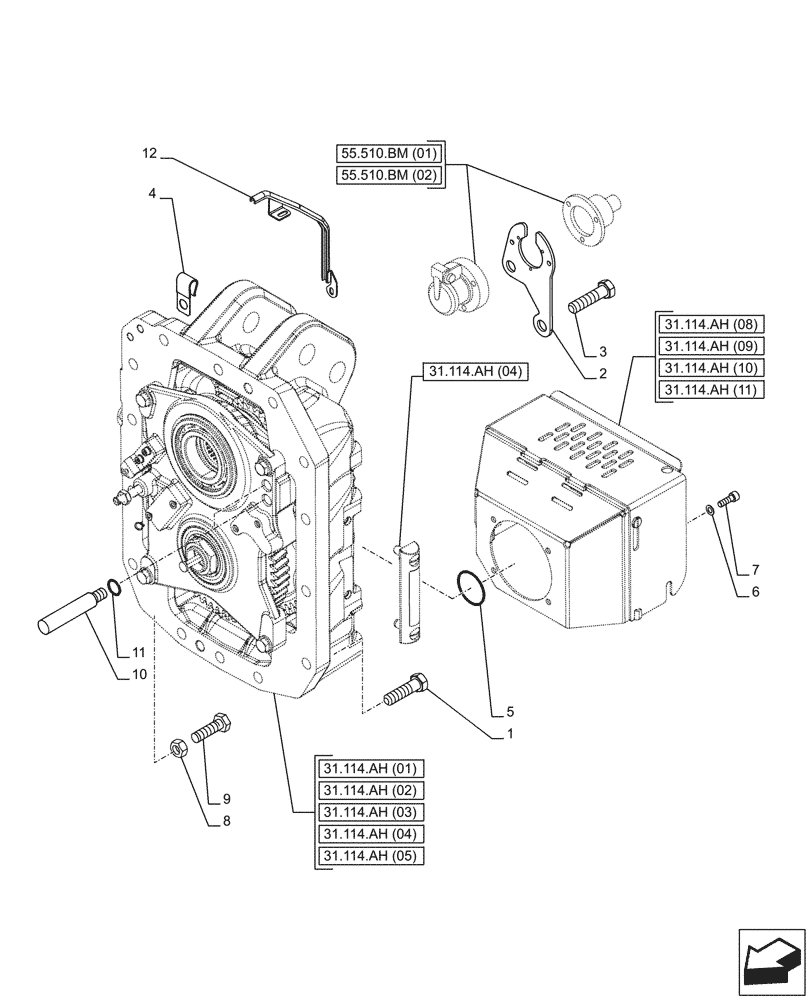

Запчасти Case IH PUMA 185 CVT (31.114.AH[06]) - VAR - 391141, 391145, 758025, 758028, 758031, 758032 - PTO, HOUSING (31) - IMPLEMENT POWER TAKE OFF

1

15981124

BOLT,Hex, M16 x 1.5 x 60mm, Cl 8.8

12шт.

2

87692482

BRACKET

Trailer Socket

1шт.

3

15981224

BOLT,Hex, M16 x 1.5 x 65mm, Cl 8.8

2шт.

4

85700737

CLAMP,6.86mm ID, 14.99mm Bolt Hole, J Type

1шт.

5

14459881

O-RING,2.237" ID x 2.443" OD x 0.103"

1шт.

6

10569374

LOCK WASHER,M8

4шт.

7

14306424

HEX SOC SCREW,M8 x 1.25 x 25mm, Cl 8.8, Full Thd

4шт.

8

12574211

NUT,M6 x 1, Cl 8

1шт.

9

10903234

BOLT,Hex, M6 x 40mm, Cl 10.9

1шт.

10

84226973

HYD TUBE,10 mm ID x 20 mm OD x 80.5 mm L

2шт.

11

14453182

O-RING,0.07" Thk x 0.489" ID, -14, Cl 9, 70 Duro

2шт.

12

84250687

GUARD

1шт.

PTO 540E/1000 Interchangeable Shafts, Var.332417 (758032)

1шт.
