(31.114.AH[09]) - VAR - 758100, 758101, 758102, 758103 - PTO, HOUSING & COVERS

Запчасти Case IH PUMA 185 CVT (31.114.AH[09]) - VAR - 758100, 758101, 758102, 758103 - PTO, HOUSING & COVERS (31) - IMPLEMENT POWER TAKE OFF

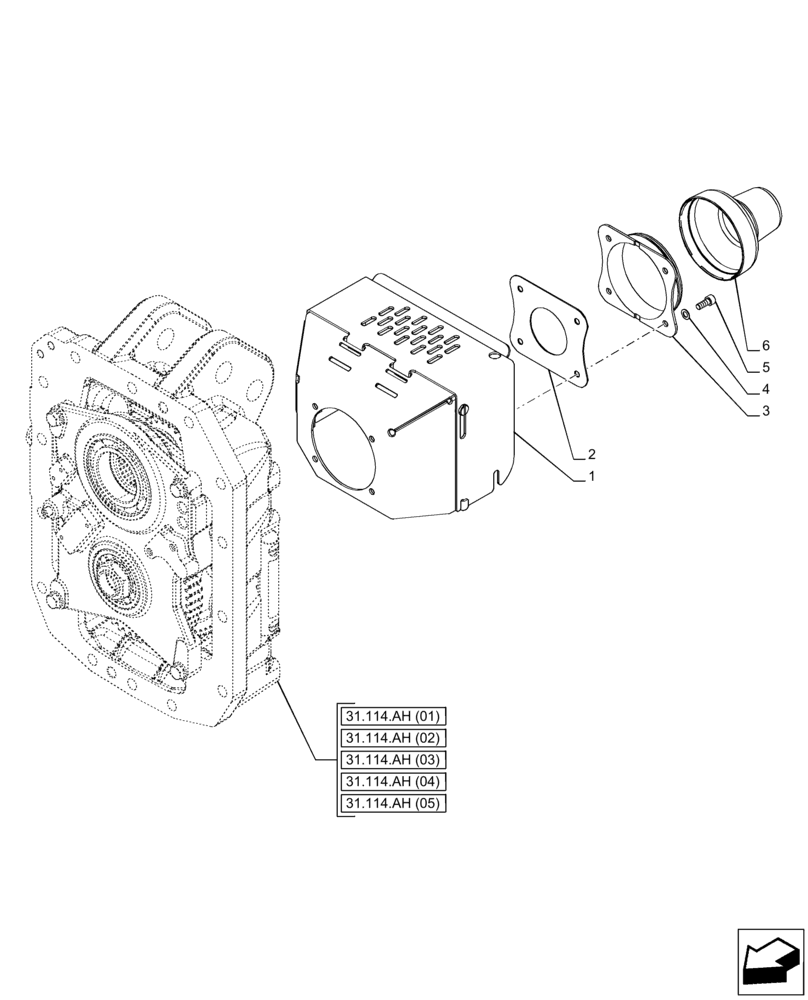

Схема запчастей Case IH PUMA 185 CVT - (31.114.AH[09]) - VAR - 758100, 758101, 758102, 758103 - PTO, HOUSING & COVERS (31) - IMPLEMENT POWER TAKE OFF
2
31.114.ah (02)
31.114.ah (03)
4
5
31.114.ah (01)
31.114.ah (04)
3
6
31.114.ah (05)
1
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

84568331

COVER

1шт.

2

47131825

GUARD

1шт.

3

5155332

SEAL PROTECTION,115mm ID x 122mm OD x 29mm Thk

1шт.

4

12601374

WAVE WASHER,Wave, 8.40mm ID x 15.00mm OD x 0.80mm, 3.00mm, CST, DAC

4шт.

5

14306324

HEX SOC SCREW,M8 x 1.25 x 20mm, Cl 8.8, Full Thd

4шт.

6

47125899

COVER,109mm L

1шт.
