(10.400.AK) - VAR - 391130, 758000 - EXPANSION TANK, HOSE

Запчасти Case IH PUMA 185 CVT (10.400.AK) - VAR - 391130, 758000 - EXPANSION TANK, HOSE (10) - ENGINE

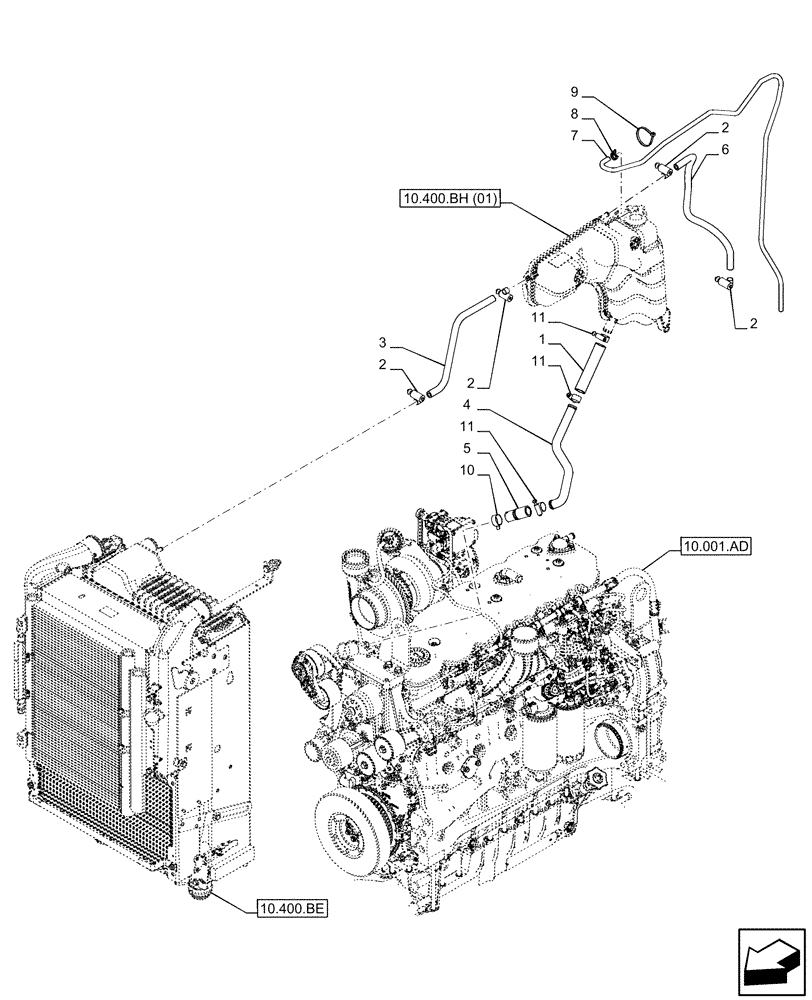

Схема запчастей Case IH PUMA 185 CVT - (10.400.AK) - VAR - 391130, 758000 - EXPANSION TANK, HOSE (10) - ENGINE
10.400.be
8
11
1
7
11
2
4
11
2
9
2
6
10
2
3
5
10.400.bh (01)
10.001.ad
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

47584625

PIPE

1шт.

2

87313783

CLAMP,10mm - 16mm, Worm Gear

4шт.

3

84583541

RADIATOR HOSE

325mm, Hose from Expansion Tank to Radiator

1шт.

4

47736667

PIPE

179mm, Pipe from Engine to Expansion Tank

1шт.

5

47736669

RADIATOR HOSE

1шт.

6

47450797

HOSE

500mm, Hose from Expansion Tank to Engine

1шт.

7

84577790

HOSE,7mm ID x 1360mm L

1400mm, Overflow Tube from Expansion Tank

1шт.

8

47378045

CLAMP,10.1mm ID

1шт.

9

86566989

CABLE TIE,208mm L

7шт.

10

82019905

HOSE CLAMP,22 - 26mm X 12mm

1шт.

11

82039344

HOSE CLAMP,20mm - 32mm

1шт.
