(27.120.AI[01]) - VAR - 391158, 391159, 758052, 758053, 758054 - REAR AXLE, FINAL DRIVE, AXLE HOUSING

Запчасти Case IH PUMA 185 CVT (27.120.AI[01]) - VAR - 391158, 391159, 758052, 758053, 758054 - REAR AXLE, FINAL DRIVE, AXLE HOUSING (27) - REAR AXLE SYSTEM

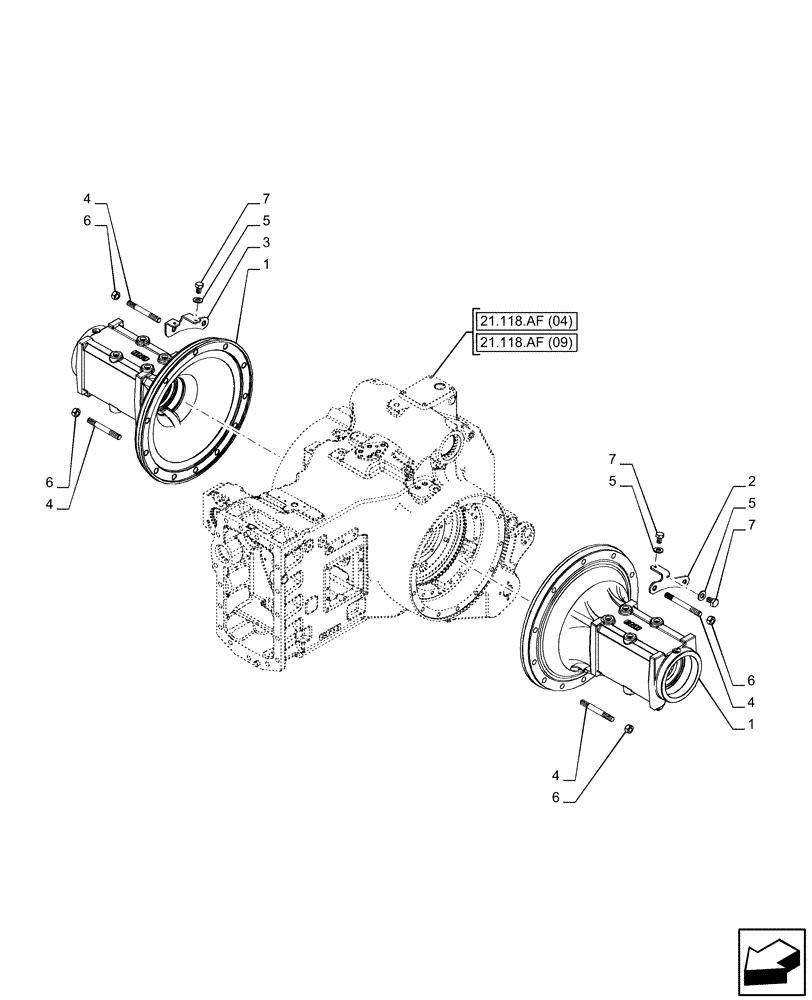

Схема запчастей Case IH PUMA 185 CVT - (27.120.AI[01]) - VAR - 391158, 391159, 758052, 758053, 758054 - REAR AXLE, FINAL DRIVE, AXLE HOUSING (27) - REAR AXLE SYSTEM
21.118.af (09)
6
7
6
4
5
7
4
3
1
6
4
2
5
4
7
6
5
1
21.118.af (04)
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

47135687

SHAFT HOUSING

Lateral Reducer

2шт.

2

84600112

BRACKET

LH

1шт.

3

84488701

BRACKET

RH

1шт.

4

47693628

STUD

24шт.

5

14496521

WASHER,8.4mm ID x 17mm OD x 1.6mm Thk

3шт.

6

12164124

NUT,M16 x 1.5, Cl 8

24шт.

7

336199

BOLT,Hex, M8 x 1.25 x 12mm, Cl 8.8, Full Thd

3шт.
