/ / / / / / / / (27.120.AI[03]) - VAR - 337417, 337418, 337419, 337420, 337421, 337422, 337423, 337424, 337425 - REAR AXLE, FINAL DRIVE, AXLE HOUSING, W/ ANTILOCK BRAKING SYSTEM (ABS)
Запчасти Case IH PUMA 185 CVT (27.120.AI[03]) - VAR - 337417, 337418, 337419, 337420, 337421, 337422, 337423, 337424, 337425 - REAR AXLE, FINAL DRIVE, AXLE HOUSING, W/ ANTILOCK BRAKING SYSTEM (ABS) (27) - REAR AXLE SYSTEM

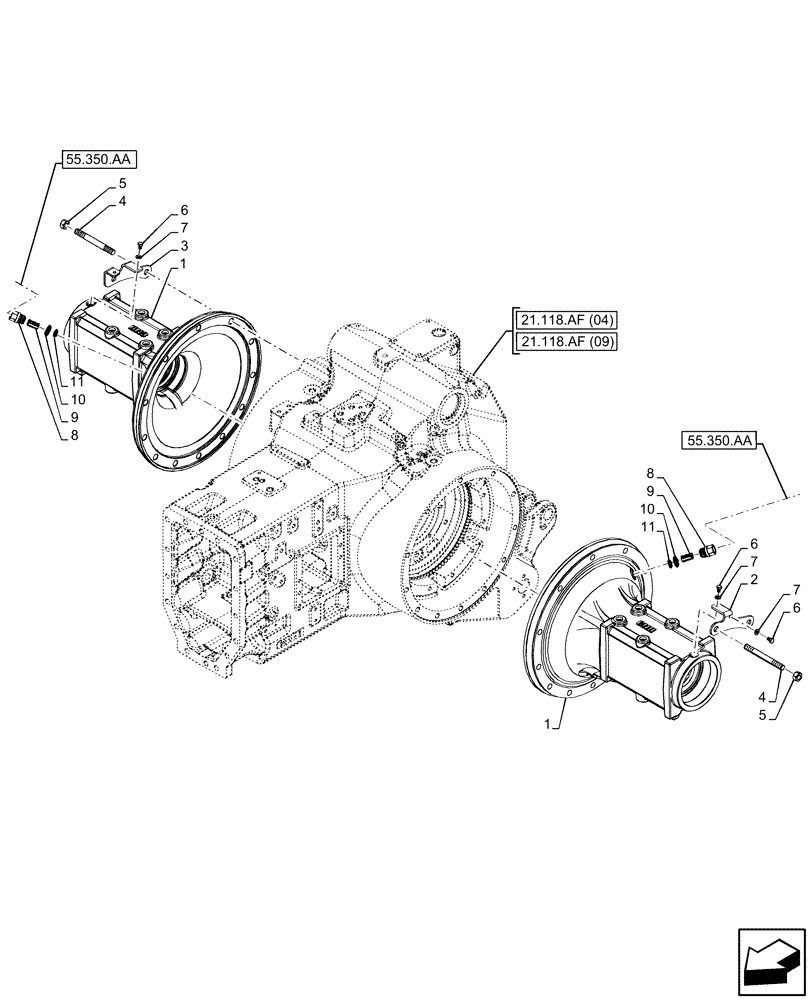

![Схема запчастей Case IH PUMA 185 CVT - (27.120.AI[03]) - VAR - 337417, 337418, 337419, 337420, 337421, 337422, 337423, 337424, 337425 - REAR AXLE, FINAL DRIVE, AXLE HOUSING, W/ ANTILOCK BRAKING SYSTEM (ABS) (27) - REAR AXLE SYSTEM](https://www.partsell.ru/storage/images/caseih/5364668.png)
55.350.aa
6
4
7
8
6
2
9
9
7
11
4
8
10
5
1
1
7
6
10
3
5
11
21.118.af (04)
21.118.af (09)
55.350.aa
1
84523697
HOUSING
Lateral Reducer
2шт.
2
84600112
BRACKET
LH
1шт.
3
84488701
BRACKET
RH
1шт.
4
47693628
STUD
24шт.
5
12164124
NUT,M16 x 1.5, Cl 8
24шт.
6
336199
BOLT,Hex, M8 x 1.25 x 12mm, Cl 8.8, Full Thd
3шт.
7
14496521
WASHER,8.4mm ID x 17mm OD x 1.6mm Thk
3шт.
8
84387219
BUSHING,M27 x 2
ABS Sensor
2шт.
9
84395487
SLEEVE,16mm ID x 18mm OD x 31.5mm L
ABS Sensor
2шт.
10
14438185
O-RING,24mm ID x 3mm
2шт.
11
14437985
O-RING,15.3mm ID x 2.4mm
2шт.
