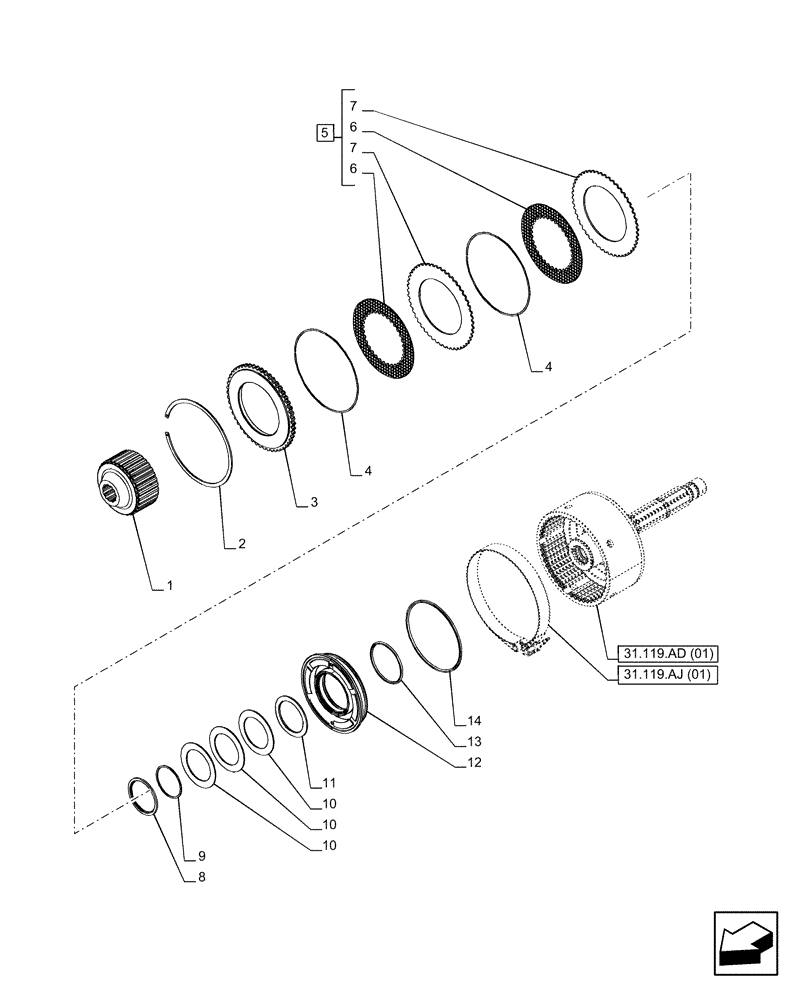

Запчасти Case IH PUMA 185 CVT (31.119.AI[02]) - VAR - 758030 - PTO 540/540E/1000/1000E RPM, CLUTCH (31) - IMPLEMENT POWER TAKE OFF

1

84382728

HUB

Z 32

1шт.

2

5162251

CIRCLIP,142.5mm ID

1шт.

3

5198772

CLUTCH PLATE,94.5mm ID x 152.6mm OD x 9.5mm Thk

1шт.

4

81864341

SPRING,148.35mm ID

1шт.

5

5198796

CLUTCH PLATE,31.2mm Thk

ASSY, Incl 6, 7

1шт.

6

5163844

CLUTCH DRIVING PLATE,99mm ID x 140mm OD x 1.7mm Thk

8шт.

7

5173294

CLUTCH DISC,99mm ID x 152.6mm OD x 2mm Thk

99.00mm ID x 152.60mm OD x 2.00mm

1шт.

7

5173295

CLUTCH DISC,99mm ID x 152.6mm OD x 2.2mm Thk

1шт.

8

5191304

RETAINER CUP,55mm ID x 66mm OD x 3mm Thk

1шт.

9

5191305

CIRCLIP,54mm ID

1шт.

10

5168346

BELLEVILLE WASHER,56mm ID x 80mm OD x 3.3mm Thk

12шт.

11

5182696

PISTON RING,56mm ID x 72.99mm OD x 3mm Thk

1шт.

12

5182697

PISTON

1шт.

13

5162252

GASKET,68mm ID x 75.5mm OD x 3.2mm Thk

1шт.

14

5182703

GASKET,119.55mm ID x 127mm OD x 3.2mm Thk

1шт.
