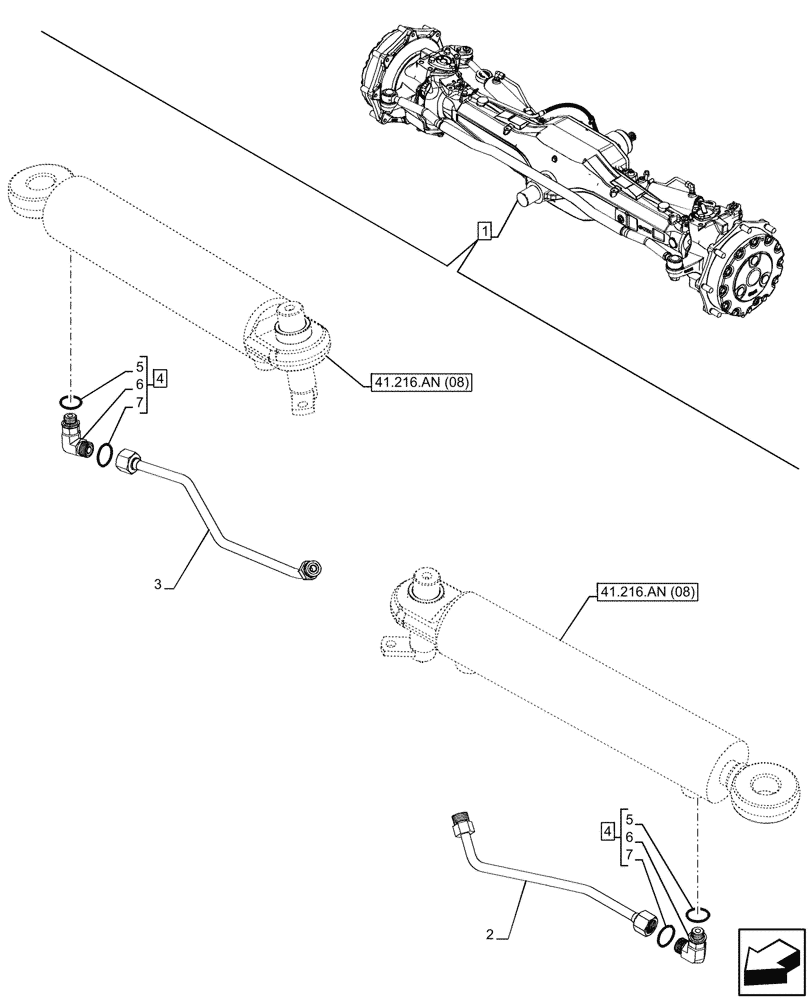

Запчасти Case IH PUMA 185 CVT (41.216.AV[14]) - VAR - 391157 - 4WD FRONT AXLE, STEERING CYLINDER, HYDRAULIC LINE (41) - STEERING

1

84381206

LIVE FRONT AXLE

ASSY, 4WD Standard, Incl 2 - 7

1шт.

See Axle Components also in Figure 25.100.AD (07), 25.102.AD (06), 25.108.AA (06), 25.108.AB (01), 25.108.AG (11), 25.108.AG (12), 41.106.AG (07), 41.216.AN (08), 55.047.AA (07)

1шт.

2

84233089

HYD TUBE,10.00mm OD x 276.00mm, 75.00mm L

Steering Cylinder, LH

1шт.

3

84233156

HYD TUBE,10.00mm OD x 276.00mm, 75.00mm L

Steering Cylinder, RH

1шт.

4

47127165

90 ELBOW

ASSY, Incl 5 - 7

2шт.

5

5185510

O-RING,1.78mm Thk x 9.25mm ID, 85 Duro

1шт.

6

NSS

NOT SOLD SEPARAT

Elbow, Incl in 4

1шт.

7

14437785

O-RING,11.3mm ID x 2.4mm

1шт.
