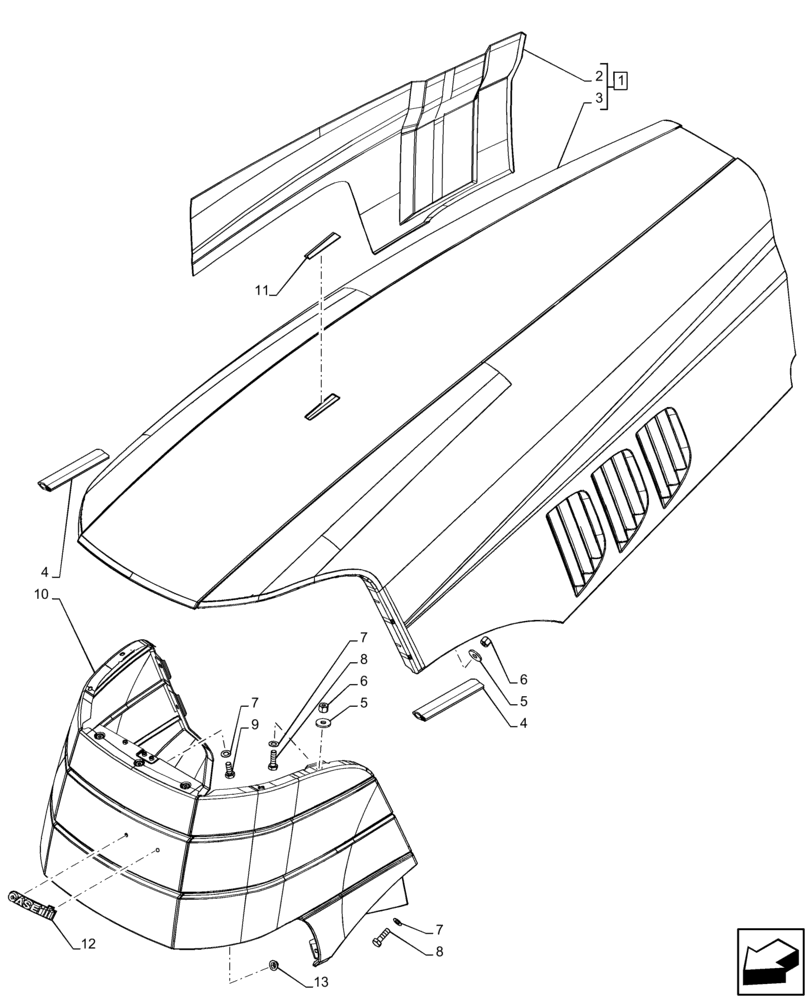

Запчасти Case IH PUMA 200 CVT (90.100.AU[01]) - VAR - 391216, 758207, 758208, 758210, 758951 - HOOD (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

47658897

ENGINE HOOD

ASSY, Red, Incl 2, 3

1шт.

2

47624429

INSULATOR

1шт.

3

NSS

NOT SOLD SEPARAT

Panel, Hood Upper, Incl in 1

1шт.

4

87624534

SEAL

2шт.

5

10523401

WASHER,6.15mm ID x 18mm OD x 2mm Thk

8шт.

6

12574211

NUT,M6 x 1, Cl 8

8шт.

7

10615479

LOCK WASHER,6.4mm ID x 11mm OD x 0.7mm Thk

11шт.

8

120100

BOLT,M6 x 20mm, Cl 8.8

8шт.

9

86508568

BOLT,Hex, M6 x 1 x 16mm, Cl 8.8

3шт.

10

87641708

GRILLE

Radiator Upper, Black

1шт.

11

44995044

GUIDE

1шт.

12

87716230

EMBLEM

CASE

1шт.

13

86625060

PUSH-ON NUT,Self, Threading, 1/4"

2шт.
