(25.100.AD[06]) - VAR - 337416 - SUSPENDED FRONT AXLE, W/ BRAKE, HOUSING

Запчасти Case IH PUMA 240 CVT (25.100.AD[06]) - VAR - 337416 - SUSPENDED FRONT AXLE, W/ BRAKE, HOUSING (25) - FRONT AXLE SYSTEM

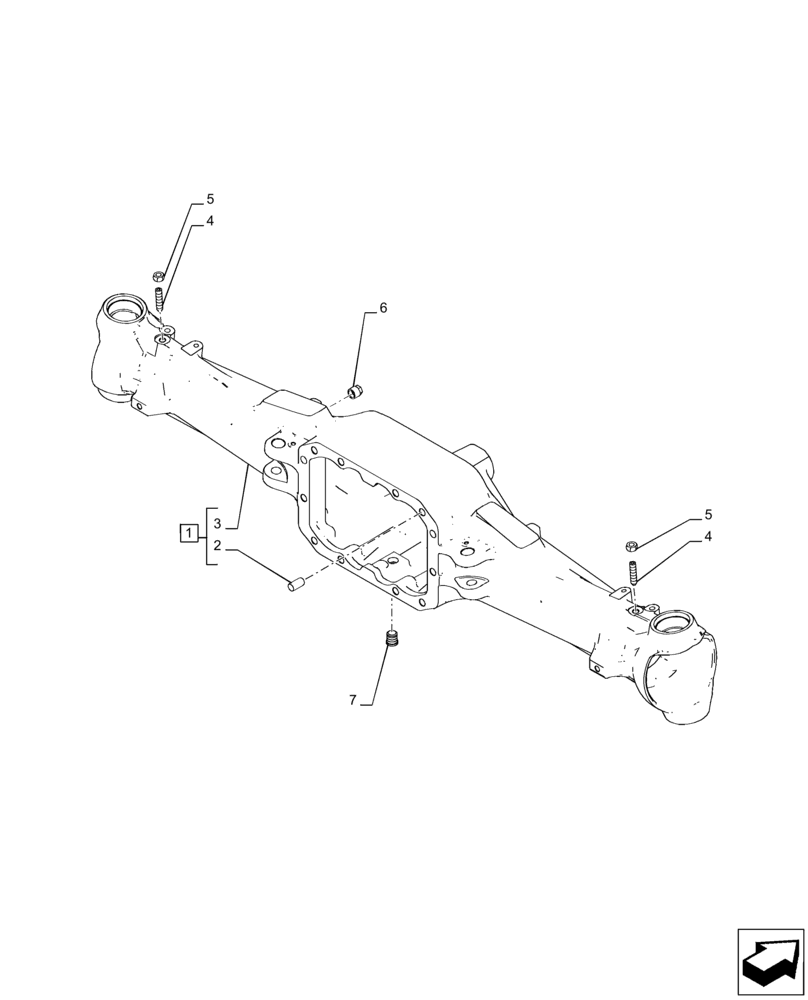

Схема запчастей Case IH PUMA 240 CVT - (25.100.AD[06]) - VAR - 337416 - SUSPENDED FRONT AXLE, W/ BRAKE, HOUSING (25) - FRONT AXLE SYSTEM
4
7
2
1
5
5
3
6
4
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

84531228

LIVE FRONT AXLE

1шт.

2

5174376

DOWEL,M16 x 30

2шт.

3

NSS

NOT SOLD SEPARAT

Housing, Incl in 1

1шт.

4

87316865

SET SCREW,M12 x 1.25 x 53mm

2шт.

5

16101511

NUT,M12 x 1.25, Cl 8

2шт.

6

14324411

MAGNETIC PLUG,M22 x 1.50, Cl 5.8, ZND

1шт.

7

14326211

PLUG,M22 x 1.50, R50, ZND

1шт.
