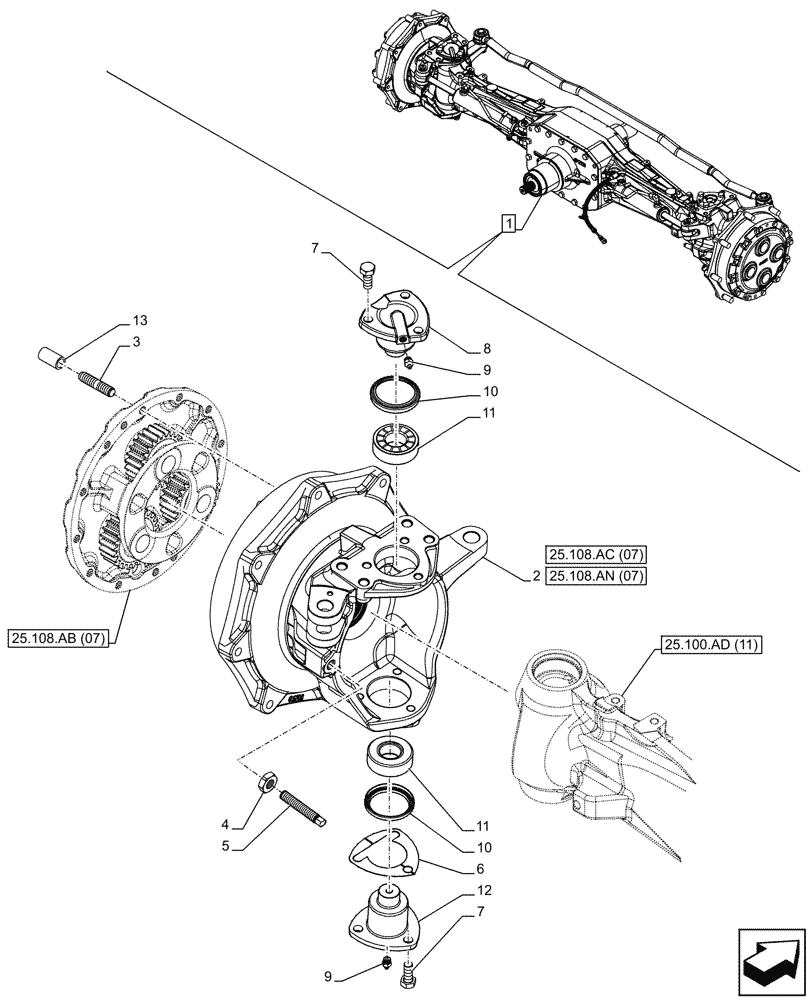

Запчасти Case IH PUMA 240 CVT (25.108.AG[20]) - VAR - 391157 - 4WD FRONT AXLE, STEERING KNUCKLE, LH (25) - FRONT AXLE SYSTEM

1

84381257

LIVE FRONT AXLE

ASSY, 4WD Standard, Incl 2 - 13

1шт.

See Axle Components also in Figure 25.100.AD (11), 25.102.AD (13), 25.108.AA (10), 25.108.AB (07), 25.108.AG (19), 41.106.AG (11), 41.216.AN (12), 41.216.AV (18), 55.047.AA (11)

1шт.

2

84189972

STUB AXLE/STEERING S

ASSY, LH

1шт.

3

87618916

STUD

8шт.

4

10717624

THIN NUT,Thin, M18 x 2.5, Cl 05

1шт.

5

87751874

ADJUSTMENT SCREW,M18 x 120mm, Cl 10.9

1шт.

6

5137114

SHIM,70.5mm ID x 115mm OD x 0.1mm Thk

2шт.

6

5137115

SHIM,0.15mm Thk

1шт.

6

5137116

SHIM,70.5mm ID x 115mm OD x 0.2mm Thk

1шт.

6

5137117

SHIM,70.5mm ID x 115mm OD x 0.25mm Thk

1шт.

6

5137118

SHIM,70.5mm ID x 115mm OD x 0.3mm Thk

1шт.

7

14254434

SCREW,Hex, M14 x 1.5 x 30mm, Cl 10.9, Full Thd

6шт.

8

87382381

BALL STUD

1шт.

9

13407211

LUBE NIPPLE,M10 x 1

2шт.

10

5121907

SEAL,70mm ID x 90mm OD x 11mm Thk

2шт.

11

5119660

BALL JOINT,40mm ID x 80mm OD x 24.75mm W

2шт.

12

87382384

BALL STUD

1шт.

13

87671955

CAP,15.50mm ID x 22.00mm OD x 40.00mm

8шт.
