(41.216.AN[12]) - VAR - 391157 - 4WD FRONT AXLE, STEERING CYLINDER

Запчасти Case IH PUMA 240 CVT (41.216.AN[12]) - VAR - 391157 - 4WD FRONT AXLE, STEERING CYLINDER (41) - STEERING

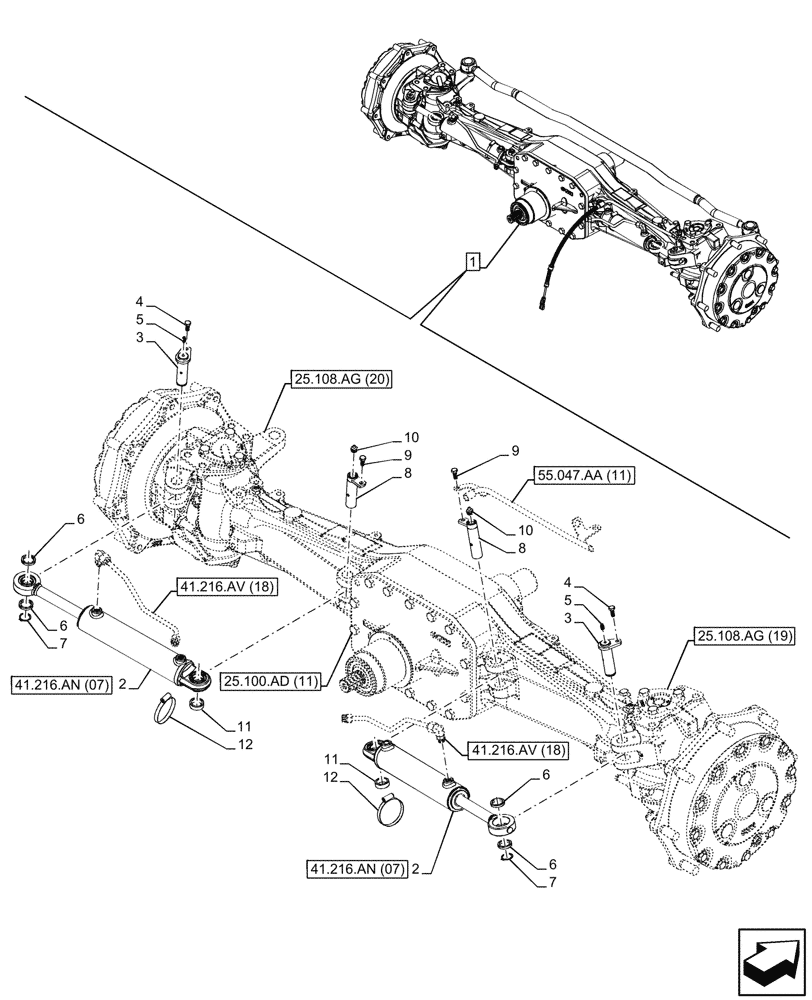

Схема запчастей Case IH PUMA 240 CVT - (41.216.AN[12]) - VAR - 391157 - 4WD FRONT AXLE, STEERING CYLINDER (41) - STEERING
7
1
6
2
6
10
3
5
4
8
6
11
5
25.108.ag (20)
9
55.047.aa (11)
12
25.100.ad (11)
7
41.216.av (18)
6
11
3
12
9
8
10
41.216.av (18)
25.108.ag (19)
41.216.an (07)
4
41.216.an (07)
2
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

84381257

LIVE FRONT AXLE

ASSY, 4WD Standard, Incl 2 - 12

1шт.

See Axle Components also in Figure 25.100.AD (11), 25.102.AD (13), 25.108.AA (10), 25.108.AB (07), 25.108.AG (19), 25.108.AG (20), 41.106.AG (11), 41.216.AV (18), 55.047.AA (11)

1шт.

2

5198883

STEERING CYLINDER,Double Acting, 25mm Rod, 232.5mm Stroke

ASSY

2шт.

3

5171707

PIN,24.97mm OD x 91mm L

2шт.

4

16043424

SCREW,Hex, M8 x 1.25 x 20mm, Cl 8.8, Full Thd

2шт.

5

80714

LUBE NIPPLE,1/4"-28 NPT x .54" lg

2шт.

6

5111573

SPACER,25.5mm ID x 34mm OD x 5.9mm L

4шт.

7

11067376

SNAP RING,M25, Ext

2шт.

8

5198013

PIN,24.97mm OD x 100mm L

2шт.

9

16043421

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8, Full Thd

2шт.

10

5120532

LUBE NIPPLE,Straight, M14 x 1.5 x 6.50mm

2шт.

11

5111576

SPACER,25.5mm ID x 34mm OD x 11mm L

2шт.

12

13000990

COLLAR,60mm - 80mm, Worm Gear

2шт.
