(55.047.AA[05]) - VAR - 337416 - FRONT AXLE, SUSPENDED, STEERING, SENSOR

Запчасти Case IH PUMA 240 CVT (55.047.AA[05]) - VAR - 337416 - FRONT AXLE, SUSPENDED, STEERING, SENSOR (55) - ELECTRICAL SYSTEMS

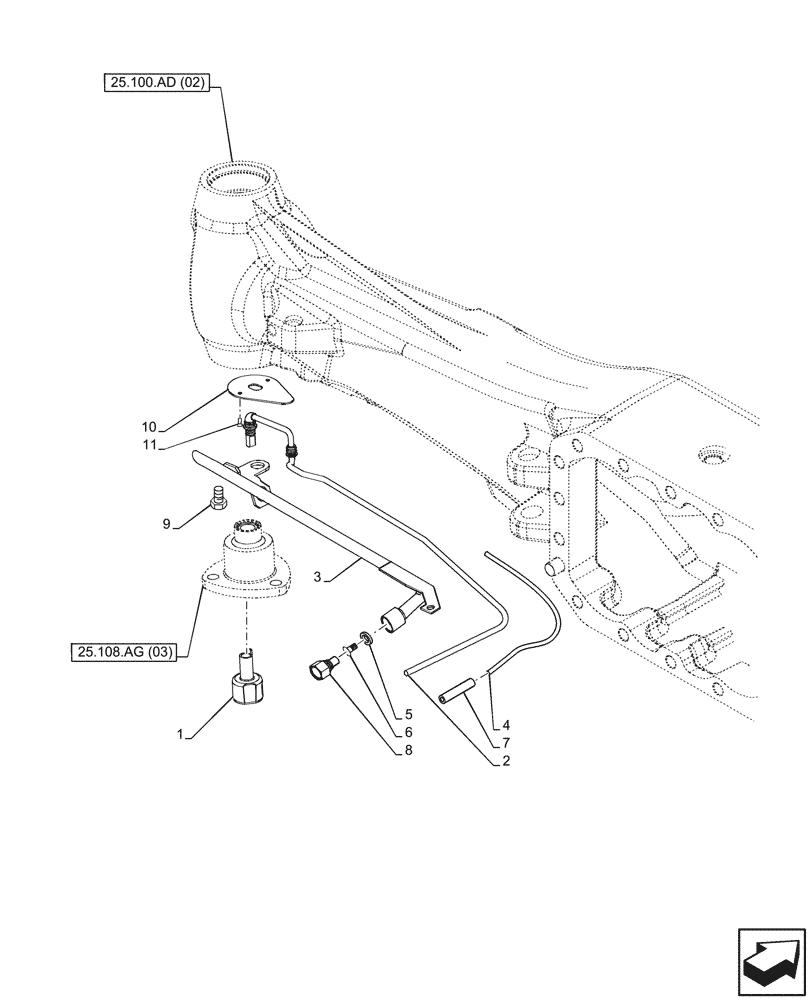

Схема запчастей Case IH PUMA 240 CVT - (55.047.AA[05]) - VAR - 337416 - FRONT AXLE, SUSPENDED, STEERING, SENSOR (55) - ELECTRICAL SYSTEMS
25.100.ad (02)
2
1
6
4
3
10
9
5
8
11
7
25.108.ag (03)
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

87627614

SENSOR

Steering Position

1шт.

2

87635259

ELEC CONNECTOR,Male

Steering Sensor

1шт.

3

84399004

TUBE

1шт.

4

87619680

FLEXIBLE SHEATH

1шт.

5

82918451

SPACER

Wire Connector

1шт.

6

82918419

PLUG

Wire Connector

1шт.

7

87619627

HOSE PROTECTION

1шт.

8

82006331

1шт.

9

15540324

SCREW,Hex, M12 x 1.25 x 25mm, Cl 8.8, Full Thd

1шт.

10

87315098

SHIELD

1шт.

11

14641591

RIVET,Pop, Truss Hd, M3.20 x 12mm, AL, PLN

2шт.
