(35.322.AY[05]) - VAR - 758016, 758017, 758018, 758019, 758020, 758021 - TRANSMISSION, LOW PRESSURE, LINE

Запчасти Case IH PUMA 150 (35.322.AY[05]) - VAR - 758016, 758017, 758018, 758019, 758020, 758021 - TRANSMISSION, LOW PRESSURE, LINE (35) - HYDRAULIC SYSTEMS

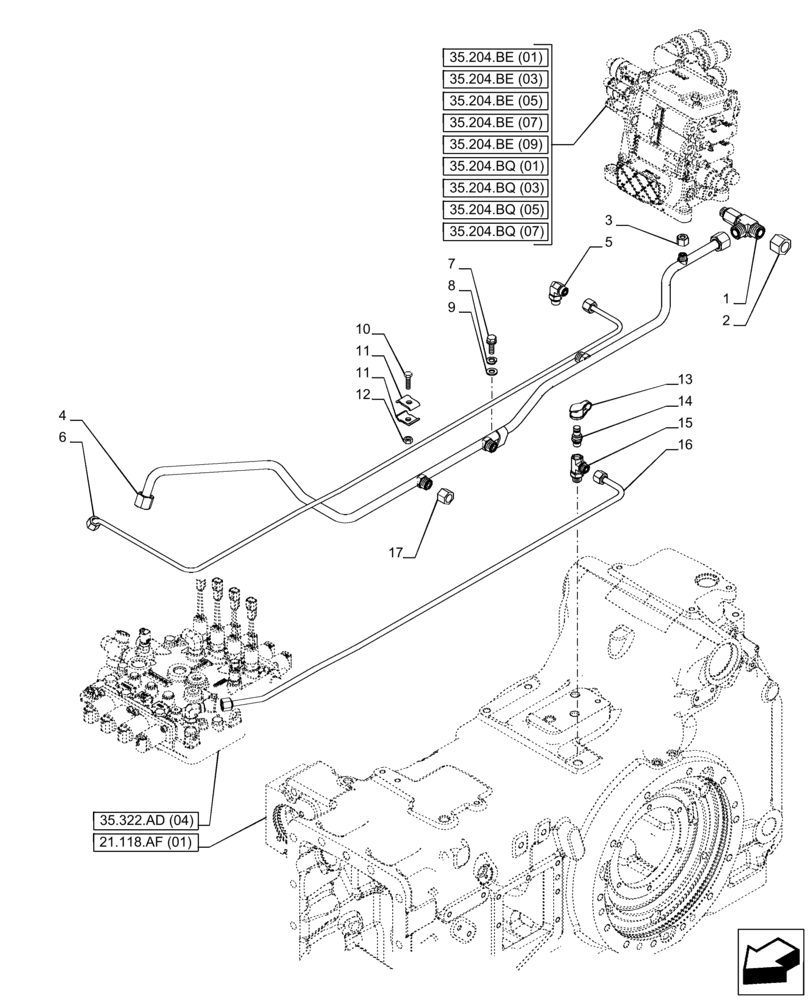

Схема запчастей Case IH PUMA 150 - (35.322.AY[05]) - VAR - 758016, 758017, 758018, 758019, 758020, 758021 - TRANSMISSION, LOW PRESSURE, LINE (35) - HYDRAULIC SYSTEMS
7
4
35.204.be (07)
9
14
16
11
8
35.204.bq (05)
2
35.204.be (03)
11
15
17
35.204.bq (01)
12
35.322.ad (04)
21.118.af (01)
5
13
35.204.be (01)
35.204.be (09)
6
3
35.204.be (05)
10
35.204.bq (07)
35.204.bq (03)
1
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

87571078

HYD CONNECTOR,1"-14 x 1"-14 x M18 x 1.5

1шт.

2

83987627

CAP,1-14UN-2A

1шт.

3

5189973

PLUG

1шт.

4

87660987

TUBE,16 mm OD x 1190.3, 309.7 mm L

Remote Valve

1шт.

5

5194076

ELBOW,90 Deg, 11/16-16 ORFS x M16 x 1.5 ORB

1шт.

6

87519113

PIPE

PTO Brake

1шт.

7

86625000

BOLT,Hex, M8 x 18mm, Cl 8.8, Full Thd

1шт.

8

14496501

WASHER,8.4mm ID x 17mm OD x 1.6mm Thk

1шт.

9

13550421

WASHER,10.2mm ID x 20mm OD x 2mm Thk

1шт.

10

10902624

SCREW,Hex, M6 x 25mm, Cl 8.8, Full Thd

1шт.

11

5156374

CLAMP

2шт.

12

12574211

NUT,M6 x 1, Cl 8

1шт.

13

5185424

DUST CAP,11.5mm ID x 81.5 L, Black

1шт.

14

5185423

COUPLING

1шт.

15

87690352

HYD CONNECTOR,11/16"-16 x M16 x 1.5 x M14 x 1.5

1шт.

16

87519121

PIPE

Rear PTO Clutch

1шт.

17

47123020

PLUG,Hex

1шт.
