(90.102.AU[02]) - VAR - 391216, 758207, 758208, 758210, 758951 - HOOD, LATCH, SUPPORT

Запчасти Case IH PUMA 150 (90.102.AU[02]) - VAR - 391216, 758207, 758208, 758210, 758951 - HOOD, LATCH, SUPPORT (90) - PLATFORM, CAB, BODYWORK AND DECALS

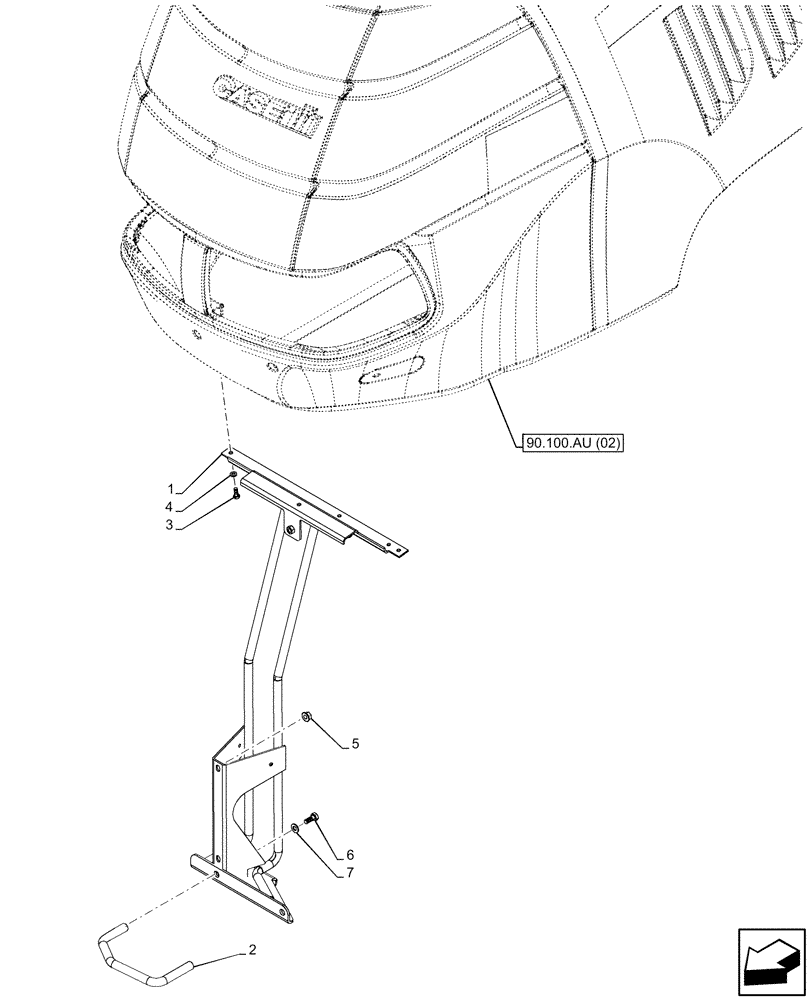

Схема запчастей Case IH PUMA 150 - (90.102.AU[02]) - VAR - 391216, 758207, 758208, 758210, 758951 - HOOD, LATCH, SUPPORT (90) - PLATFORM, CAB, BODYWORK AND DECALS
90.100.au (02)
2
1
7
4
6
5
3
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

84150680

SUPPORT

1шт.

2

84151073

HANDLE

1шт.

3

86508568

BOLT,Hex, M6 x 1 x 16mm, Cl 8.8

3шт.

4

10519401

WASHER,6.4mm ID x 11.95mm OD x 1.6mm Thk

3шт.

5

9804277

FLANGE NUT,Hex, M8 x 1.25, Cl 8

2шт.

6

120104

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

2шт.

7

14496501

WASHER,8.4mm ID x 17mm OD x 1.6mm Thk

2шт.
