(90.150.BG[12]) - VAR - 338305, 338309, 338313, 338315 - ROOF LINING, W/ HIGH VISIBILITY PANEL, W/ AUTOGUIDANCE

Запчасти Case IH PUMA 150 (90.150.BG[12]) - VAR - 338305, 338309, 338313, 338315 - ROOF LINING, W/ HIGH VISIBILITY PANEL, W/ AUTOGUIDANCE (90) - PLATFORM, CAB, BODYWORK AND DECALS

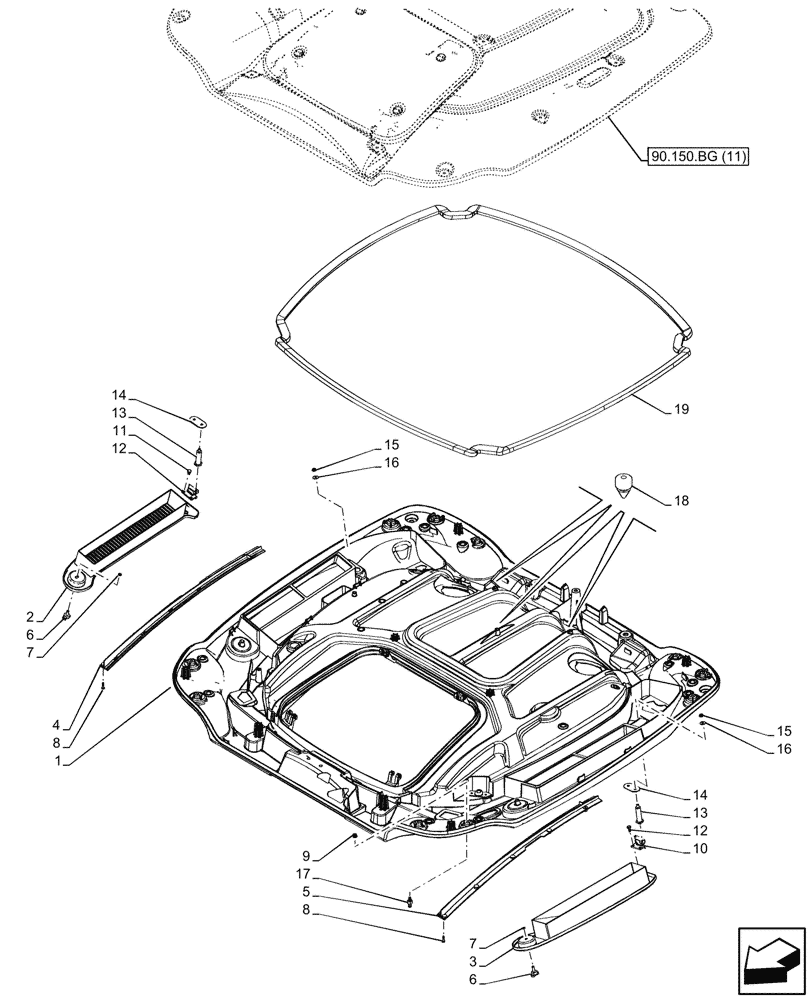

Схема запчастей Case IH PUMA 150 - (90.150.BG[12]) - VAR - 338305, 338309, 338313, 338315 - ROOF LINING, W/ HIGH VISIBILITY PANEL, W/ AUTOGUIDANCE (90) - PLATFORM, CAB, BODYWORK AND DECALS
90.150.bg (11)
4
7
8
2
5
9
8
16
13
14
7
15
16
13
15
17
11
12
18
6
10
14
19
1
6
12
3
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

47823863

ROOF FRAME

1шт.

2

87725999

SUPPORT

Filter RH

1шт.

3

82033661

SUPPORT

Filter LH

1шт.

4

87640268

GUIDE

RH

1шт.

5

87640267

GUIDE

LH

1шт.

6

84516592

KNOB

2шт.

7

87524305

RETAINER,7.3mm ID x 12.5mm OD x 0.5mm Thk

2шт.

8

82034113

SELF-TAP SCREW,Torx, Round HD, M5 x 3 x 25mm

10шт.

9

13046211

NUT,Flange Hex, M8

10шт.

10

82033690

HINGE

LH

1шт.

11

82033679

HINGE

RH

1шт.

12

16043221

BOLT,Hex, M8 x 16mm, Cl 8.8, Full Thd

4шт.

13

47619360

SPACER,M8 x 19mm OD x 63mm L

4шт.

14

47619371

SEAL,77.5mm L x 37.0mm W x 3.0mm Thk

2шт.

15

14084814

FLANGE NUT,M8 x 1.25, Flg

4шт.

16

12642001

WASHER,8.15mm ID x 25mm OD x 1.5mm Thk

4шт.

17

47683611

STUD,M8, M10, Cl 8

10шт.

18

14624587

PLUG,D 6.3 x 3

3шт.

19

47467341

SEAL,30mm W x 15mm Thk x 5000mm L

1шт.
