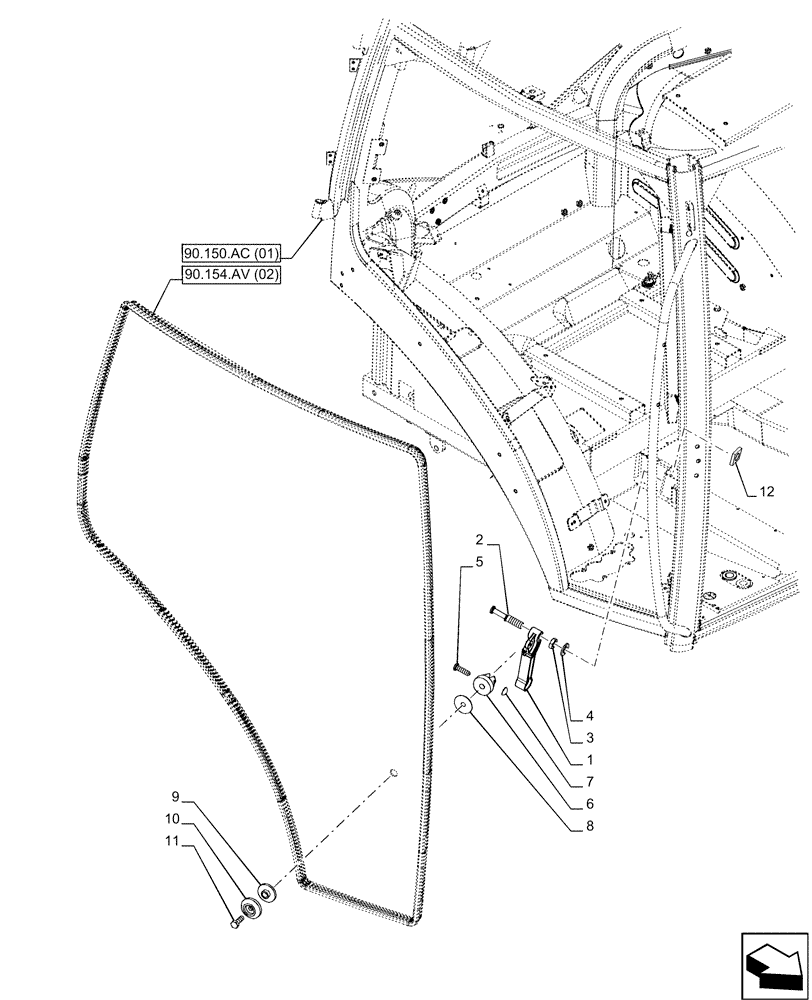

Запчасти Case IH PUMA 150 (90.154.AC[02]) - CAB DOOR, HANDLE, RH, 1 DOOR (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

87363359

HANDLE

Door Inner

1шт.

2

87365547

STRIKER PLATE

Door Latch

1шт.

3

87378449

THIN NUT,M12 x 1

M12 x 1

2шт.

4

14496701

WASHER,13.00mm ID x 24.00mm OD x 2.50mm, CST, ZND

3шт.

5

82038987

PIN

1шт.

6

82038983

HINGE

1шт.

7

82038988

CIRCLIP

1шт.

8

82038985

PACKING RING,8.5mm ID x 37mm OD x 1mm Thk

1шт.

9

82038986

PACKING RING,10.2mm ID x 36mm OD x 10mm L

1шт.

10

82038984

WASHER,Plastic, 8mm ID x 40mm OD x 10mm Thk

Plastic, 8 x 40 x 10

1шт.

11

87698794

BOLT,Prevailing Torque, M8 x 1.5 x 25.00mm, Cl 8.8, ZND

1шт.

12

83994378

NUT,M12 x 1

1шт.
