(21.160.AK) - VAR - 758011, 758013, 758015, 758017, 758019, 758021, 758867, 758869 - CREEPER, CONTROL LEVER

Запчасти Case IH PUMA 150 (21.160.AK) - VAR - 758011, 758013, 758015, 758017, 758019, 758021, 758867, 758869 - CREEPER, CONTROL LEVER (21) - TRANSMISSION

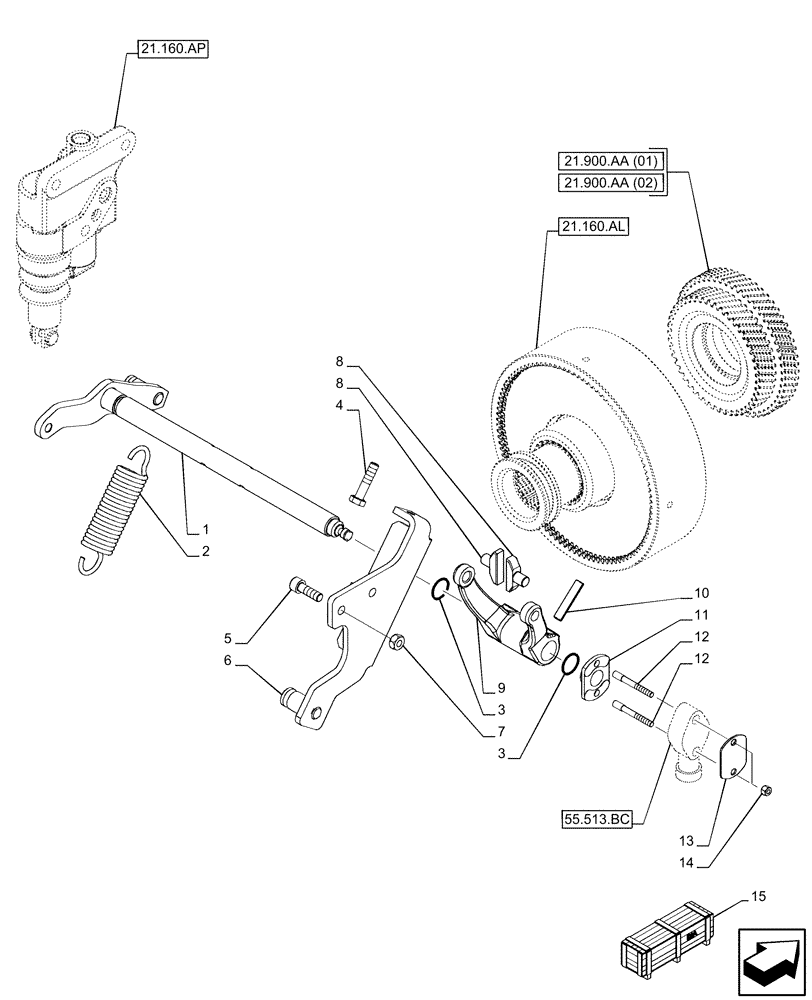

Схема запчастей Case IH PUMA 150 - (21.160.AK) - VAR - 758011, 758013, 758015, 758017, 758019, 758021, 758867, 758869 - CREEPER, CONTROL LEVER (21) - TRANSMISSION
21.160.al
15
12
6
4
3
7
14
9
3
11
1
5
12
2
8
13
10
8
21.900.aa (01)
21.900.aa (02)
21.160.ap
55.513.bc
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

87302436

CONTROL LEVER

1шт.

2

84189604

TENSION SPRING,30mm OD x 120mm L

1шт.

3

14457280

O-RING,0.103" Thk x 0.612" ID, -114, Cl 5, 75 Duro

2шт.

4

16043924

BOLT,Hex, M8 x 1.25 x 35mm, Cl 8.8, Full Thd

2шт.

5

14306421

HEX SOC SCREW,M8 x 1.25 x 25mm, Cl 8.8

2шт.

6

87385624

BRACKET

1шт.

7

16100814

NUT,M8, Cl 8, DAC

M8

2шт.

8

5152826

SLIDING PAD

2шт.

9

5148321

LEVER

1шт.

10

14607270

LOCK PIN,M8 x 40, Slotted

2шт.

11

5188275

PLATE

1шт.

12

82014252

STUD,M5

M5

2шт.

13

5178336

PLATE

1шт.

14

12577811

NUT,M5

M5

2шт.

15

710117064

DIA KIT, TRACTOR

Creeper Dia for Semi Powershift Transmission, Incl 1 - 14

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

15

710146084

DIA KIT, TRACTOR

Creeper Dia for Full Powershift Transmission, Incl 1 - 14

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.
