(35.300.AN[05]) - VAR - 391158, 758052, 758053 - OIL FILTER, PRIORITY VALVE, COMPONENTS

Запчасти Case IH PUMA 150 (35.300.AN[05]) - VAR - 391158, 758052, 758053 - OIL FILTER, PRIORITY VALVE, COMPONENTS (35) - HYDRAULIC SYSTEMS

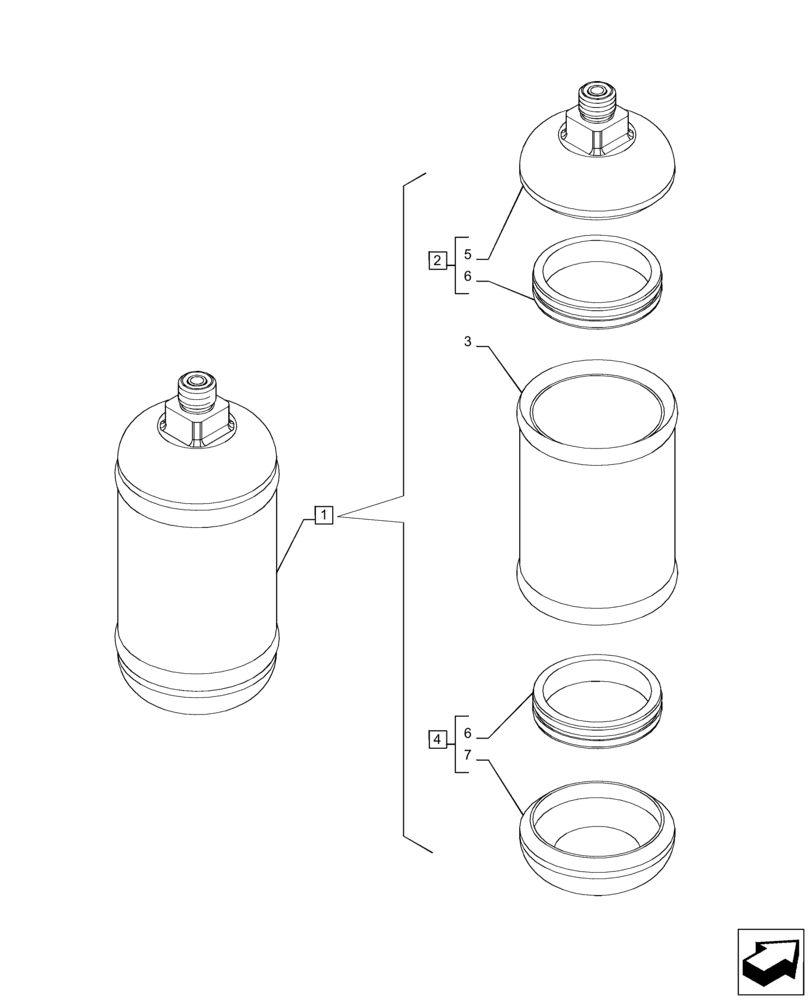

Схема запчастей Case IH PUMA 150 - (35.300.AN[05]) - VAR - 391158, 758052, 758053 - OIL FILTER, PRIORITY VALVE, COMPONENTS (35) - HYDRAULIC SYSTEMS
6
3
2
1
7
4
5
6
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

84408141

HYDRAULIC OIL FILTER,60mm OD x 142.5mm L, 9/16-18

ASSY, Incl 2 - 4

1шт.

2

84408577

PLATE, LOCKING

ASSY, Incl 5, 6 (Q.ty 1)

1шт.

3

84408183

BODY

1шт.

4

84408177

COVER ASSY

ASSY, Incl 6 (Q.ty 1), 7

1шт.

5

84408182

FILTER COVER

1шт.

6

84408186

COLLAR,50mm x 10mm, 42mm ID

2шт.

7

84408180

FILTER COVER

1шт.
