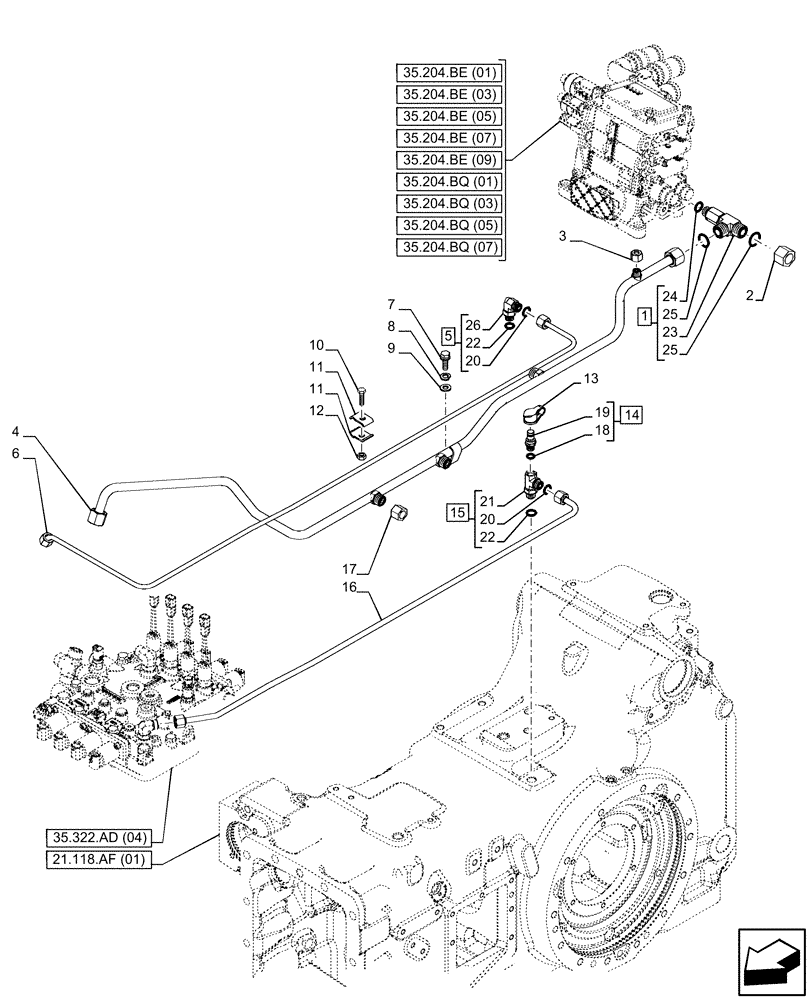

Запчасти Case IH PUMA 150 (35.322.AY[05]) - VAR - 391136, 391351, 758011, 758012, 758013, 758014, 758015, 758016, 758017, 758018, 758019, 758020, 758021 - TRANSMISSION, LOW PRESSURE, LINE (35) - HYDRAULIC SYSTEMS

1

87571078

HYD CONNECTOR,1"-14 x 1"-14 x M18 x 1.5

ASSY, Incl 23 - 25 (Qty 2)

1шт.

2

83987627

CAP,1-14UN-2A

1шт.

3

5189973

PLUG

1шт.

4

87660987

TUBE,16 mm OD x 1190.3, 309.7 mm L

1шт.

5

5194076

ELBOW,90 Deg, 11/16-16 ORFS x M16 x 1.5 ORB

ASSY, Incl 20 (Qty 1), 22 (Qty 1), 26

1шт.

6

87519113

PIPE

PTO Brake

1шт.

7

16043321

BOLT,Hex, M8 x 1.25 x 18mm, Cl 8.8, Full Thd

1шт.

8

14496501

WASHER,8.4mm ID x 17mm OD x 1.6mm Thk

1шт.

9

13550421

WASHER,10.2mm ID x 20mm OD x 2mm Thk

1шт.

10

10902624

SCREW,Hex, M6 x 25mm, Cl 8.8, Full Thd

1шт.

11

5156374

CLAMP

2шт.

12

12574211

NUT,M6 x 1, Cl 8

1шт.

13

5185424

DUST CAP,11.5mm ID x 81.5 L, Black

1шт.

14

5185423

COUPLING

ASSY, Incl 18, 19

1шт.

15

87690352

HYD CONNECTOR,11/16"-16 x M16 x 1.5 x M14 x 1.5

ASSY, Incl 20 (Qty 1), 21, 22 (Qty 1)

1шт.

16

87519121

PIPE

Rear PTO Clutch

1шт.

17

47123020

PLUG,Hex

1шт.

18

47725668

O-RING,2.2mm Thk x 11.3mm ID, Cl 6

1шт.

19

NSS

NOT SOLD SEPARAT

Coupling, Incl in 14

1шт.

20

5185510

O-RING,1.78mm Thk x 9.25mm ID, 85 Duro

2шт.

21

NSS

NOT SOLD SEPARAT

Elbow, Incl in 15

1шт.

22

14437885

O-RING,13.30mm ID x 2.40mm

2шт.

23

NSS

NOT SOLD SEPARAT

Elbow, Incl in 1

1шт.

24

14437985

O-RING,15.3mm ID x 2.4mm

1шт.

25

5185512

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

2шт.

26

NSS

NOT SOLD SEPARAT

Elbow, Incl in 5

1шт.
