(35.322.AY[10]) - VAR - 391351, 758012, 758013, 758014, 758015, 758018, 758019, 758020, 758021 - LOW PRESSURE, LINE

Запчасти Case IH PUMA 150 (35.322.AY[10]) - VAR - 391351, 758012, 758013, 758014, 758015, 758018, 758019, 758020, 758021 - LOW PRESSURE, LINE (35) - HYDRAULIC SYSTEMS

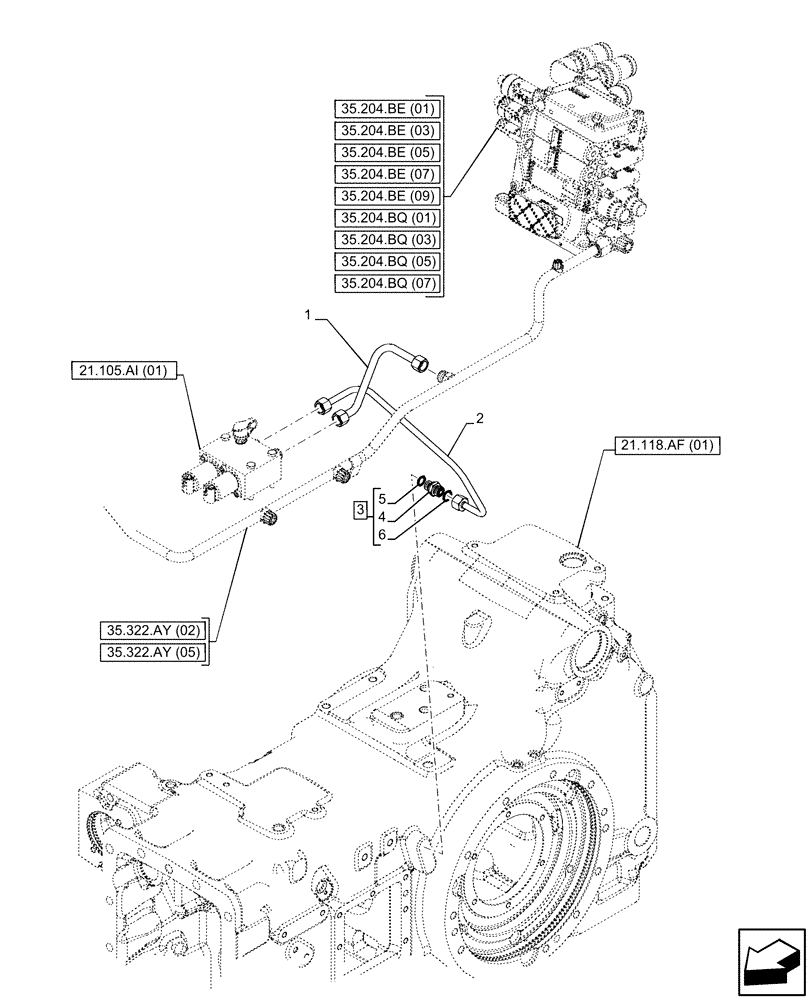

Схема запчастей Case IH PUMA 150 - (35.322.AY[10]) - VAR - 391351, 758012, 758013, 758014, 758015, 758018, 758019, 758020, 758021 - LOW PRESSURE, LINE (35) - HYDRAULIC SYSTEMS
35.204.be (01)
1
2
6
4
5
3
35.204.be (07)
21.105.ai (01)
35.322.ay (02)
35.204.be (09)
35.204.be (05)
35.204.be (03)
35.322.ay (05)
21.118.af (01)
35.204.bq (01)
35.204.bq (05)
35.204.bq (07)
35.204.bq (03)
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

87519127

PIPE

Front

1шт.

2

87519138

PIPE

Lubrification

1шт.

3

5192374

HYD CONNECTOR,11/16-16 ORFS x M16 x 1.5 ORB

ASSY, Incl 4 - 6

1шт.

4

NSS

NOT SOLD SEPARAT

Connector, Incl in 3

1шт.

5

14437885

O-RING,13.30mm ID x 2.40mm

1шт.

6

5185510

O-RING,1.78mm Thk x 9.25mm ID, 85 Duro

1шт.
