(90.156.AL[02]) - VAR - 758133, 758142, 758145 - WINDSHIELD, HEATED GLASS, COVERS

Запчасти Case IH PUMA 165 (90.156.AL[02]) - VAR - 758133, 758142, 758145 - WINDSHIELD, HEATED GLASS, COVERS (90) - PLATFORM, CAB, BODYWORK AND DECALS

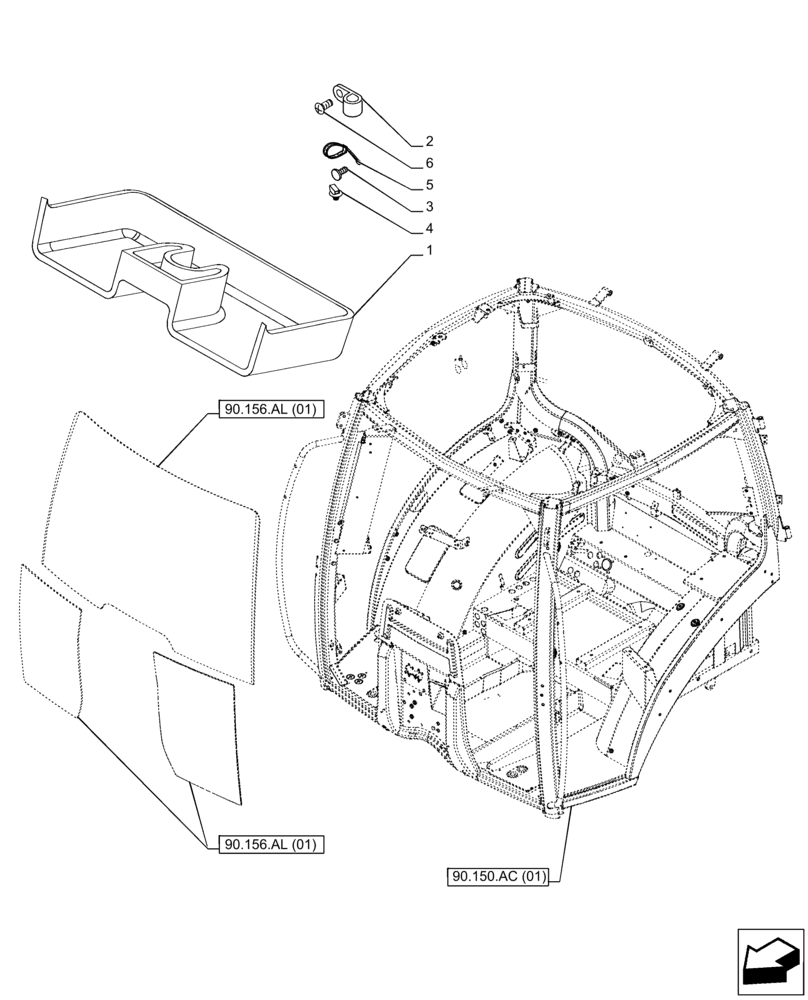

Схема запчастей Case IH PUMA 165 - (90.156.AL[02]) - VAR - 758133, 758142, 758145 - WINDSHIELD, HEATED GLASS, COVERS (90) - PLATFORM, CAB, BODYWORK AND DECALS
6
1
90.156.al (01)
90.156.al (01)
2
3
5
4
90.150.ac (01)
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

87711392

COVER

1шт.

2

86642442

CLAMP,3.2mm, Coat, 7.1mm Bolt Hole, P Type

1шт.

3

81870039

FASTENER,M8 x 1.5 x 22mm

1шт.

4

47056773

RETAINER COLLAR,5mm ID x 19.1mm L x 9.5mm W

1шт.

5

14560287

CABLE TIE,207.00mm L

1шт.

6

87352109

SCREW,Phillips Drive, Pan HD, M10 x 50mm

4шт.
