(90.150.BG[08]) - VAR - 758139, 758141, 758143, 758146 - CAB ROOF, CARRIER, COMPONENTS (ISO MARKET PACKAGE)

Запчасти Case IH PUMA 185 (90.150.BG[08]) - VAR - 758139, 758141, 758143, 758146 - CAB ROOF, CARRIER, COMPONENTS (ISO MARKET PACKAGE) (90) - PLATFORM, CAB, BODYWORK AND DECALS

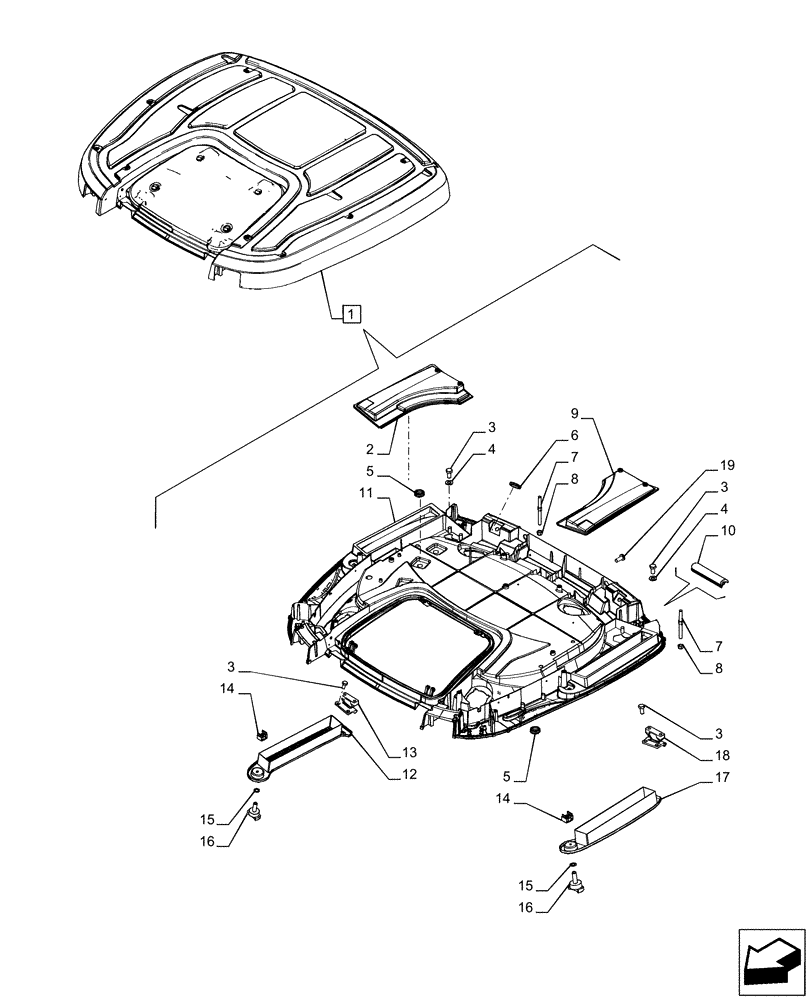

Схема запчастей Case IH PUMA 185 - (90.150.BG[08]) - VAR - 758139, 758141, 758143, 758146 - CAB ROOF, CARRIER, COMPONENTS (ISO MARKET PACKAGE) (90) - PLATFORM, CAB, BODYWORK AND DECALS
3
10
3
19
3
8
17
1
7
15
5
16
18
14
9
8
5
16
3
7
15
4
12
14
2
6
11
4
13
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

NS

NOT SERVICED

Roof ASSY, ISO, Red, With High Visibility Window, Order Components, Incl 2 - 19

1шт.

2

87355892

FILTER COVER

RH

1шт.

3

16043221

BOLT,Hex, M8 x 16mm, Cl 8.8, Full Thd

8шт.

4

14496501

WASHER,8.4mm ID x 17mm OD x 1.6mm Thk

4шт.

5

82032318

PLUG

2шт.

6

87519328

BLANK-OFF PLUG,M32 x 9 x 3.1

1шт.

7

82034115

STUD

2шт.

8

86629542

NUT,M8 x 1.25, Cl 8.8

2шт.

9

87398509

FILTER COVER

LH

1шт.

10

82034370

SEAL

Outer Roof

1шт.

11

84600104

ROOF FRAME

ISO, With High Visibility Window

1шт.

12

87725999

SUPPORT

RH

1шт.

13

82033679

HINGE

RH

1шт.

14

87541213

NUT,Cage, M8

2шт.

15

87524305

RETAINER,7.3mm ID x 12.5mm OD x 0.5mm Thk

2шт.

16

84516592

KNOB

Air Filter

2шт.

17

82033661

SUPPORT

LH

1шт.

18

82033690

HINGE

1шт.

19

87308028

PLUG

Plastic

1шт.
