(33.350.AU[04]) - VAR - 337479, 337480 - ANTILOCK BRAKING SYSTEM (ABS), BRAKE CYLINDER

Запчасти Case IH PUMA 185 (33.350.AU[04]) - VAR - 337479, 337480 - ANTILOCK BRAKING SYSTEM (ABS), BRAKE CYLINDER (33) - BRAKES & CONTROLS

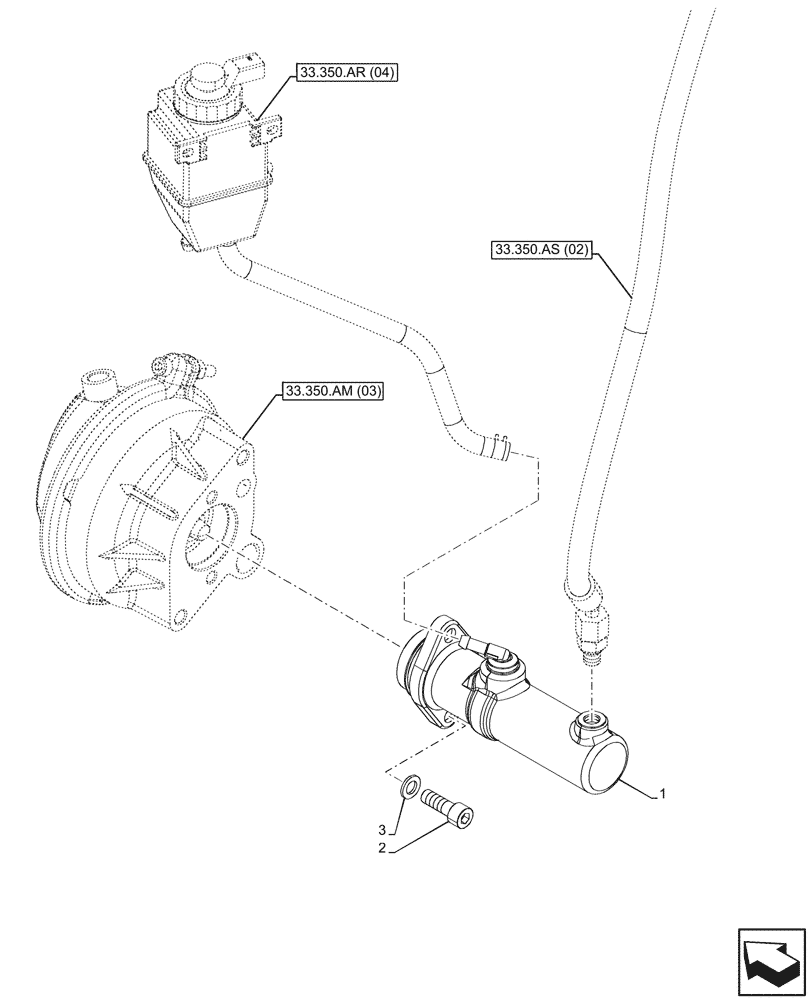

Схема запчастей Case IH PUMA 185 - (33.350.AU[04]) - VAR - 337479, 337480 - ANTILOCK BRAKING SYSTEM (ABS), BRAKE CYLINDER (33) - BRAKES & CONTROLS
33.350.am (03)
3
2
1
33.350.ar (04)
33.350.as (02)
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

47403012

MASTER CYLINDER,48.3mm Stroke

1шт.

2

300442

HEX SOC SCREW,M10 x 30mm, Cl 8.8

2шт.

3

12638621

WASHER,M10 x 18 x 2

2шт.
