(41.101.AB[02]) - VAR - 758267, 758271, 758275, 758278 - STEERING COLUMN, COVERS

Запчасти Case IH PUMA 185 (41.101.AB[02]) - VAR - 758267, 758271, 758275, 758278 - STEERING COLUMN, COVERS (41) - STEERING

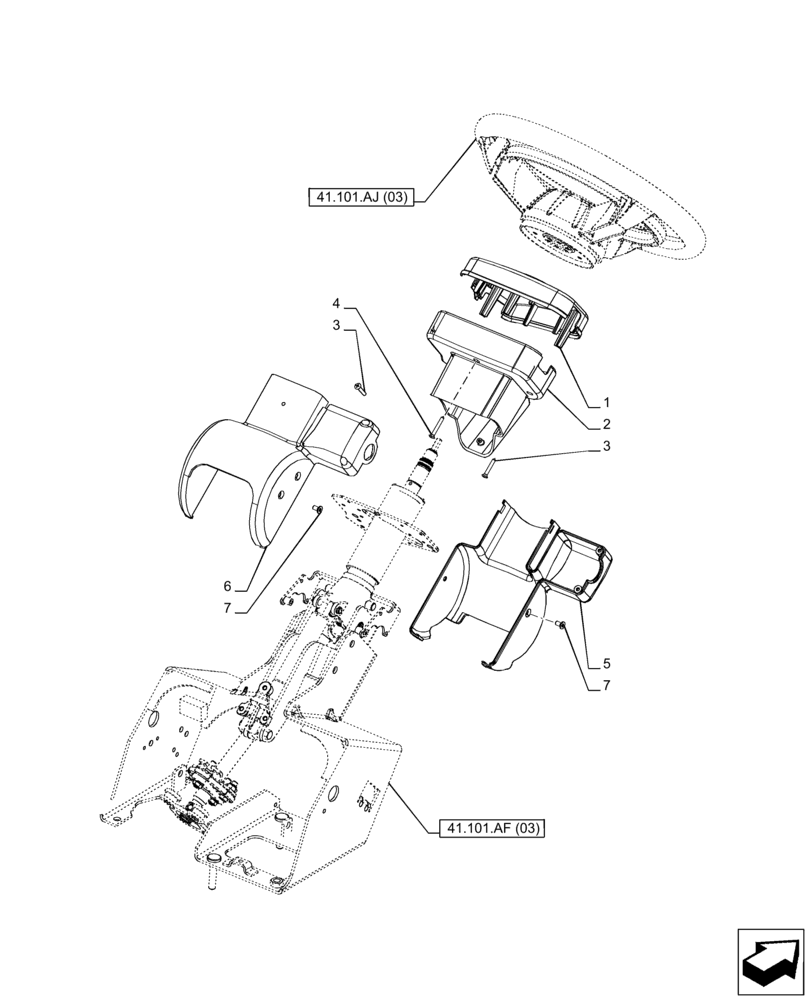

Схема запчастей Case IH PUMA 185 - (41.101.AB[02]) - VAR - 758267, 758271, 758275, 758278 - STEERING COLUMN, COVERS (41) - STEERING
3
5
2
41.101.aj (03)
7
41.101.af (03)
7
1
3
6
4
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

87569648

COVER

Upper

1шт.

2

87568062

COVER

Upper

1шт.

3

83990793

SELF-TAP SCREW,Oval Cross, #10-16 x 1 1/4"

5шт.

4

15957101

SELF-TAP SCREW,Pan, M3.5 x 10.00mm, R40, ZND

1шт.

5

82036446

COVER

Lower

1шт.

6

82036756

COVER

Lower

1шт.

7

84187819

SCREW,Torx Flat Hd, M6 x 12mm, Cl 5.8

6шт.
