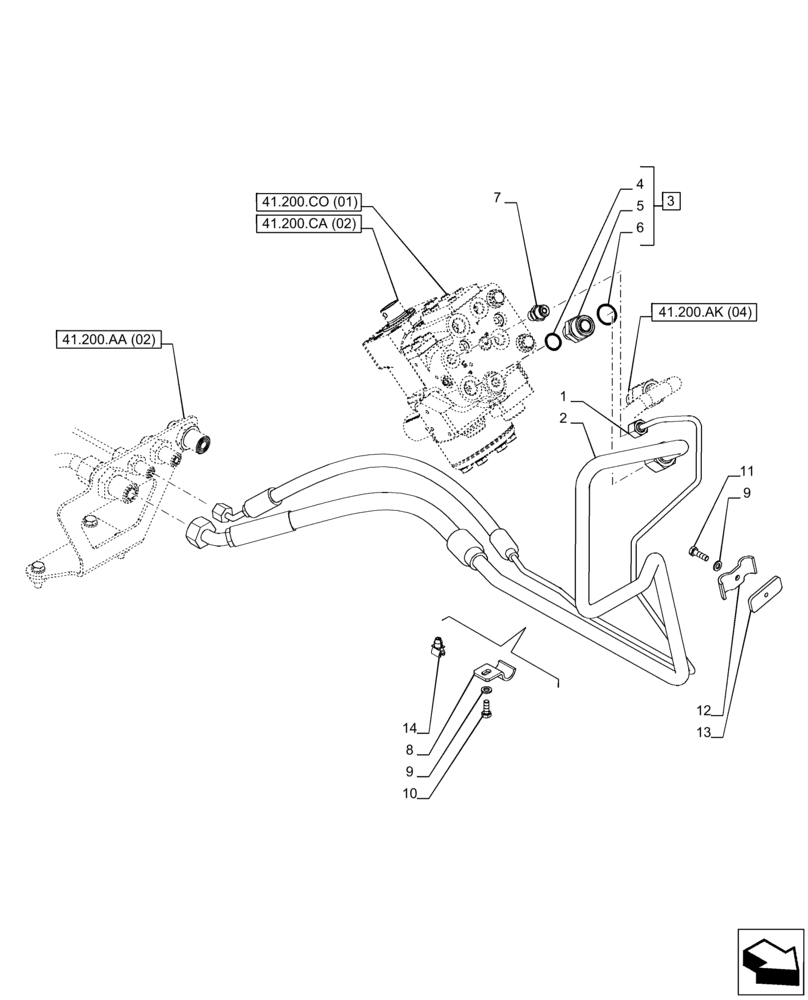

Запчасти Case IH PUMA 185 (41.200.AA[05]) - VAR - 758267, 758271, 758278 - STEERING VALVE, LINE, POWERSHIFT - END YR 02-APR-2014 (41) - STEERING

1

47378320

PIPE

LS Steering

1шт.

2

47458553

PIPE

Supply to Steering Valve

1шт.

3

82016760

HYD CONNECTOR,1"-14 / M18 x 1.5

ASSY, Incl 4 - 6

1шт.

4

83999938

SEAL,15.7mm ID x 20.9mm OD x 1.5mm Thk

1шт.

5

NSS

NOT SOLD SEPARAT

Connector, Incl in 3

1шт.

6

83901443

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

1шт.

7

76076087

FITTING,M12 x 1.5 ORB x 9/16"-18 ORFS

1шт.

8

5178447

BRACKET

1шт.

9

86588450

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

2шт.

10

86977726

BOLT,Hex, M6 x 12mm, Cl 8.8

1шт.

11

86977786

BOLT,Hex, M6 x 1 x 25mm, Cl 8.8

1шт.

12

47370751

CLIP

1шт.

13

84591886

PLATE

1шт.

14

87710266

CLIP,6mm

1шт.
