(90.124.AH[02]) - VAR - 758667 - SEAT, AIR SUSPENSION, ACTIVE LEATHER COMFORT PACK MHR, CUSHION

Запчасти Case IH PUMA 185 (90.124.AH[02]) - VAR - 758667 - SEAT, AIR SUSPENSION, ACTIVE LEATHER COMFORT PACK MHR, CUSHION (90) - PLATFORM, CAB, BODYWORK AND DECALS

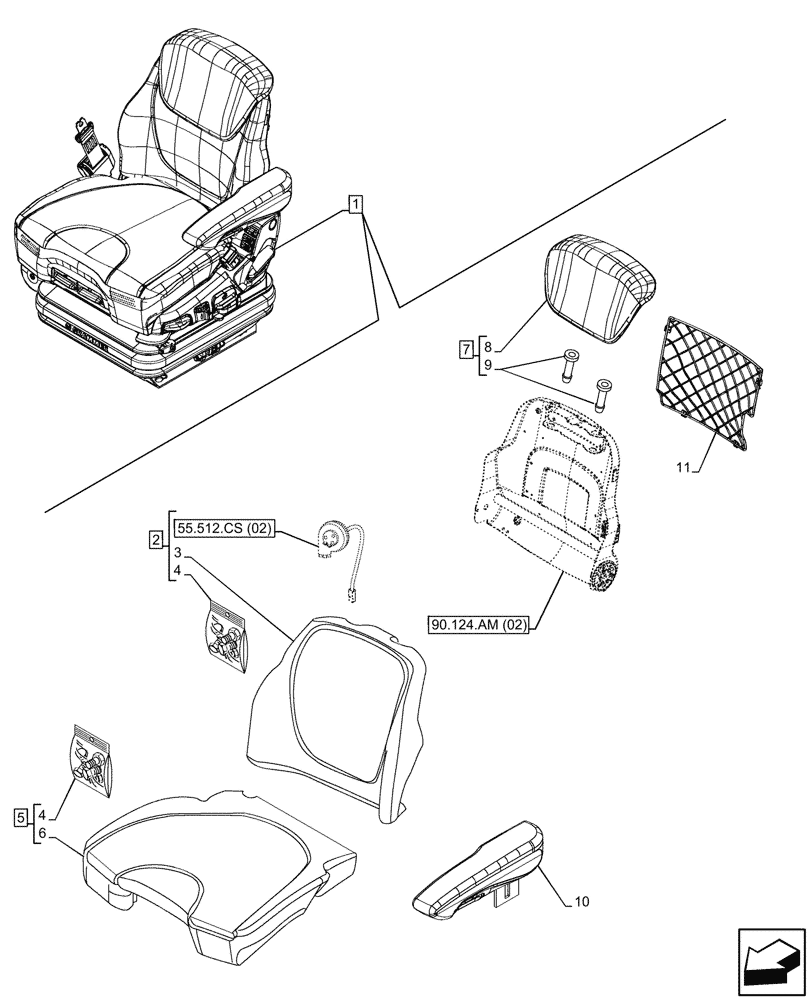

Схема запчастей Case IH PUMA 185 - (90.124.AH[02]) - VAR - 758667 - SEAT, AIR SUSPENSION, ACTIVE LEATHER COMFORT PACK MHR, CUSHION (90) - PLATFORM, CAB, BODYWORK AND DECALS
55.512.cs (02)
10
7
5
9
3
11
4
2
1
6
4
8
90.124.am (02)
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

47725239

DRIVER SEAT

ASSY, Pasubio Verona Scarlet, Active Leather Comfort Pack MHR, Incl 2 - 11

1шт.

2

47897049

CUSHION

ASSY, Incl 3, 4

1шт.

3

NSS

NOT SOLD SEPARAT

Cushion, Incl in 2

1шт.

4

84191200

SET OF PARTS

1шт.

5

47897045

CUSHION

ASSY, Incl 4, 6

1шт.

6

NSS

NOT SOLD SEPARAT

Seat Cushion, Incl in 5

1шт.

7

47897041

SEAT HEADREST

ASSY, Incl 8, 9

1шт.

8

NSS

NOT SOLD SEPARAT

Backrest, Incl in 7

1шт.

9

84191112

GUIDE

1шт.

10

47897038

ARMREST

1шт.

11

47576107

KIT

1шт.
