(90.124.AM[01]) - VAR - 758666 - SEAT, AIR SUSPENSION, DELUXE LEATHER COMFORT PACK MHR, BASE PLATE

Запчасти Case IH PUMA 185 (90.124.AM[01]) - VAR - 758666 - SEAT, AIR SUSPENSION, DELUXE LEATHER COMFORT PACK MHR, BASE PLATE (90) - PLATFORM, CAB, BODYWORK AND DECALS

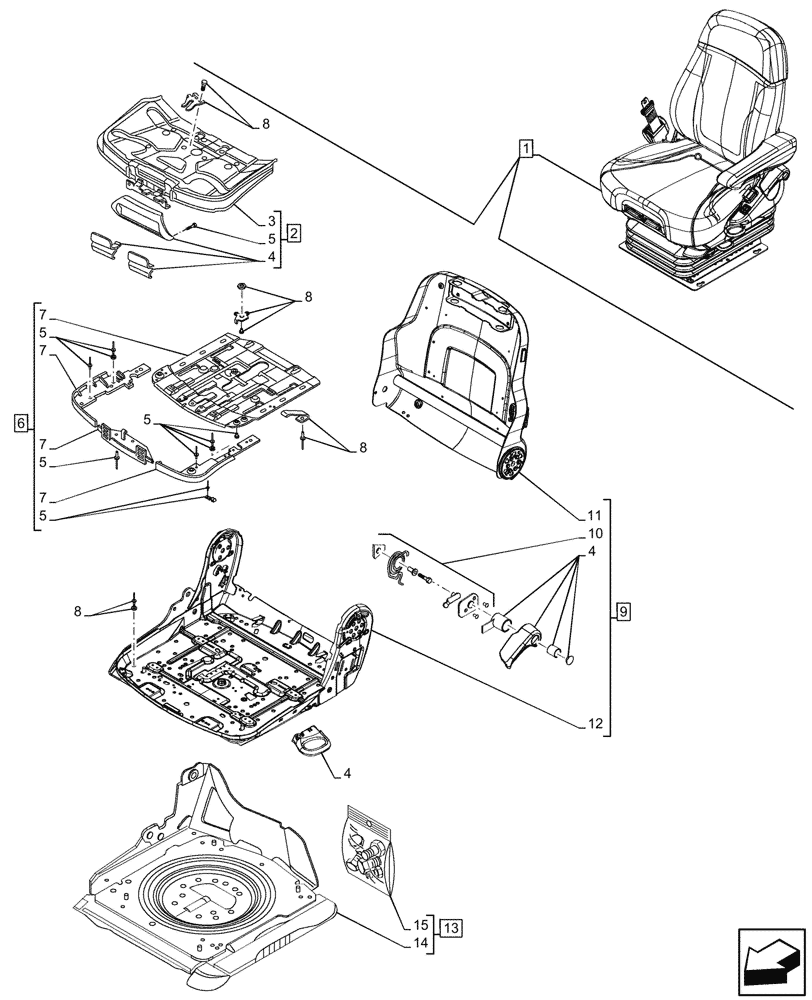

Схема запчастей Case IH PUMA 185 - (90.124.AM[01]) - VAR - 758666 - SEAT, AIR SUSPENSION, DELUXE LEATHER COMFORT PACK MHR, BASE PLATE (90) - PLATFORM, CAB, BODYWORK AND DECALS
8
7
10
14
8
7
5
8
7
5
3
5
7
4
4
13
5
2
4
15
12
1
9
8
5
6
11
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

47544017

DRIVER SEAT

ASSY, Leather Paubio Verona Scarlet, Deluxe Comfort Pack MHR, Incl 2 - 15

1шт.

2

47897080

SERVICE KIT

ASSY, Incl 3 - 5

1шт.

3

NSS

NOT SOLD SEPARAT

Support, Incl in 2

1шт.

4

47891302

ACTUATOR

1шт.

5

84191202

SET OF PARTS

1шт.

6

84302186

SEAT

ASSY, Incl 5, 7

1шт.

7

NSS

NOT SOLD SEPARAT

Seat, Incl in 6

1шт.

8

47891407

SERVICE KIT

1шт.

9

47891522

SERVICE KIT

ASSY, Incl 4, 10 - 12

1шт.

10

NSS

NOT SOLD SEPARAT

Backrest Adjustment, Incl in 9

1шт.

11

NSS

NOT SOLD SEPARAT

Backrest, Incl in 9

1шт.

12

NSS

NOT SOLD SEPARAT

Seat, Incl in 9

1шт.

13

47891496

SERVICE KIT

ASSY, Incl 14, 15

1шт.

14

NSS

NOT SOLD SEPARAT

Support, Incl in 13

1шт.

15

47897033

SERVICE KIT

1шт.
