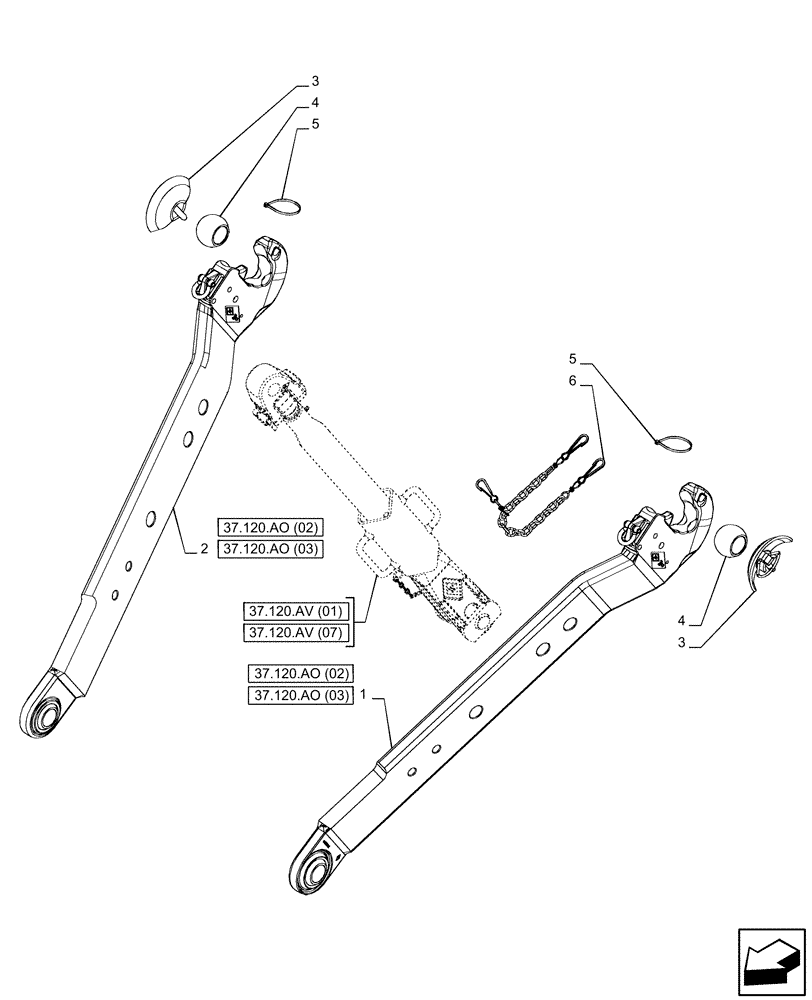

Запчасти Case IH PUMA 185 (37.120.AO[01]) - VAR - 391170, 758071, 758072, 758075, 758076, 758077, 758080, 758081, 758082 - 3 POINT HITCH, LOWER LINK (37) - HITCHES, DRAWBARS & IMPLEMENT COUPLINGS

1

47137107

LOWER LINK

ASSY, LH, Standard

1шт.

See also Figure 37.120.AO 02

1шт.

1

87311376

LOWER LINK

ASSY, LH, Alternative Part

1шт.

Same Usage/Applicability. To be Ordered when P/N 47137107 is not Available

1шт.

See also Figure 37.120.AO 03

1шт.

2

47137104

LOWER LINK

ASSY, RH, Standard

1шт.

See also Figure 37.120.AO 02

1шт.

2

87311374

LOWER LINK

ASSY, RH, Alternative Part

1шт.

Same Usage/Applicability. To be Ordered when P/N 47137104 is not Available

1шт.

See also Figure 37.120.AO 03

1шт.

3

5130779

ECCENTRIC,11mm OD, Shaft Diameter 29.00mm

Shaft Diameter 29.00mm

2шт.

3

5130780

ECCENTRIC,15.5mm OD, Shaft Diameter 37.00mm

15.5mm OD Shaft Diameter 37.00mm

2шт.

4

44017710

BUSHING,37mm ID x 64mm OD x 44.7mm L

2шт.

4

44017819

BUSHING,28.7mm ID x 64mm OD x 44.7mm L

2шт.

5

82001040

CABLE TIE,.19" x 11.5"

2шт.

6

5116063

ROPE,4500mm L

1шт.
