(90.124.AN[01]) - VAR - 758666 - SEAT, AIR SUSPENSION, DELUXE LEATHER COMFORT PACK MHR, SUSPENSION COMPONENTS

Запчасти Case IH PUMA 200 (90.124.AN[01]) - VAR - 758666 - SEAT, AIR SUSPENSION, DELUXE LEATHER COMFORT PACK MHR, SUSPENSION COMPONENTS (90) - PLATFORM, CAB, BODYWORK AND DECALS

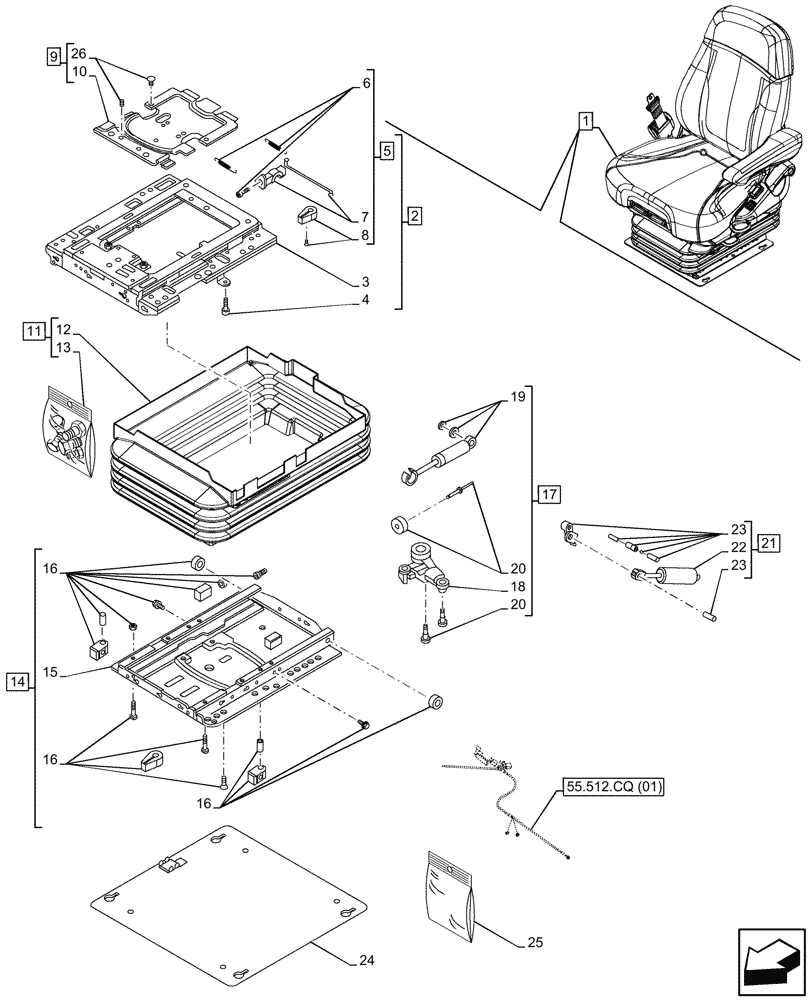

Схема запчастей Case IH PUMA 200 - (90.124.AN[01]) - VAR - 758666 - SEAT, AIR SUSPENSION, DELUXE LEATHER COMFORT PACK MHR, SUSPENSION COMPONENTS (90) - PLATFORM, CAB, BODYWORK AND DECALS
1
14
23
2
3
9
18
24
25
8
7
13
11
21
5
23
20
19
16
12
10
20
22
6
26
15
4
17
16
55.512.cq (01)
16
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

47544017

DRIVER SEAT

ASSY, Leather Paubio Verona Scarlet, Deluxe Comfort Pack MHR, Incl 2 - 26

1шт.

2

47891534

FRAME

ASSY, Incl 3 - 8

1шт.

3

NSS

NOT SOLD SEPARAT

Frame, Incl in 2

1шт.

4

84191010

REPAIR KIT

1шт.

5

47891536

CONTROL

ASSY, Incl 6 - 8

1шт.

6

84191015

REPAIR KIT

1шт.

7

NSS

NOT SOLD SEPARAT

Handle, Incl in 5

1шт.

8

47891537

HANDLE

1шт.

9

84190947

COVER

ASSY, Incl 10, 26

1шт.

10

NSS

NOT SOLD SEPARAT

Cover, Incl in 9

1шт.

11

84281077

BELLOWS

ASSY, Incl 12, 13

1шт.

12

NSS

NOT SOLD SEPARAT

Bellows, Incl in 11

1шт.

13

84191003

REPAIR KIT

1шт.

14

47850695

SUSPENSION

ASSY, Incl 15, 16

1шт.

15

NSS

NOT SOLD SEPARAT

Suspension, Incl in 14

1шт.

16

47851513

SUSPENSION

1шт.

17

84190983

SHOCK ABSORBER

ASSY, Incl 18 - 20

1шт.

18

NSS

NOT SOLD SEPARAT

Lever, Incl in 17

1шт.

19

84190985

SHOCK ABSORBER

1шт.

20

84191002

REPAIR KIT

1шт.

21

47897063

SHOCK ABSORBER

ASSY, Incl 22, 23

1шт.

22

NSS

NOT SOLD SEPARAT

Shock Absorber, Incl in 21

1шт.

23

84253103

REPAIR KIT

1шт.

24

84191021

PLATE

1шт.

25

47850617

REPAIR KIT

1шт.

26

84191006

REPAIR KIT

1шт.
