(55.020.AB[02]) - VAR - 391137, 337426, 337428, 337429, 337430, 337431, 337432, 758017, 758018, 758019, 758020, 758021, 759052 - TRANSMISSION, SPEED SENSOR

Запчасти Case IH PUMA 220 (55.020.AB[02]) - VAR - 391137, 337426, 337428, 337429, 337430, 337431, 337432, 758017, 758018, 758019, 758020, 758021, 759052 - TRANSMISSION, SPEED SENSOR (55) - ELECTRICAL SYSTEMS

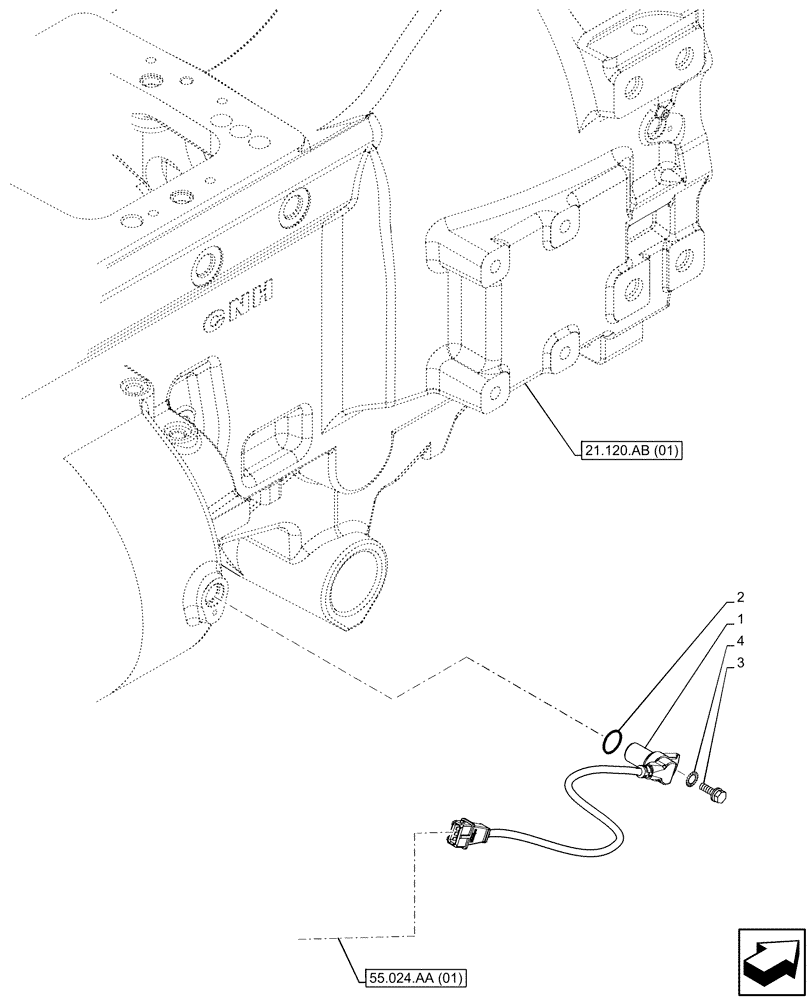

Схема запчастей Case IH PUMA 220 - (55.020.AB[02]) - VAR - 391137, 337426, 337428, 337429, 337430, 337431, 337432, 758017, 758018, 758019, 758020, 758021, 759052 - TRANSMISSION, SPEED SENSOR (55) - ELECTRICAL SYSTEMS
21.120.ab (01)
2
4
1
3
55.024.aa (01)
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

47766973

SENSOR

Speed

1шт.

2

129979

O-RING,0.103" Thk x 0.674" ID, -115, Cl 5, 75 Duro

1шт.

3

14305720

HEX SOC SCREW,M6 x 14mm, Cl 8.8, Full Thd

1шт.

4

12601274

WAVE WASHER,6.40mm ID x 12mm OD x 0.50mm, 2.60mm H, STL, DAC

1шт.
