(1-12) - PICTORIAL INDEX, LUBRICATION HYDRAULICS

Запчасти Case IH 9370 QUADTRAC (1-12) - PICTORIAL INDEX, LUBRICATION HYDRAULICS (00) - PICTORIAL INDEX

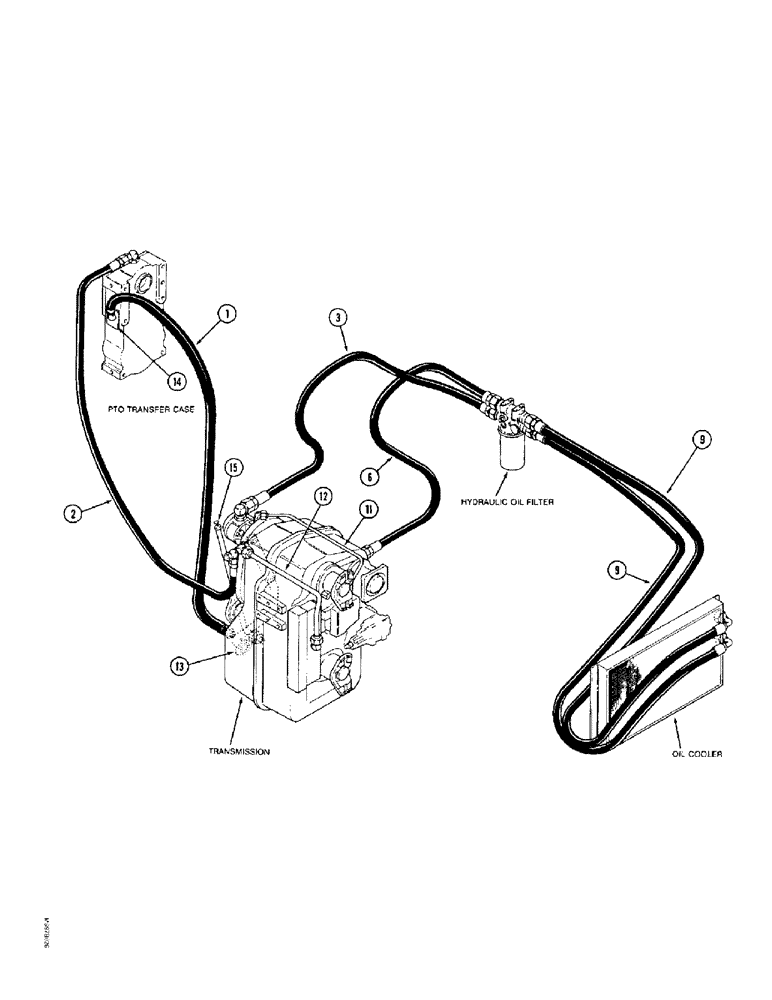

Схема запчастей Case IH 9370 QUADTRAC - (1-12) - PICTORIAL INDEX, LUBRICATION HYDRAULICS (00) - PICTORIAL INDEX
13
12
14
9
11
9
3
15
2
1
6
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

PTO Transfer Case Return Hose, 6-43

1шт.

2

PTO Transfer Case Lubrication Hose, 6-43

1шт.

3

Transmission Lubrication Supply Hose, 6-41

1шт.

6

Transmission Lubrication Supply Hose, 6-41

1шт.

9

Oil Cooler Supply Hose, 6-41

1шт.

11

Transmission Lubrication Tube, 6-43

1шт.

12

Transmission Lubrication Tube, 6-43

1шт.

13

Transmission Lubrication Supply Tube, 6-41

1шт.

14

PTO Transfer Case Adapter Tube, 6-43

1шт.

15

Transmission Fill Tube, 6-41

1шт.
