(23.314.180) - DRIVE SHAFT ASSY, 8.5C

Запчасти Case IH QUADTRAC 470 (23.314.180) - DRIVE SHAFT ASSY, 8.5C (23) - FOUR WHEEL DRIVE SYSTEM

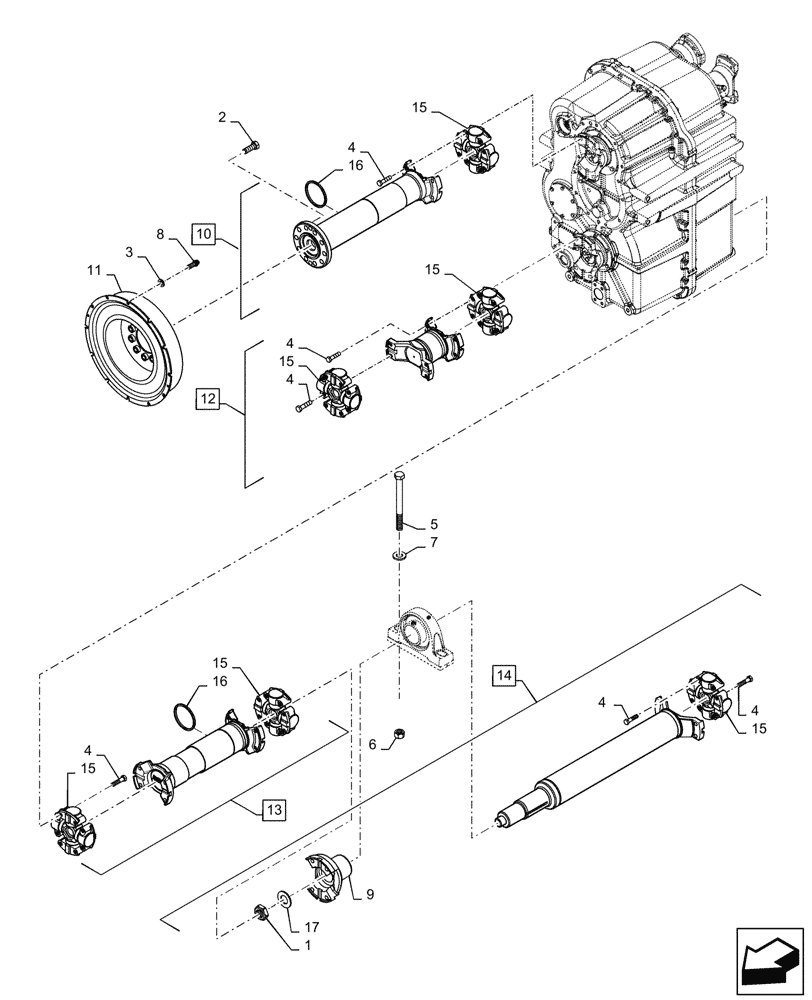

Схема запчастей Case IH QUADTRAC 470 - (23.314.180) - DRIVE SHAFT ASSY, 8.5C (23) - FOUR WHEEL DRIVE SYSTEM
16
4
11
9
15
6
8
13
10
1
3
5
7
12
4
14
15
15
2
4
17
4
4
16
15
15
4
15
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

131-487

LOCK NUT,1 1/4"-18

1шт.

2

426-1028

BOLT,Hex, 5/8" - 11 x 1-3/4", Gr 8

10шт.

3

496-81010

WASHER

0.469" x 1" x 0.105"

12шт.

4

827-12060

BOLT,Hex, M12 x 1.75 x 60mm, Cl 10.9

48шт.

5

827-20250

BOLT,Hex, M20 x 2.5 x 250mm, Cl 10.9

2шт.

6

829-1420

NUT,M20, Cl 10

2шт.

7

896-15020

WASHER,22mm ID x 44mm OD x 5mm Thk

2шт.

8

47379836

12 PT SCREW

Flange, 7/16" x 1"

12шт.

9

407633A1

YOKE

Driveshaft, 8.5C

1шт.

10

87440503

DRIVE SHAFT

Engine, 8.5C, Incl 4, 15 - 16

1шт.

11

378758A2

DAMPER

Vibration

1шт.

12

402191A1

DRIVE SHAFT

Front Axle, 8.5C, Incl 4, 15

1шт.

13

402192A1

DRIVE SHAFT

Articulation, 8.5C, Incl 4, 15 - 16

1шт.

14

402193A1

DRIVE SHAFT

Rear Axle, 8.5C, Incl 1, 4, 15, 17, 18, Serial Range: -ZGF308725

1шт.

14

47755882

DRIVE SHAFT

Rear Axle, 8.5C, Incl 1, 4, 15, 17, 18, Start Serial: ZGF308726

1шт.

15

309093A1

UNIVERSAL JOINT

U-Joint, 8.5C

6шт.

16

404151A1

SEAL,76.2mm ID x 93.98mm OD x 11.68mm Thk

Drive Shaft Wiper

2шт.

17

396-11131

WASHER,1 5/16" x 2 1/2" x .150"

1шт.
