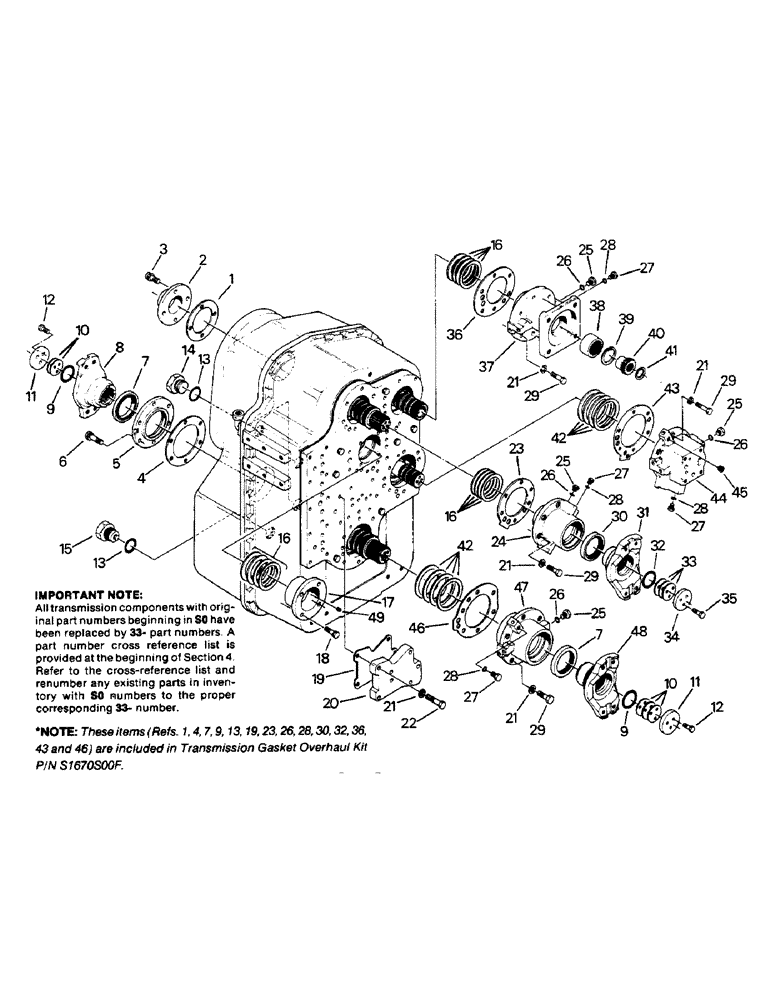

Запчасти Case IH 9110 (04-69) - 33-1470T1 TRANSMISSION ASSEMBLY (04) - Drive Train

1

33-1470T1

GASKET

- PTO shaft cover

1шт.

These Refs. (Refs. 1, 6, 8, 12, 18, 29 and 37) are included in Transmission Gasket Overhaul Kit P/N S1670S00F.

1шт.

All transmission components with original part numbers beginning in S0 have been replaced by 33- part numbers. A part number cross reference list is provided at the beginning of Section 4. Refer to the cross-reference list and renumber any existing parts in inventory with S0 numbers to the proper corresponding 33- number.

1шт.

2

33-1442T1

COVER

- PTO shaft (Without PTO only)

1шт.

All transmission components with original part numbers beginning in S0 have been replaced by 33- part numbers. A part number cross reference list is provided at the beginning of Section 4. Refer to the cross-reference list and renumber any existing parts in inventory with S0 numbers to the proper corresponding 33- number.

1шт.

3

SM8124230

BOLT

CAPSCREW, M12 x 1.25 x 30 G-8.8

4шт.

4

33-1417T1

GASKET

- bearing retainer

1шт.

These Refs. (Refs. 1, 6, 8, 12, 18, 29 and 37) are included in Transmission Gasket Overhaul Kit P/N S1670S00F.

1шт.

All transmission components with original part numbers beginning in S0 have been replaced by 33- part numbers. A part number cross reference list is provided at the beginning of Section 4. Refer to the cross-reference list and renumber any existing parts in inventory with S0 numbers to the proper corresponding 33- number.

1шт.

5

33-1418T1

RETAINER

- bearing

1шт.

All transmission components with original part numbers beginning in S0 have been replaced by 33- part numbers. A part number cross reference list is provided at the beginning of Section 4. Refer to the cross-reference list and renumber any existing parts in inventory with S0 numbers to the proper corresponding 33- number.

1шт.

6

SM8124230

BOLT

CAPSCREW, M12 x 1.25 x 30 G-8.8

6шт.

7

33-1428T1

OIL SEAL

SEAL - output shaft

2шт.

These Refs. (Refs. 1, 6, 8, 12, 18, 29 and 37) are included in Transmission Gasket Overhaul Kit P/N S1670S00F.

1шт.

All transmission components with original part numbers beginning in S0 have been replaced by 33- part numbers. A part number cross reference list is provided at the beginning of Section 4. Refer to the cross-reference list and renumber any existing parts in inventory with S0 numbers to the proper corresponding 33- number.

1шт.

8

33-1419T1

YOKE

- output, rear

1шт.

All transmission components with original part numbers beginning in S0 have been replaced by 33- part numbers. A part number cross reference list is provided at the beginning of Section 4. Refer to the cross-reference list and renumber any existing parts in inventory with S0 numbers to the proper corresponding 33- number.

1шт.

9

33-1422T1

O-RING

O-RING - yoke sealing

2шт.

These Refs. (Refs. 1, 6, 8, 12, 18, 29 and 37) are included in Transmission Gasket Overhaul Kit P/N S1670S00F.

1шт.

All transmission components with original part numbers beginning in S0 have been replaced by 33- part numbers. A part number cross reference list is provided at the beginning of Section 4. Refer to the cross-reference list and renumber any existing parts in inventory with S0 numbers to the proper corresponding 33- number.

1шт.

10

33-1450T1

SHIM

- yoke (0.10 MM)

1шт.

All transmission components with original part numbers beginning in S0 have been replaced by 33- part numbers. A part number cross reference list is provided at the beginning of Section 4. Refer to the cross-reference list and renumber any existing parts in inventory with S0 numbers to the proper corresponding 33- number.

1шт.

33-1451T1

SHIM

- yoke (0.30 MM)

1шт.

All transmission components with original part numbers beginning in S0 have been replaced by 33- part numbers. A part number cross reference list is provided at the beginning of Section 4. Refer to the cross-reference list and renumber any existing parts in inventory with S0 numbers to the proper corresponding 33- number.

1шт.

11

33-1432T1

WASHER

- yoke retainer

1шт.

All transmission components with original part numbers beginning in S0 have been replaced by 33- part numbers. A part number cross reference list is provided at the beginning of Section 4. Refer to the cross-reference list and renumber any existing parts in inventory with S0 numbers to the proper corresponding 33- number.

1шт.

12

SM8134235

BOLT

CAPSCREW, M12, 1.25 x 35 G-10.9

6шт.

13

S1080S00F

O-RING

- plug

4шт.

14

S1010S00F

PLUG, DRAIN

PLUG - hex head (Includes ref. 13)

3шт.

15

S1090S00F

PLUG

- magnetic (Includes ref. 13)

1шт.

16

33-1456T1

SHIM

- bearing (0.10 MM)

1шт.

All transmission components with original part numbers beginning in S0 have been replaced by 33- part numbers. A part number cross reference list is provided at the beginning of Section 4. Refer to the cross-reference list and renumber any existing parts in inventory with S0 numbers to the proper corresponding 33- number.

1шт.

33-1457T1

SHIM

- bearing (0.30 MM)

1шт.

All transmission components with original part numbers beginning in S0 have been replaced by 33- part numbers. A part number cross reference list is provided at the beginning of Section 4. Refer to the cross-reference list and renumber any existing parts in inventory with S0 numbers to the proper corresponding 33- number.

1шт.

33-1458T1

SHIM

- bearing (0.50 MM)

1шт.

All transmission components with original part numbers beginning in S0 have been replaced by 33- part numbers. A part number cross reference list is provided at the beginning of Section 4. Refer to the cross-reference list and renumber any existing parts in inventory with S0 numbers to the proper corresponding 33- number.

1шт.

33-1459T1

SHIM

- bearing (0.70 MM)

1шт.

All transmission components with original part numbers beginning in S0 have been replaced by 33- part numbers. A part number cross reference list is provided at the beginning of Section 4. Refer to the cross-reference list and renumber any existing parts in inventory with S0 numbers to the proper corresponding 33- number.

1шт.

33-1474T1

SHIM

- bearing (0.15 MM)

1шт.

All transmission components with original part numbers beginning in S0 have been replaced by 33- part numbers. A part number cross reference list is provided at the beginning of Section 4. Refer to the cross-reference list and renumber any existing parts in inventory with S0 numbers to the proper corresponding 33- number.

1шт.

17

33-1437T1

RETAINER

- bearing

1шт.

All transmission components with original part numbers beginning in S0 have been replaced by 33- part numbers. A part number cross reference list is provided at the beginning of Section 4. Refer to the cross-reference list and renumber any existing parts in inventory with S0 numbers to the proper corresponding 33- number.

1шт.

18

SM8124050

BOLT

CAPSCREW, M10 x 1.25 x 50 G-8.8

4шт.

19

S1610S00F

GASKET

- oil supply plate

1шт.

These Refs. (Refs. 1, 6, 8, 12, 18, 29 and 37) are included in Transmission Gasket Overhaul Kit P/N S1670S00F.

1шт.

20

S1600S00F

LARGE PLATE

PLATE - oil supply

1шт.

21

SM8915140

PLATE, LOCKING

WASHER - lock, M10

31шт.

22

SM8124070

BOLT

CAPSCREW, M10 x 1.25 x 70 G-8.8

7шт.

23

33-1440T1

GASKET

- oil supply cover

1шт.

These Refs. (Refs. 1, 6, 8, 12, 18, 29 and 37) are included in Transmission Gasket Overhaul Kit P/N S1670S00F.

1шт.

24

33-1441T1

HOUSING

COVER - oil supply

1шт.

25

S1390S00F

PLUG

- oil port (Includes ref. 26)

8шт.

26

S1320S00F

O-RING

- plug

8шт.

These Refs. (Refs. 1, 6, 8, 12, 18, 29 and 37) are included in Transmission Gasket Overhaul Kit P/N S1670S00F.

1шт.

27

S1030S00F

PLUG

- oil port (Includes ref. 28)

5шт.

28

S1040S00F

O-RING

- plug

5шт.

These Refs. (Refs. 1, 6, 8, 12, 18, 29 and 37) are included in Transmission Gasket Overhaul Kit P/N S1670S00F.

1шт.

All transmission components with original part numbers beginning in S0 have been replaced by 33- part numbers. A part number cross reference list is provided at the beginning of Section 4. Refer to the cross-reference list and renumber any existing parts in inventory with S0 numbers to the proper corresponding 33- number.

1шт.

29

SM8124060

BOLT

CAPSCREW, M10 x 1.25 x 60 MM G-8.8

24шт.

30

33-1412T1

OIL SEAL

SEAL - input yoke

1шт.

These Refs. (Refs. 1, 6, 8, 12, 18, 29 and 37) are included in Transmission Gasket Overhaul Kit P/N S1670S00F.

1шт.

All transmission components with original part numbers beginning in S0 have been replaced by 33- part numbers. A part number cross reference list is provided at the beginning of Section 4. Refer to the cross-reference list and renumber any existing parts in inventory with S0 numbers to the proper corresponding 33- number.

1шт.

31

33-1409T1

LINKAGE YOKE

YOKE - input

1шт.

All transmission components with original part numbers beginning in S0 have been replaced by 33- part numbers. A part number cross reference list is provided at the beginning of Section 4. Refer to the cross-reference list and renumber any existing parts in inventory with S0 numbers to the proper corresponding 33- number.

1шт.

32

33-1414T1

O-RING,0.21" Thk x 1.725" ID, -327, Cl 5, 75 Duro

- yoke sealing

1шт.

These Refs. (Refs. 1, 6, 8, 12, 18, 29 and 37) are included in Transmission Gasket Overhaul Kit P/N S1670S00F.

1шт.

All transmission components with original part numbers beginning in S0 have been replaced by 33- part numbers. A part number cross reference list is provided at the beginning of Section 4. Refer to the cross-reference list and renumber any existing parts in inventory with S0 numbers to the proper corresponding 33- number.

1шт.

33

33-1464T1

SHIM

- bearing (0.10 MM)

1шт.

All transmission components with original part numbers beginning in S0 have been replaced by 33- part numbers. A part number cross reference list is provided at the beginning of Section 4. Refer to the cross-reference list and renumber any existing parts in inventory with S0 numbers to the proper corresponding 33- number.

1шт.

33-1465T1

SHIM

- bearing (0.30 MM)

1шт.

33-1466T1

SHIM

- bearing (0.70 MM)

1шт.

All transmission components with original part numbers beginning in S0 have been replaced by 33- part numbers. A part number cross reference list is provided at the beginning of Section 4. Refer to the cross-reference list and renumber any existing parts in inventory with S0 numbers to the proper corresponding 33- number.

1шт.

34

33-1413T1

WASHER

- yoke retainer

1шт.

All transmission components with original part numbers beginning in S0 have been replaced by 33- part numbers. A part number cross reference list is provided at the beginning of Section 4. Refer to the cross-reference list and renumber any existing parts in inventory with S0 numbers to the proper corresponding 33- number.

1шт.

35

SM8134035

BOLT

CAPSCREW, M10 x 1.25 x 35 MM G-10.9

3шт.

36

33-1468T1

GASKET

- pump support

1шт.

All transmission components with original part numbers beginning in S0 have been replaced by 33- part numbers. A part number cross reference list is provided at the beginning of Section 4. Refer to the cross-reference list and renumber any existing parts in inventory with S0 numbers to the proper corresponding 33- number.

1шт.

37

33-1443T1

SUPPORT

- oil pump

1шт.

All transmission components with original part numbers beginning in S0 have been replaced by 33- part numbers. A part number cross reference list is provided at the beginning of Section 4. Refer to the cross-reference list and renumber any existing parts in inventory with S0 numbers to the proper corresponding 33- number.

1шт.

38

33-1444T1

COUPLING

- pump adapter

1шт.

All transmission components with original part numbers beginning in S0 have been replaced by 33- part numbers. A part number cross reference list is provided at the beginning of Section 4. Refer to the cross-reference list and renumber any existing parts in inventory with S0 numbers to the proper corresponding 33- number.

1шт.

39

33-1445T1

RING, SNAP

RING - snap

1шт.

All transmission components with original part numbers beginning in S0 have been replaced by 33- part numbers. A part number cross reference list is provided at the beginning of Section 4. Refer to the cross-reference list and renumber any existing parts in inventory with S0 numbers to the proper corresponding 33- number.

1шт.

40

33-1448T1

ADAPTER

- pump drive

1шт.

All transmission components with original part numbers beginning in S0 have been replaced by 33- part numbers. A part number cross reference list is provided at the beginning of Section 4. Refer to the cross-reference list and renumber any existing parts in inventory with S0 numbers to the proper corresponding 33- number.

1шт.

41

33-1446T1

RING, SNAP

RING - snap

1шт.

All transmission components with original part numbers beginning in S0 have been replaced by 33- part numbers. A part number cross reference list is provided at the beginning of Section 4. Refer to the cross-reference list and renumber any existing parts in inventory with S0 numbers to the proper corresponding 33- number.

1шт.

42

33-1460T1

SHIM

- bearing (0.10 MM)

1шт.

All transmission components with original part numbers beginning in S0 have been replaced by 33- part numbers. A part number cross reference list is provided at the beginning of Section 4. Refer to the cross-reference list and renumber any existing parts in inventory with S0 numbers to the proper corresponding 33- number.

1шт.

33-1461T1

SHIM

- bearing (0.30 MM)

1шт.

All transmission components with original part numbers beginning in S0 have been replaced by 33- part numbers. A part number cross reference list is provided at the beginning of Section 4. Refer to the cross-reference list and renumber any existing parts in inventory with S0 numbers to the proper corresponding 33- number.

1шт.

33-1462T1

SHIM

- bearing (0.50 MM)

1шт.

All transmission components with original part numbers beginning in S0 have been replaced by 33- part numbers. A part number cross reference list is provided at the beginning of Section 4. Refer to the cross-reference list and renumber any existing parts in inventory with S0 numbers to the proper corresponding 33- number.

1шт.

33-1463T1

SHIM

- bearing (0.70 MM)

1шт.

All transmission components with original part numbers beginning in S0 have been replaced by 33- part numbers. A part number cross reference list is provided at the beginning of Section 4. Refer to the cross-reference list and renumber any existing parts in inventory with S0 numbers to the proper corresponding 33- number.

1шт.

33-1475T1

SHIM

- bearing (0.15 MM)

1шт.

All transmission components with original part numbers beginning in S0 have been replaced by 33- part numbers. A part number cross reference list is provided at the beginning of Section 4. Refer to the cross-reference list and renumber any existing parts in inventory with S0 numbers to the proper corresponding 33- number.

1шт.

43

33-1433T1

GASKET

- clutch collector

1шт.

These Refs. (Refs. 1, 6, 8, 12, 18, 29 and 37) are included in Transmission Gasket Overhaul Kit P/N S1670S00F.

1шт.

All transmission components with original part numbers beginning in S0 have been replaced by 33- part numbers. A part number cross reference list is provided at the beginning of Section 4. Refer to the cross-reference list and renumber any existing parts in inventory with S0 numbers to the proper corresponding 33- number.

1шт.

44

33-1438T1

CLUTCH

COLLECTOR - clutch

1шт.

All transmission components with original part numbers beginning in S0 have been replaced by 33- part numbers. A part number cross reference list is provided at the beginning of Section 4. Refer to the cross-reference list and renumber any existing parts in inventory with S0 numbers to the proper corresponding 33- number.

1шт.

45

STX99700F

PLUG

1шт.

46

33-1426T1

GASKET

- bearing retainer

1шт.

These Refs. (Refs. 1, 6, 8, 12, 18, 29 and 37) are included in Transmission Gasket Overhaul Kit P/N S1670S00F.

1шт.

All transmission components with original part numbers beginning in S0 have been replaced by 33- part numbers. A part number cross reference list is provided at the beginning of Section 4. Refer to the cross-reference list and renumber any existing parts in inventory with S0 numbers to the proper corresponding 33- number.

1шт.

47

33-1427T1

BEARING CARRIER

RETAINER - bearing

1шт.

All transmission components with original part numbers beginning in S0 have been replaced by 33- part numbers. A part number cross reference list is provided at the beginning of Section 4. Refer to the cross-reference list and renumber any existing parts in inventory with S0 numbers to the proper corresponding 33- number.

1шт.

48

33-1429T1

YOKE

- output, rear

1шт.

All transmission components with original part numbers beginning in S0 have been replaced by 33- part numbers. A part number cross reference list is provided at the beginning of Section 4. Refer to the cross-reference list and renumber any existing parts in inventory with S0 numbers to the proper corresponding 33- number.

1шт.

49

33-1439T1

PLUG

- orifice

2шт.

All transmission components with original part numbers beginning in S0 have been replaced by 33- part numbers. A part number cross reference list is provided at the beginning of Section 4. Refer to the cross-reference list and renumber any existing parts in inventory with S0 numbers to the proper corresponding 33- number.

1шт.
