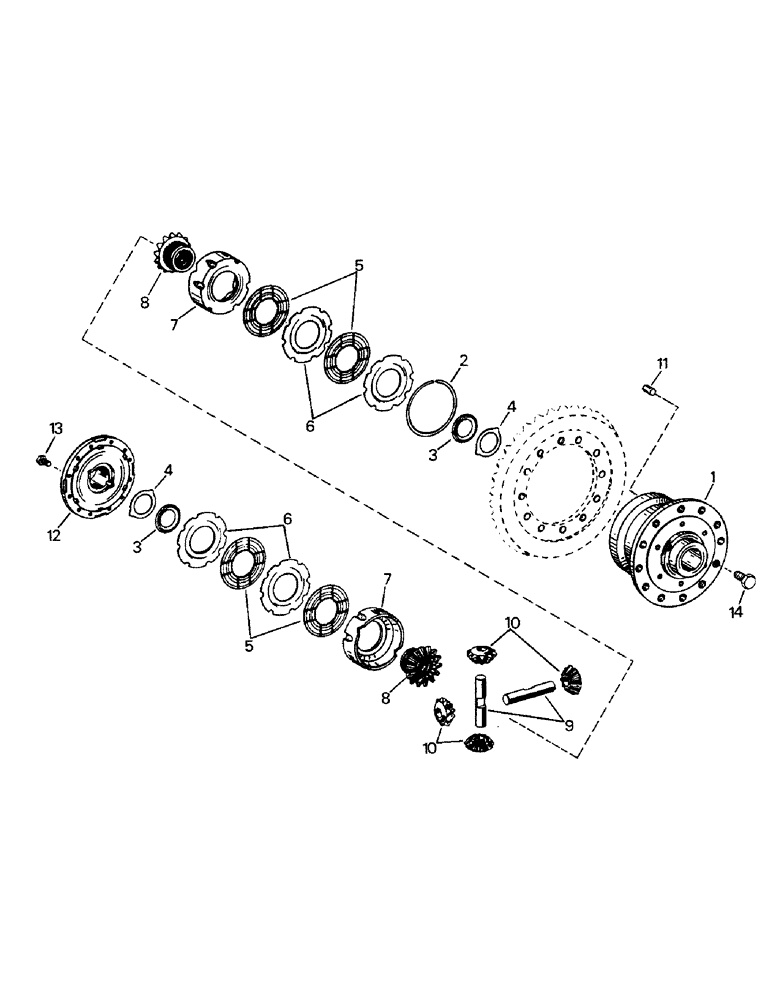

Запчасти Case IH 9110 (04-92) - DIFFERENTIAL ASSEMBLY, MODEL AP-3445 ADJUSTABLE BAR (04) - Drive Train
1
7
12
3
6
14
10
6
3
7
8
4
9
4
11
10
5
5
13
8
2
FIT
1:1
100%
№
Артикул
Название
Примечание
Количество
33-1111T91
DIFFERENTIAL
ASSEMBLY, Includes: Ref. 1 - 14
1шт.
1
33-1094T1
CASE
- differential
1шт.
2
33-1095T1
RING, SNAP
RING - snap
1шт.
3
33-1096T1
WASHER
- thrust
2шт.
4
33-1097T1
WASHER
- thrust
2шт.
5
33-1098T1
PLATE
- outer friction (2.7 MM)
4шт.
33-1099T1
PLATE
- outer friction (2.8 MM)
1шт.
33-1100T1
PLATE
- outer friction (2.9 MM)
1шт.
33-1101T1
PLATE
- outer friction (3.0 MM)
1шт.
6
33-1102T1
PLATE
- inner friction
4шт.
7
33-1103T1
PLATE
- pressure
2шт.
8
33-1104T1
GEAR
- side
2шт.
9
33-1105T1
SHAFT
- pinion
2шт.
10
33-1106T1
GEAR
- pinion
4шт.
11
33-1107T1
DOWEL
PIN - dowel
12шт.
12
33-1108T1
COVER
- differential
1шт.
13
33-1109T1
LOCK SCREW
CAPSCREW
12шт.
14
33-1110T1
LOCK SCREW
CAPSCREW
12шт.
