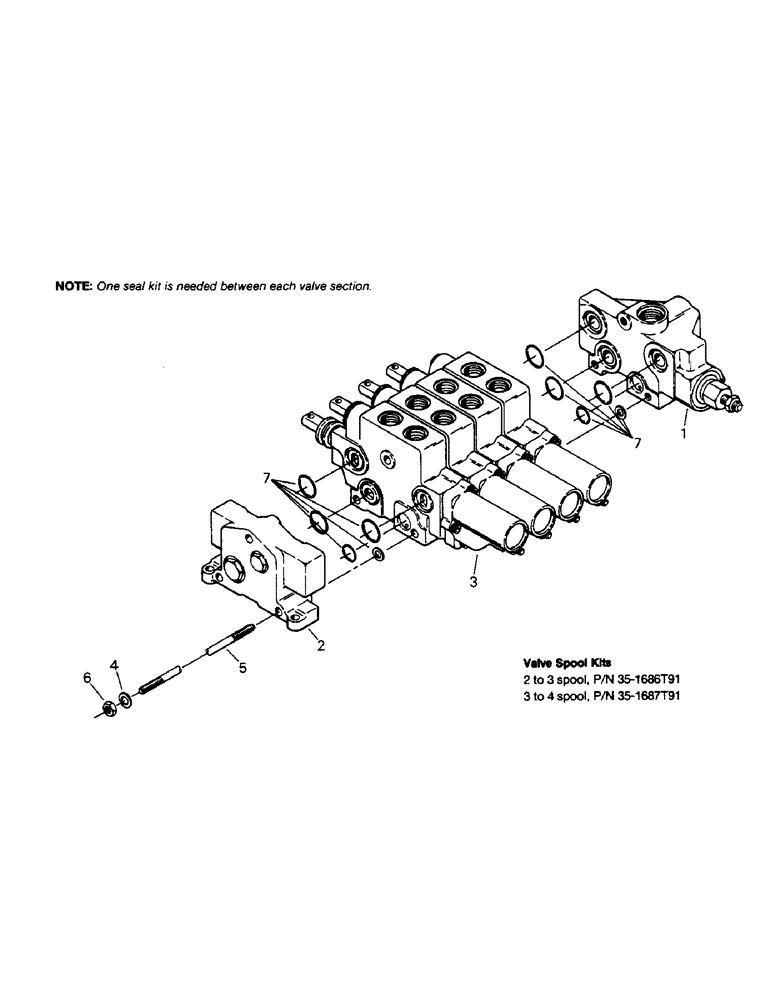

Запчасти Case IH 9110 (08-17) - CONTROL VALVE ASSEMBLY (07) - HYDRAULICS

50-2948T92

VALVE, CONTROL

VALVE ASSEMBLY - control (2 spool) (50-2948T91), Includes: Ref. 1 - 7

1шт.

Old part can be used prior to serial number break only. When stock is depleted, use new on all.

1шт.

50-2949T92

VALVE, CONTROL

VALVE ASSEMBLY - control (3 spool) (50-2949T91), Includes: Ref. 1 - 7

1шт.

Old part can be used prior to serial number break only. When stock is depleted, use new on all.

1шт.

50-2950T92

VALVE

ASSEMBLY - control (4 spool) (50-2950T91), Includes: Ref. 1 - 7

1шт.

Old part can be used prior to serial number break only. When stock is depleted, use new on all.

1шт.

1

BODY ASSEMBLY - inlet (See Fig. 8-18)

1шт.

2

50-2584T1

COVER

- end

1шт.

3

SECTION ASSEMBLY - float (Quantity 3 with 3-spool valve) (Quantity 4 with 4-spool valve) (See Fig. 8-19)

2шт.

4

19-117

LOCK WASHER,3/8"

3/8"

3шт.

5

50-2727T1

STUD

(2-spool valve)

3шт.

50-2658T1

STUD

(3-spool valve)

1шт.

50-2659T1

STUD

(4-spool valve)

1шт.

6

19-78

SPECIAL NUT,3/8"-16, G5

- 3/8 UNC G-B

3шт.

7

2-3792T1

SEAL KIT

- seal (Quantity 4 with 3-spool valve) (Quantity 5 with 4-spool valve)

3шт.

One seal kit is needed between each valve section.

1шт.
