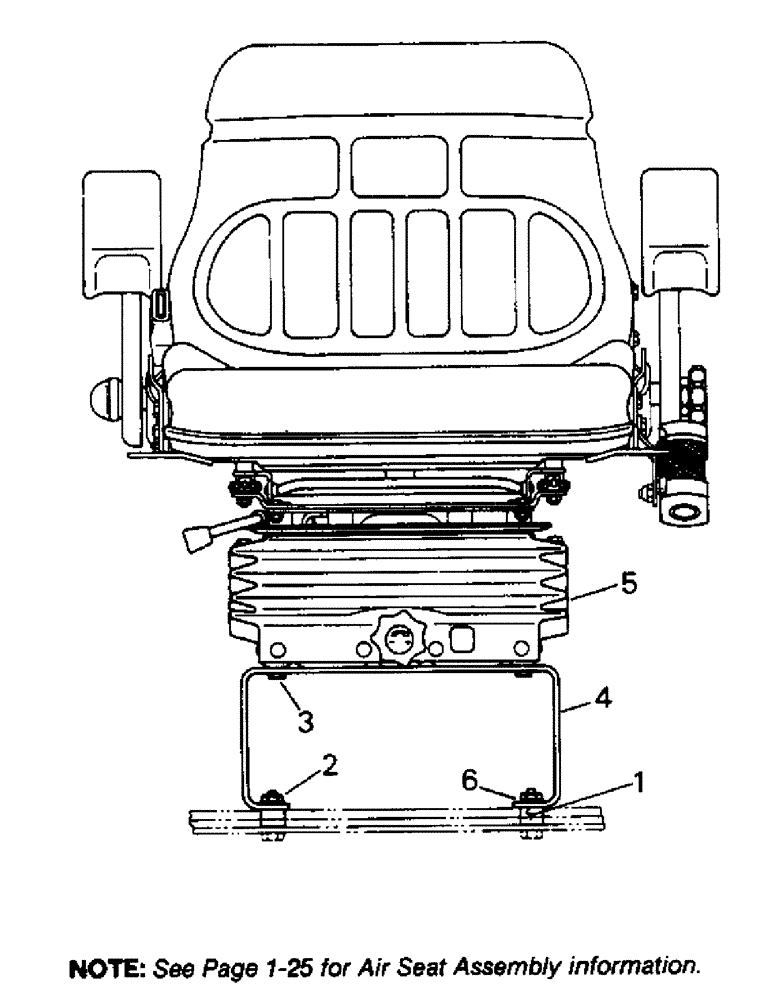

Запчасти Case IH 9110 (01-19) - SEAT AND SUSPENSION, MECHANICAL SEAT (10) - CAB

1

60-2286T1

SPACER

- seat, Serial Range: mount-floorboard

4шт.

2

19-82

LOCK NUT

- lock, 1/2 UNC G-B

4шт.

3

40-1090

CAPSCREW,Hex, M8 x 1.25 x 20mm, Gr 8.8

M8 x 1.25 x 20 MM

4шт.

4

60-4022T1

MOUNTING PARTS

MOUNT - seat

1шт.

5

60-5946T91

SEAT

ASSEMBLY - mechanical (Deluxe cab, with gray cloth upholstery) (See the following 5 figures)

1шт.

603452T91

SEAT ASSEMBLY - mechanical (Deluxe cab, with tan cloth upholstery) (See the following 5 figures)

1шт.

60-5802T91

SEAT ASSY.

SEAT ASSEMBLY - mechanical (ROPS only cab, vinyl upholstery) (See the following 5 figures)

1шт.

6

19-463

WASHER,1/2", SAE

- flat, 1/2

4шт.
