(10-20) - PTO CLUTCH VALVE ASSEMBLY

Запчасти Case IH 9110 (10-20) - PTO CLUTCH VALVE ASSEMBLY Options & Miscellaneous

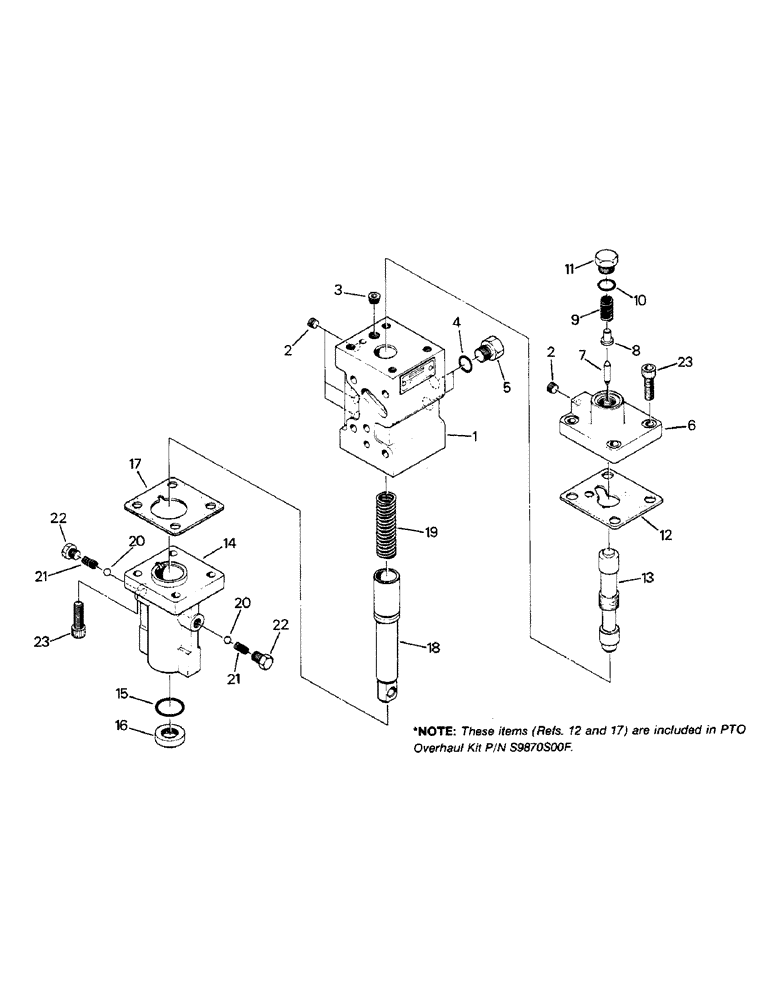

Схема запчастей Case IH 9110 - (10-20) - PTO CLUTCH VALVE ASSEMBLY Options & Miscellaneous
2
1
4
23
18
7
12
15
20
11
2
22
8
21
17
10
13
22
21
16
6
19
14
23
5
20
9
3
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

S9500S00F

VALVE

PTO CONTROL VALVE ASSEMBLY, Includes: Ref. 1 - 23

1шт.

1

S9580S00F

BODY

- modulator

1шт.

2

S9720S00F

PLUG

- pipe

4шт.

3

S9730S00F

PLUG

- orifice

1шт.

4

S1320S00F

O-RING

- plug

2шт.

5

S3190S00F

PLUG - o-ring (Includes ref. 4)

2шт.

6

S9610S00F

COVER

- valve

1шт.

7

S9620S00F

PISTON

SPOOL - reducing

1шт.

8

S9640S00F

PIN

1шт.

9

S9650S00F

SPRING

- compression

1шт.

10

S9660S00F

GASKET

O-RING - plug

1шт.

11

S9670S00F

PLUG

- o-ring

1шт.

12

S9600S00F

GASKET

- cover

1шт.

These Refs. (Refs. 12 and 17) are included in PTO Overhaul Kit P/N S9870S00F.

1шт.

13

S9590S00F

PISTON

SPOOL - modulator

1шт.

14

S9550S00F

CAP

COVER - control stem

1шт.

15

S9540S00F

GASKET

O-RING - seal

1шт.

16

S9530S00F

SEAL

- control stem

1шт.

17

S9570S00F

GASKET

- cover

1шт.

These Refs. (Refs. 12 and 17) are included in PTO Overhaul Kit P/N S9870S00F.

1шт.

18

S9520S00F

STEM

- control

1шт.

19

S9560S00F

SPRING

- compression

1шт.

20

S9690S00F

BALL

- steel

2шт.

21

S9700S00F

SPRING

- compression

2шт.

22

S9710S00F

PLUG

2шт.

23

S9680S00F

SCREW

CAPSCREW

8шт.
