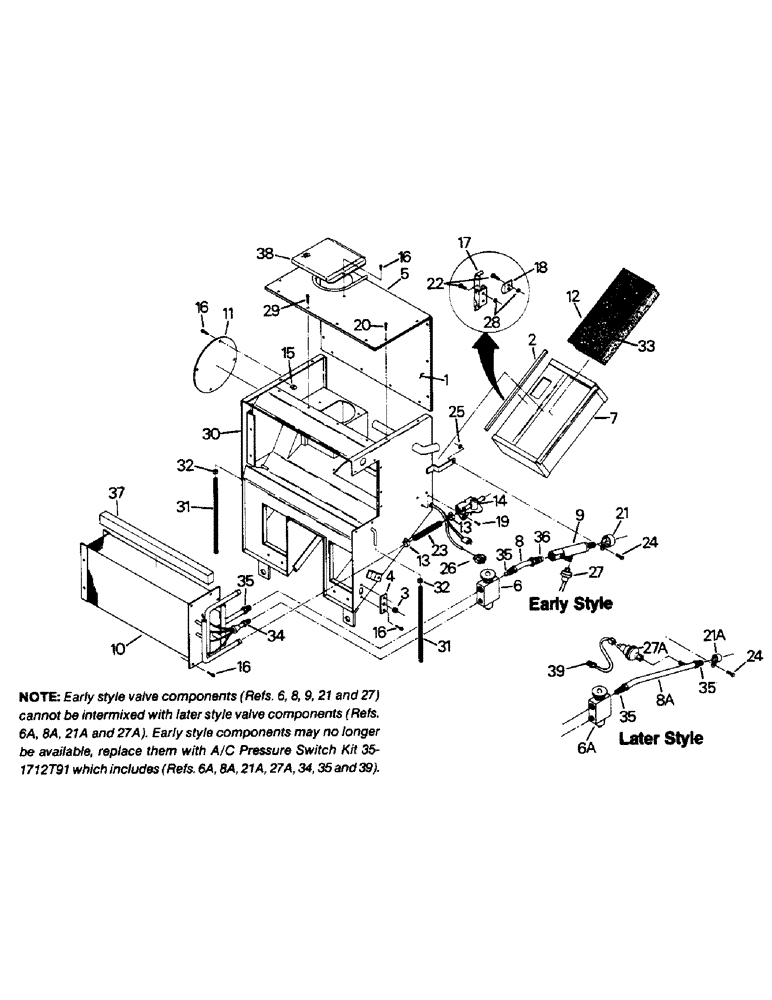

Запчасти Case IH 9110 (03-02) - AIR CONDITIONER AND HEATER MODULE ASSEMBLY, EXTERNAL PARTS (03) - Climate Control

1

60-4499T1

FOAM

- cover insulating

1шт.

2

60-4500T1

FOAM

- filter box sealing

1шт.

3

60-4666T1

GROMMET

- actuator rod

1шт.

4

60-4768T1

LARGE PLATE

PLATE - actuator rod adjustment

1шт.

5

60-5065T1

COVER

- module (60-4634T1)

1шт.

Old part can be used on all tractors, new part should be used when stock is depleted.

1шт.

6

60-4087T1

VALVE

- thermal expansion (Early style)

1шт.

Early style valve components (Refs. 6, 8, 9, 21 and 27) cannot be intermixed with later style valve components (Refs. 6A, 8A, 21A and 27A). Early style components may no longer be available, replace them with A/C Pressure Switch Kit 35-1712T91 which includes (Refs. 6A, 8A, 21A, 27A, 34, 35 and 39).

1шт.

6a

60-5880T1

VALVE

- thermal expansion (Later style)

1шт.

Early style valve components (Refs. 6, 8, 9, 21 and 27) cannot be intermixed with later style valve components (Refs. 6A, 8A, 21A and 27A). Early style components may no longer be available, replace them with A/C Pressure Switch Kit 35-1712T91 which includes (Refs. 6A, 8A, 21A, 27A, 34, 35 and 39).

1шт.

7

60-4615T1

BOX

- filter housing

1шт.

8

60-4536T1

ADAPTER

- valve (Early style)

1шт.

Early style valve components (Refs. 6, 8, 9, 21 and 27) cannot be intermixed with later style valve components (Refs. 6A, 8A, 21A and 27A). Early style components may no longer be available, replace them with A/C Pressure Switch Kit 35-1712T91 which includes (Refs. 6A, 8A, 21A, 27A, 34, 35 and 39).

1шт.

8a

60-5879T1

TUBE,0.57" ID, 0.625" OD, 9.4, 1.85" Length

(Later style)

1шт.

Early style valve components (Refs. 6, 8, 9, 21 and 27) cannot be intermixed with later style valve components (Refs. 6A, 8A, 21A and 27A). Early style components may no longer be available, replace them with A/C Pressure Switch Kit 35-1712T91 which includes (Refs. 6A, 8A, 21A, 27A, 34, 35 and 39).

1шт.

9

60-4088T1

VALVE

- suction throttling (Early style only)

1шт.

Early style valve components (Refs. 6, 8, 9, 21 and 27) cannot be intermixed with later style valve components (Refs. 6A, 8A, 21A and 27A). Early style components may no longer be available, replace them with A/C Pressure Switch Kit 35-1712T91 which includes (Refs. 6A, 8A, 21A, 27A, 34, 35 and 39).

1шт.

10

60-4042T1

COIL

- heater/evaporator

1шт.

11

60-3889T1

COVER

- blower motor

1шт.

12

60-4452T1

FILTER

1шт.

13

25-285

SQUARE NUT,Sq, 5/16"-18

CLAMP - hose, 1/2 x 7/8 inch

2шт.

14

60-2392T1

DRAIN VALVE

VALVE - shut off

1шт.

15

19-6157

STEEL SHEET NUT

NUT - clip, U-type

14шт.

16

9419320

SELF-TAP SCREW,Hex Wash Hd, #10 x 3/8"

TAPPING SCREW, no. 10 UNS x 3/8

19шт.

17

60-4640T1

LATCH

- filter box

1шт.

18

60-4641T1

LATCH

KEEPER - latch

1шт.

19

163-45

SCREW,Hex, #10 - 24 x 1/2", Gr 5

MACHINE SCREW, no. 10 UNC x 1/2

3шт.

20

9419322

SELF-TAP SCREW,Hex Wash Hd, #10 x 3/4"

TAPPING SCREW, no. 10 UNS x 3/4

14шт.

21

31-1348

CLAMP

- STV valve (Early style)

1шт.

Early style valve components (Refs. 6, 8, 9, 21 and 27) cannot be intermixed with later style valve components (Refs. 6A, 8A, 21A and 27A). Early style components may no longer be available, replace them with A/C Pressure Switch Kit 35-1712T91 which includes (Refs. 6A, 8A, 21A, 27A, 34, 35 and 39).

1шт.

21a

31-2488

CLAMP

- tube (Later style)

1шт.

Early style valve components (Refs. 6, 8, 9, 21 and 27) cannot be intermixed with later style valve components (Refs. 6A, 8A, 21A and 27A). Early style components may no longer be available, replace them with A/C Pressure Switch Kit 35-1712T91 which includes (Refs. 6A, 8A, 21A, 27A, 34, 35 and 39).

1шт.

22

19-5422

SCREW,Truss Hd, #8 - 32 x 3/4"

MACHINE SCREW, no. 8 UNC x 3/4

3шт.

23

31-2452

HOSE,0.63" ID x 5.00"

Core to Valve 0.63" ID x 5.00"

1шт.

24

19-16

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

CAPSCREW, 3/8 UNC x 3/4 G-5

1шт.

25

19-78

SPECIAL NUT,3/8"-16, G5

3/8 UNC G-B

1шт.

26

20-2376T1

HARNESS

- motor (20-1977T1)

1шт.

Old part must not be used in this area only. Is OK elsewhere when shown.

1шт.

27

60-4223T1

SWITCH

- pressure (Early style)

1шт.

Early style valve components (Refs. 6, 8, 9, 21 and 27) cannot be intermixed with later style valve components (Refs. 6A, 8A, 21A and 27A). Early style components may no longer be available, replace them with A/C Pressure Switch Kit 35-1712T91 which includes (Refs. 6A, 8A, 21A, 27A, 34, 35 and 39).

1шт.

27a

60-5881T1

PRESSURE SWITCH

SWITCH - pressure (Later style)

1шт.

Early style valve components (Refs. 6, 8, 9, 21 and 27) cannot be intermixed with later style valve components (Refs. 6A, 8A, 21A and 27A). Early style components may no longer be available, replace them with A/C Pressure Switch Kit 35-1712T91 which includes (Refs. 6A, 8A, 21A, 27A, 34, 35 and 39).

1шт.

28

193-1002

NUT,Keps, #8 - 32, w/ Ext Tooth LW

- keps, no. 8 UNC

3шт.

29

276-1478

SELF-TAP SCREW,Hex Hd, 1/4" x 1/2"

TAPPING SCREW, 1/4 UNC x 1/2

4шт.

30

60-4456T3

HOUSING

- module (60-4456T2)

1шт.

Old part can be used on all tractors, new part should be used when stock is depleted.

1шт.

31

31-1208

HOSE,0.38" ID x 12.00"

drain 0.38" ID x 12.00"

2шт.

32

32-29

HOSE CLAMP

CLAMP - hose, 7/16 x 3/4

2шт.

33

60-4948T1

SUPPORT

- filter

1шт.

34

31-1808

O-RING

O-RING - hose

1шт.

35

31-1809

O-RING

- hose

3шт.

36

31-1810

O-RING,1.78mm Thk x 17mm ID

- hose (Early style only)

1шт.

37

60-4727T1

FOAM

- coil sealing

1шт.

38

60-5796T1

SCREEN

- filter (Later models only)

1шт.

39

20-2493T1

HARNESS

- pressure switch (Later style only)

1шт.

Early style valve components (Refs. 6, 8, 9, 21 and 27) cannot be intermixed with later style valve components (Refs. 6A, 8A, 21A and 27A). Early style components may no longer be available, replace them with A/C Pressure Switch Kit 35-1712T91 which includes (Refs. 6A, 8A, 21A, 27A, 34, 35 and 39).

1шт.
