(04-14) - MANIFOLDS, 6T-830 ENGINE, SERIAL NUMBER 17900567 AND AFTER, EXHAUST

Запчасти Case IH 9110 (04-14) - MANIFOLDS, 6T-830 ENGINE, SERIAL NUMBER 17900567 AND AFTER, EXHAUST (04) - Drive Train

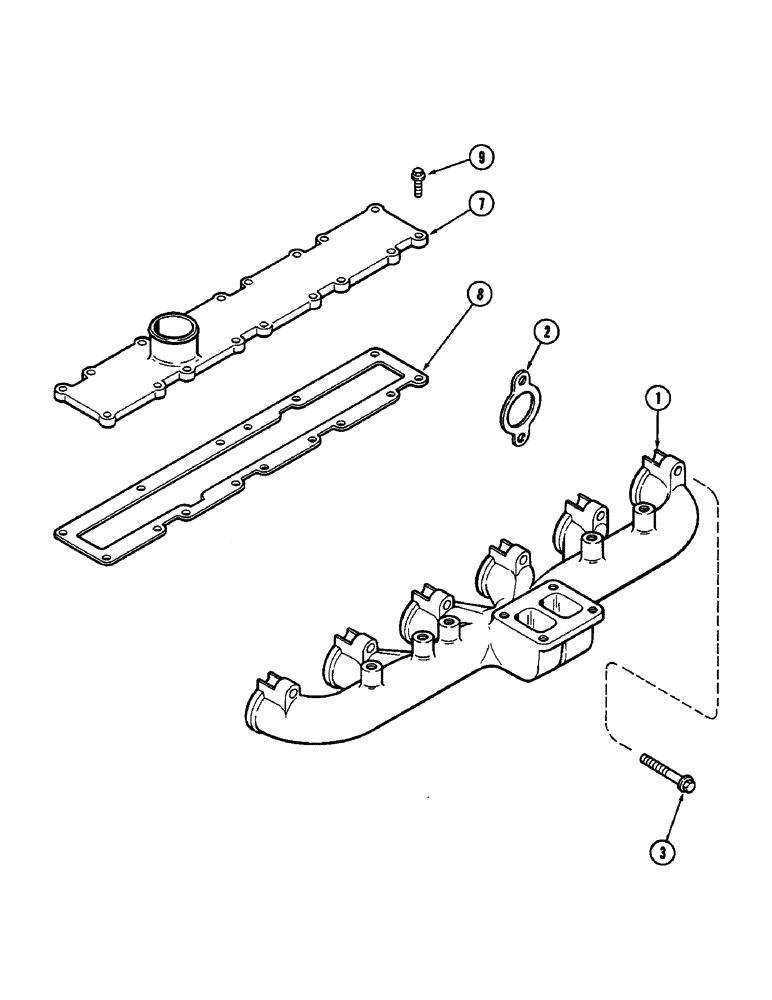

Схема запчастей Case IH 9110 - (04-14) - MANIFOLDS, 6T-830 ENGINE, SERIAL NUMBER 17900567 AND AFTER, EXHAUST (04) - Drive Train
8
1
9
7
2
3
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

J906720

MANIFOLD

- exhaust

1шт.

2

J906719

MANIFOLD GASKET

- exhaust manifold

1шт.

3

J904446

FLANGE BOLT,Hex, M10 x 70mm, Cl 10.9

BOLT - hex flange, M10 x 70 MM

12шт.

7

J906737

COVER ASSY

COVER - manifold, intake

1шт.

8

J910779

MANIFOLD GASKET

- mounting, intake

1шт.

9

J904341

BOLT,M6 x 1 x 35mm, Cl 8.8

- hex flange, M8 x 26 MM, intake

18шт.

Выбрано товаров: 6
